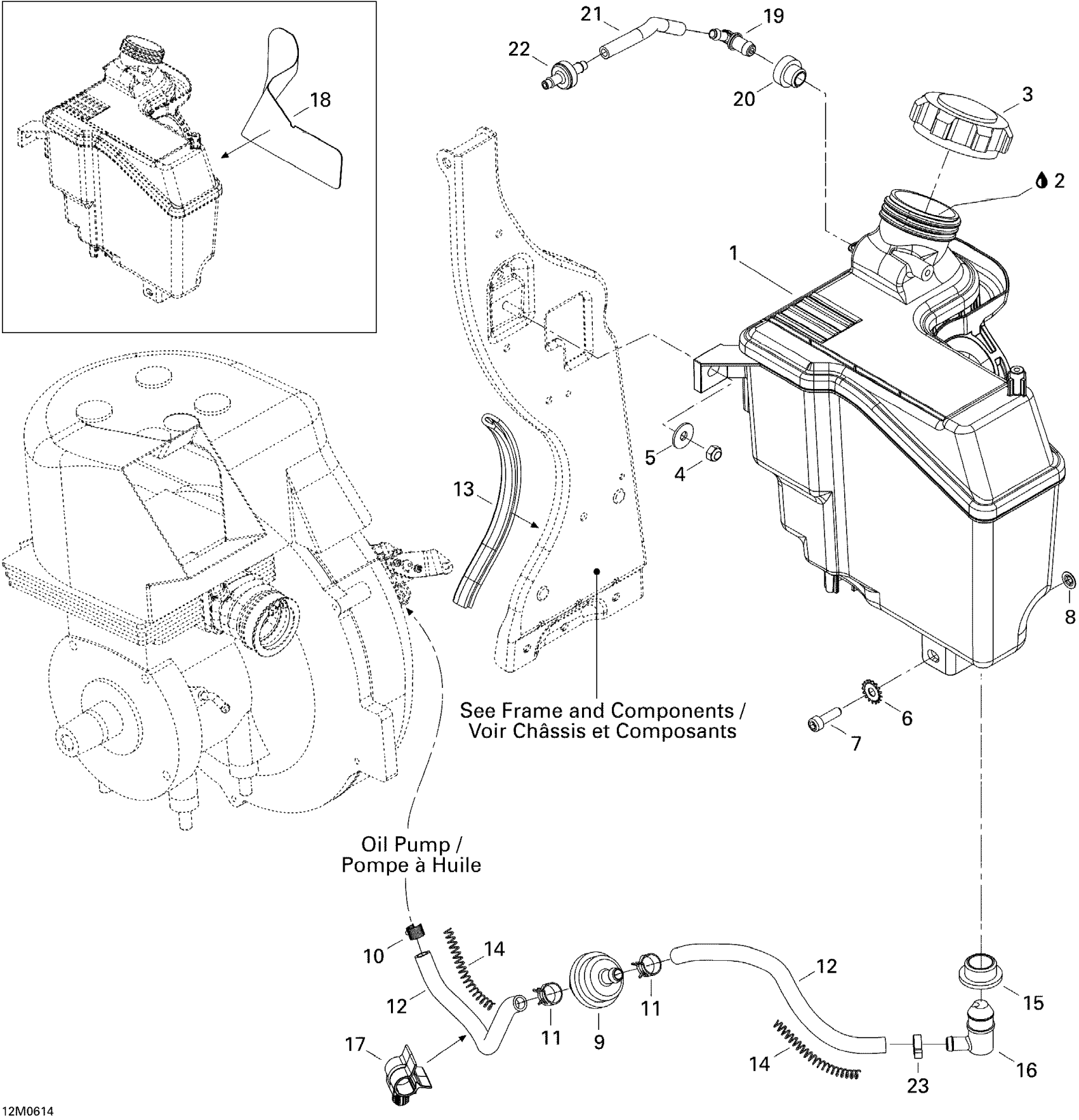

Ski-Doo Freestyle 300F, 2006 Oil System Diagram

#

Description
Price

1

INJECTION OIL TANK - Call your local BRP dealership

519000073

Unavailable

2

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

2

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

2

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Elastic Stop Nut M6

232561414

$1.55

5

Flat Washer

250200082

$0.35

6

Lock Washer Serrated M6

250200041

$0.92

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Push Nut

732610072

$1.72

9

Filter

414536500

$3.25

10

Spring Clamp

414420700

$0.68

11

Spring Clamp

414415200

$0.83

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

13

Tubing 10 MM 1000MM Long

219704407

$2.20

14

SPRING - Call your local BRP dealership

519000125

Unavailable

15

Insulating Ring

570023000

$4.62

16

Elbow Fitting 90°

519000124

Unavailable

17

Hose Retainer

275500528

Unavailable

18

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

19

Male Connector

414580700

$3.38

20

Grommet

513032908

$8.74

21

Polyurethane Hose 10000Mm Long

219704410

$46.12

22

Check Valve

275500398

$8.57

23

Oetiker Clamp

293650042

$1.40
