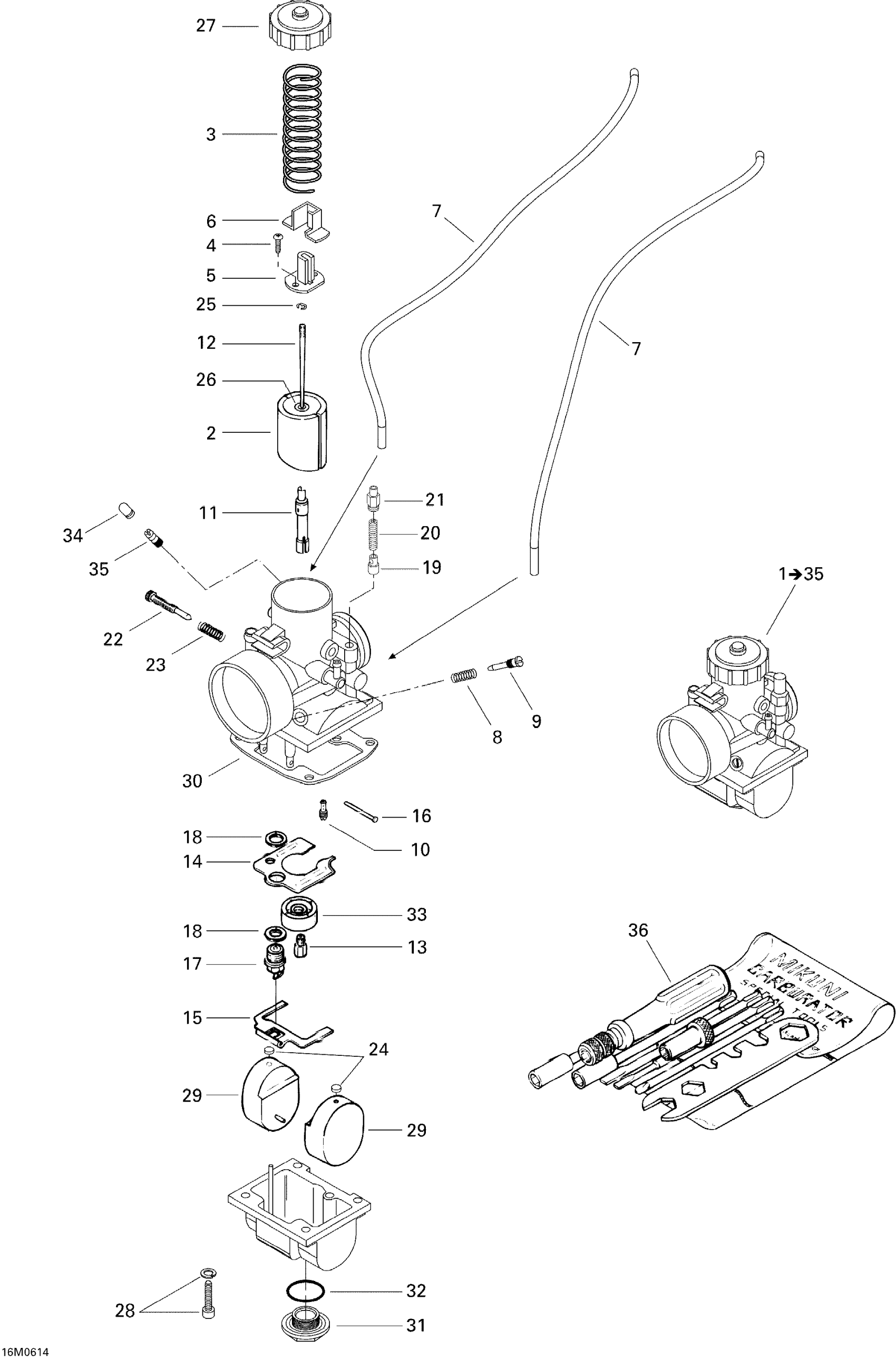

Ski-Doo Freestyle 300F, 2006 02- Carburetor Diagram

#

Description
Price

1

CARBURETOR VM 34-618 - Call your local BRP dealership

403138768

Unavailable

2

Piston Valve 2.5

404128400

$127.49

3

Spring

404154800

$23.99

4

Screw With Washer

404121300

$4.14

5

Packing

404161987

$15.35

6

Cover

404122100

$19.49

7

Hose

404162084

Unavailable

8

SPRING - Call your local BRP dealership

404139800

Unavailable

9

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

10

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

NEEDLE JET J8-6DH04 - Call your local BRP dealership

404101900

Unavailable

13

Main Jet MJ 200

404112300

$5.21

14

BAFFLE - Call your local BRP dealership

404109600

Unavailable

15

Float Lever

404107600

$22.99

16

Lever Pin

404103300

$6.27

17

Needle Valve 1.2

404147500

$42.49

18

Seat Washer

404101600

$3.29

19

Plunger Ass'y | MAG Side

404161986

$19.49

20

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

21

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

22

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

23

Spring

404101700

$4.14

24

Cap

404105800

$6.38

25

E-Ring

404152400

$7.27

26

Packing

404117000

$3.29

27

Cover

404103700

$31.99

28

Screw With Lock Washer

404102000

$3.18

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Gasket | Includes 1900a to 1900am

404104200

$6.38

31

Drain Plug Screw

404107400

$22.99

32

O-Ring

404107300

$9.06

33

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

34

Cap

404156600

$17.08

35

Nipple

404153400

$12.16

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
