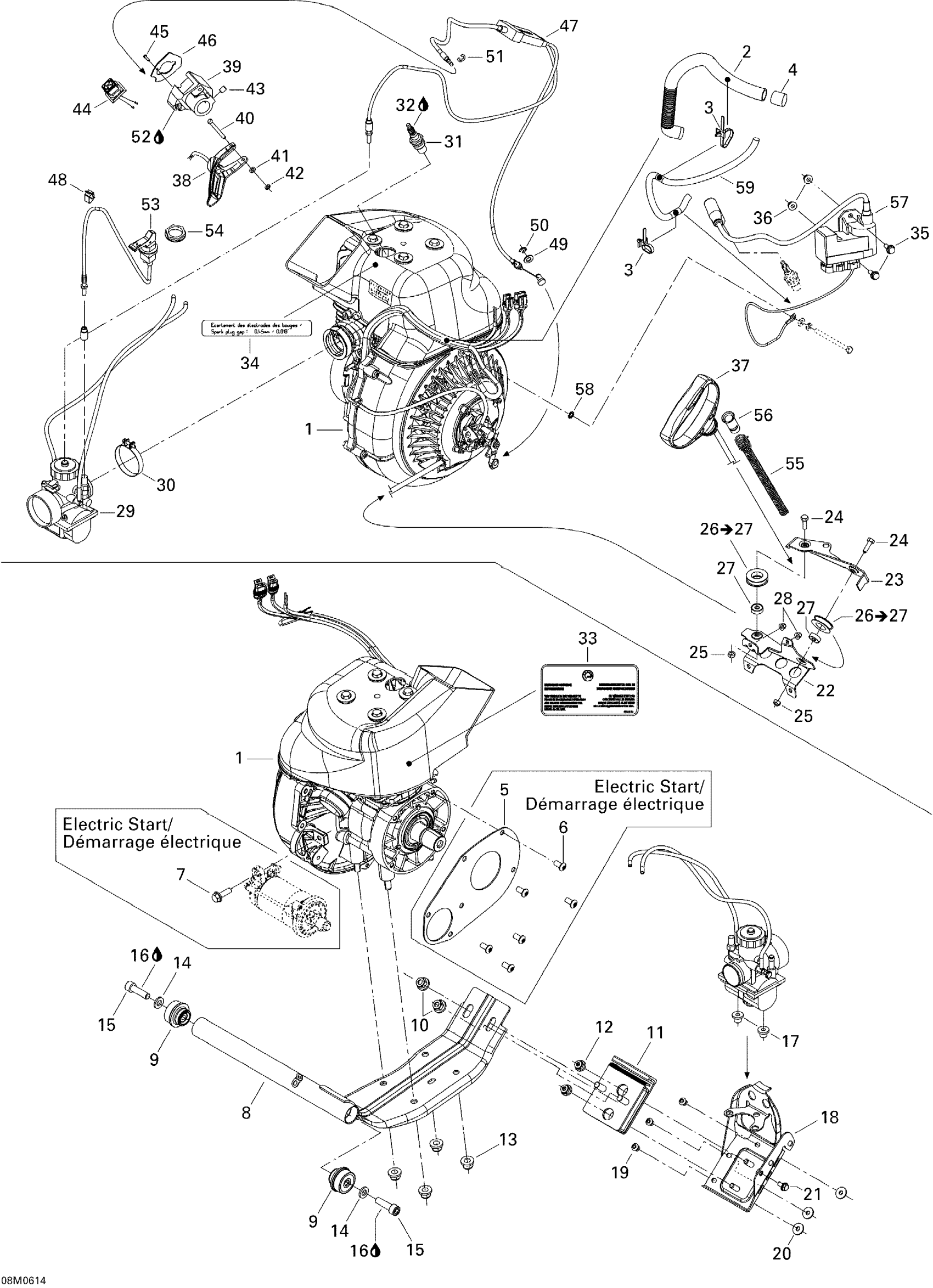

Ski-Doo Freestyle 300F, 2006 Engine And Engine Support Diagram

#

Description
Price

1

Engine 277

400206004

Unavailable

2

Tubing 16 Mm 1000Mm Long

219704408

$7.15

3

Tie-Rap 173 mm

293750009

$0.97

4

Tape

293740005

Unavailable

5

Starter Support

512059922

Unavailable

6

Torx Screw M8 X 16

250000751

$5.33

7

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

8

ENGINE SUPPORT - Call your local BRP dealership

512059901

Unavailable

9

Rubber Mount

512059691

$43.25

10

Hex. Flange Elastic Nut M10

233201414

$1.45

11

Rubber Mount

512059958

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

$1.31

13

Hex. Flange Elastic Nut M10

233201414

$1.45

14

WASHER - Call your local BRP dealership

503183500

Unavailable

15

Socket Screw M10 X 35

205003544

$1.60

16

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

17

Grommet

293720029

$1.30

18

PLATE - Call your local BRP dealership

512059918

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

22

PULLEY SUPPORT - Call your local BRP dealership

512060010

Unavailable

23

REINFORCEMENT, GUARD - Call your local BRP dealership

512060032

Unavailable

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.72

25

Elastic Stop Nut M6

232561414

$1.78

26

PULLEY ASS'Y - Call your local BRP dealership | Includes 25 to 26

512060184

Unavailable

27

BALL BEARING - Call your local BRP dealership

512060151

Unavailable

28

Hex. Flange Elastic Nut M5

233251414

$1.91

29

CARBURETOR VM 34-618 - Call your local BRP dealership

403138768

Unavailable

30

Gemi Clamp | Not Shown

512059834

$10.21

31

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.63

32

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

33

Not Available As Spare Parts

XXX

Unavailable

34

Spark Plug Decal

516000986

Unavailable

35

Hex. Flange Screw M6 X 20

207662044

$1.91

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

Starter Grip

572084400

$14.10

38

Handle Ass'y

512060214

$114.15

39

Throttle Housing

512060603

$10.25

40

Lever Pin

414438700

$10.81

41

Flat Washer M5, Stainless

234051600

$0.73

42

Circlip | Model-RS

414439000

$4.01

43

Socket Set Screw M8 X 10

414440800

$3.88

44

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

45

SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership

250000022

Unavailable

46

Plate

512060390

$9.03

47

THROTTLE CABLE - Call your local BRP dealership

512059907

Unavailable

48

Clip

414227300

$1.40

49

Flat Washer 8 mm, Nylon

234081100

$1.15

50

Circlip

414753500

$0.67

51

Circlip

414274500

$0.85

52

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

53

CHOKE CABLE - Call your local BRP dealership

512060005

Unavailable

54

Plastic Nut

512060671

$0.96

55

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

56

TUBE - Call your local BRP dealership

512059536

Unavailable

57

Calibrated Module | Includes 52 to 55

512060006

$419.99

58

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

59

Tubing 6 Mm 3000Mm Long

219704425

$12.75
