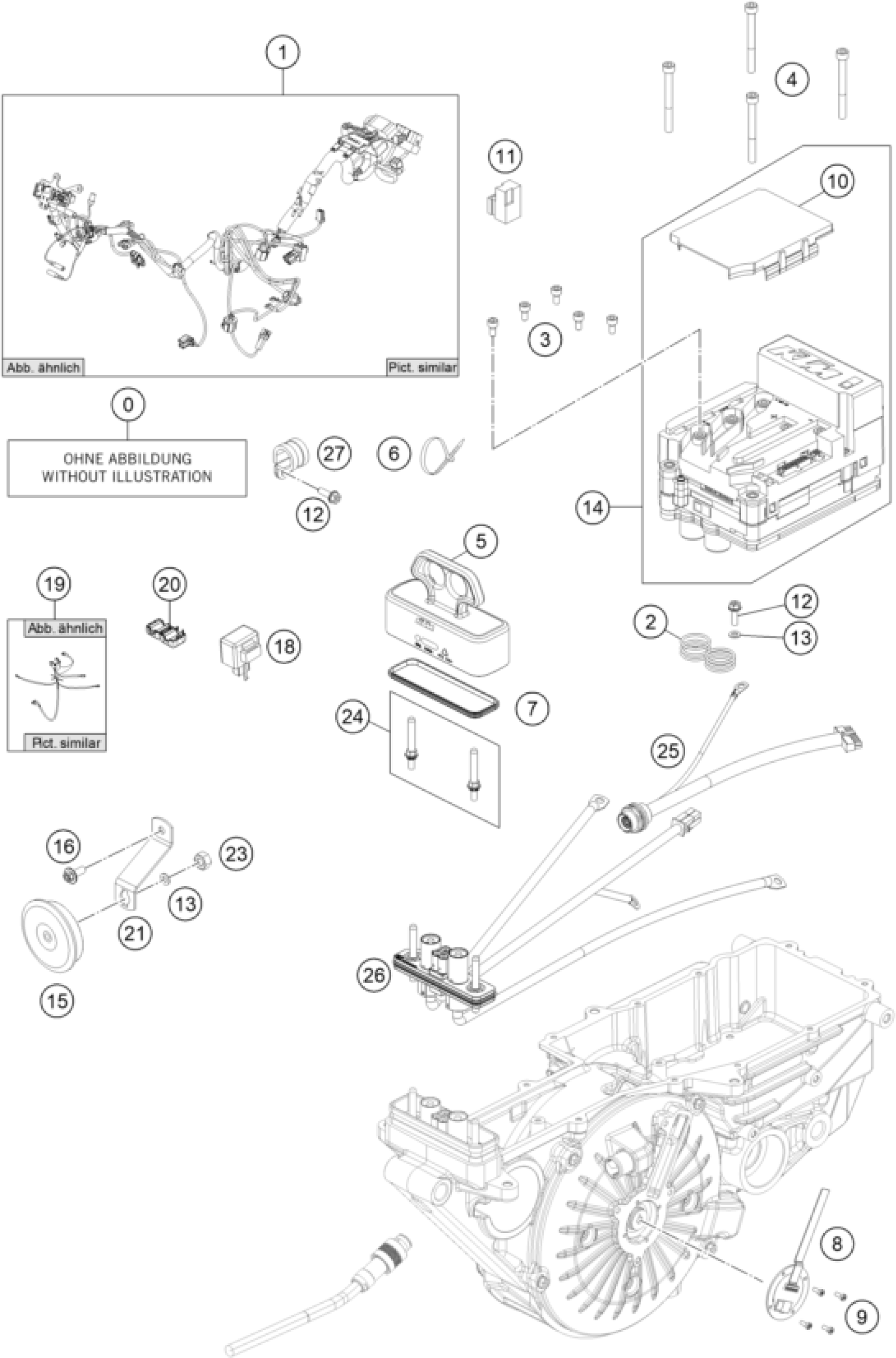

KTM FREERIDE E-XC 2017 WIRING HARNESS Diagram

#

Description
Price

6

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

25

ENGINE WIRE HARNESS

70045070000

Unavailable

26

WIRING HARNESS ECU

70045073000

$316.49

27

CLAMP RSGU 15/12

49007439000

$5.23

16

HH collar screw M6x15 TX30

0024060156

$3.08

18

FLASHER UNIT LED 6,25W

76011030000

$26.83

19

FLASHER HARNESS

72511081000

Unavailable

20

SNAP FERRITE

70011010000

$20.66

21

HORN BRACKET EXC 08

78011061000

$5.23

23

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

6

Cable tie 200/4.6mm black

44011076200

Unavailable

6

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

7

SEAL HV-PLUG

70045002100

$13.83

8

SPEED SENSOR

70045061000

$263.85

9

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

$3.08

10

COVER SMALL ENGINE ELECTRONIC

70045160050

$27.95

11

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

12

HH collar screw M5x16 TX30

0025050166

$2.05

13

WASHER DIN0125-A 5,3

0125050003

$1.49

14

ENGINE ELECTRONIC ASSY

70045160100

$4,581.05

24

CONTACT PIN (SET)

70045073050

$54.50

0

WIRING HARNESS LIGHT

70011076000

Unavailable

1

WIRING HARNESS CPL. E-XC

70011075144

Unavailable

2

o-ring 22.00X2.00 NBR70

0770220020

$2.05

3

AH SCREW DIN 0912 M5X10

0912050107

$1.49

4

HH collar screw M6x60 TX30

0025060606

$3.08

5

HV-PLUG COVER CAP

70029001005

$10.93

15

DC HORN 12V 07

50311060200

$32.44
