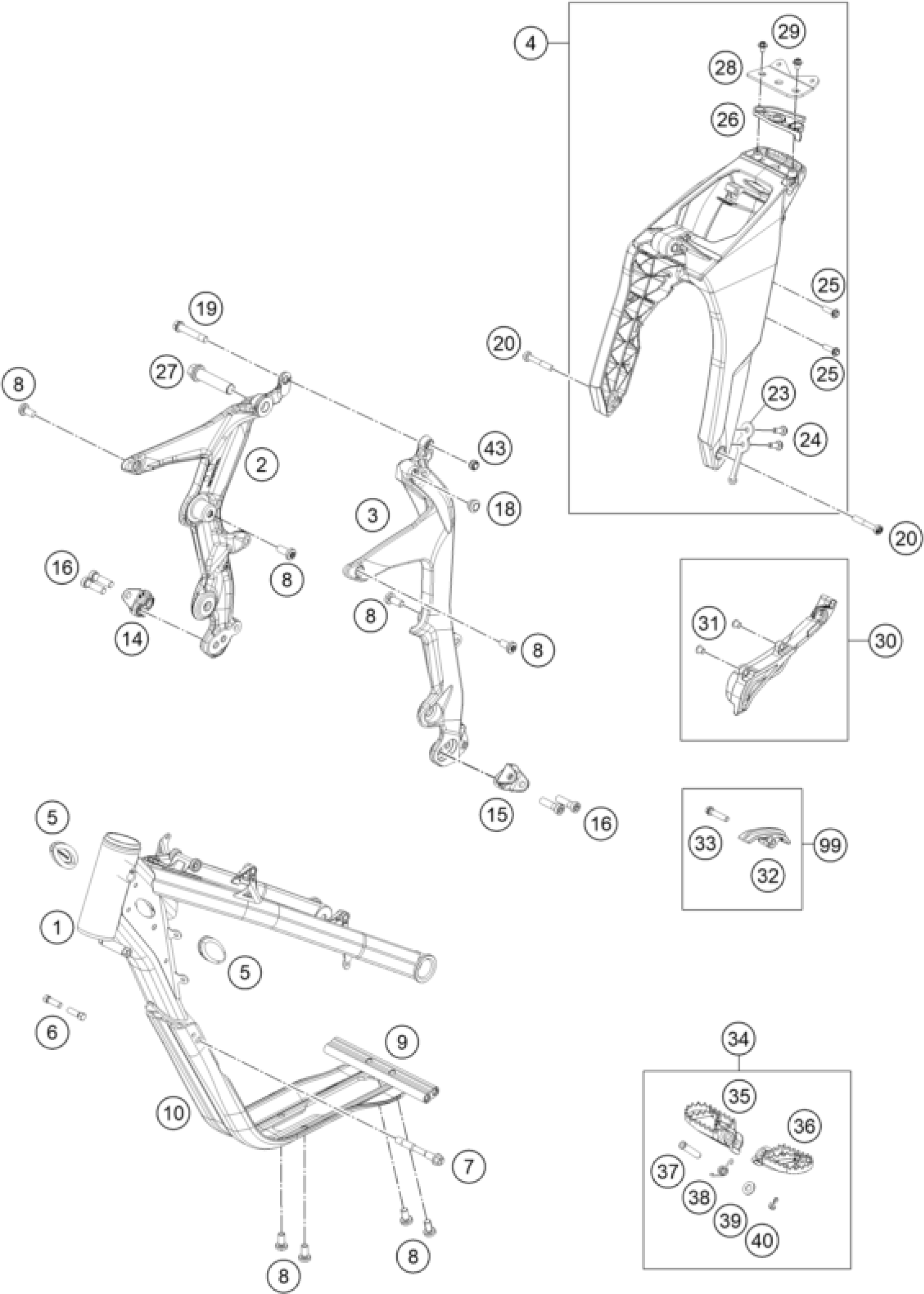

KTM FREERIDE E-XC 2017 FRAME Diagram

#

Description
Price

40

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

43

ADAPTOR NUT M10

69004095000

$5.23

99

CHAIN SLIDING KIT BELOW

70003053010

Unavailable

15

FOOTREST MOUNTING L/S '12

70003038100

$38.34

16

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

25

PLASTIC SCREW K7X25 PT1447

0016070253

$3.08

26

SEAT LOCKING MECHANISM

70007039000

$15.42

27

MONOSHOCK SCREW TOP M12X80

70004016000

$29.44

28

BRACKET QUICK LOCK

70007039050

$32.62

29

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

30

SPROCKET COVER

70003096100

$19.53

31

COLLAR BUSHING 6,3X8X13X9,5

45239060050

$5.23

32

CHAIN SLIDING PIECE BELOW CPL.

70003053000

$5.23

33

HH collar screw M8x35 TX40

0025080356

$4.11

34

FOOTREST CPL. 14

47103040033

$110.13

35

FOOTREST R/S

47103041000

$42.72

36

FOOTREST L/S

47103040000

$43.84

37

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

38

FOOTREST SPRING L/S & R/S

54603041000

$5.23

39

washer DIN 125 A 10.5

0125100003

$2.05

1

FRAME ORANGE ''700L1''

7000300100004

Unavailable

2

CONNECTION BRACKET R/S 14

70003001152

$297.98

3

CONNECTION BRACKET L. VMT

70003101051

$330.14

4

SUBFRAME CPL.

70003002033

$285.63

5

CLOSING COVER SWINGARM SM 03

58404041000

$7.00

6

AH SCREW DIN912 M8X12

0912080123

$1.49

7

ENGINE BRACKET SCREW 85 SX

47003013000

$8.41

9

CROSS PIPE

70003001060

$21.78

10

ENGINE GUARD CPL.

70003090144

$166.33

14

FOOTREST MOUNTING R/S '12

70003039100

$45.34

18

Threaded bush M12 d20

50180105

$15.51

19

HH COLLAR SCREW M10X56 WS13 08

69004094000

$5.23

20

AH collar screw M8x50 ISA45

0035080506S

$5.23

23

SIDE STAND SPRING PLATE 12

70003024050

$14.67

24

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

8

AH collar screw M10x20 ISA45

0035100209

$7.85
