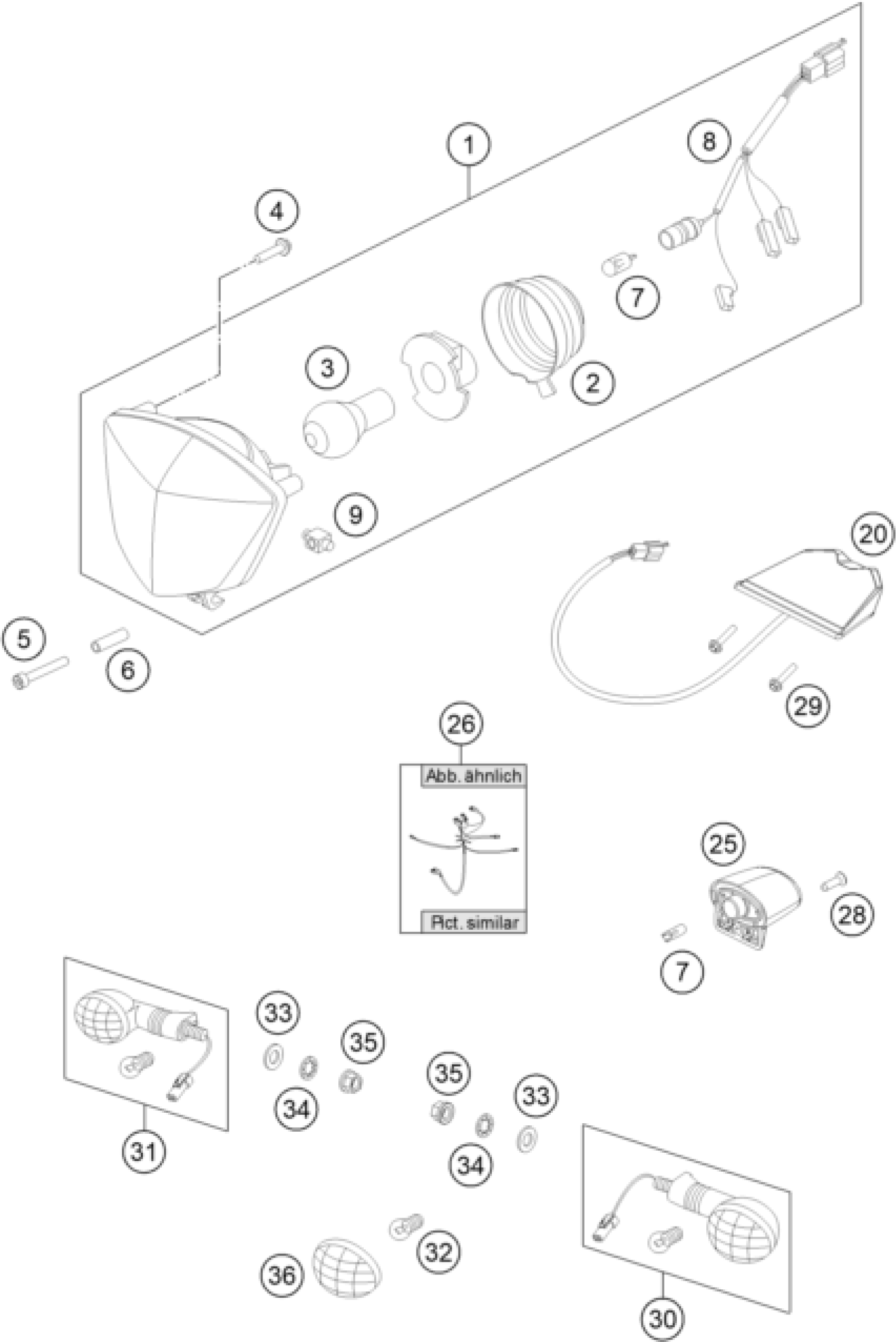

KTM FREERIDE E-XC 2015 LIGHTING SYSTEM Diagram

HEAD LIGHT

81214001000

$135.38

RUBBER CAP FOR HEAD LIGHT 05

54814001050

$10.93

BILUX-BULB 12V 35/35W BA20D

44111038000

$16.17

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

AH SCREW DIN912-M5X50 10.9

0912050503

$1.49

DIST. HOSE F. HEAD LIGHT MASK

72008008000

$2.05

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

CABLE FOR HEAD LIGHT 2005

54811001050

$14.39

INSERT FOR HEAD LIGHT SUPPORT

81208003010

$2.61

REAR LIGHT

78114040000

$121.64

LICENSE PLATE ILLUMINATION 07

75014047000

$10.37

FLASHER HARNESS

72511081000

Unavailable

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

FLASHER CPL. FR.L/S RE.R/S 09

54814025200

$37.20

FLASHER CPL. FR.R/S RE.L/S 09

54814026200

$37.20

BULB 12V 10W (BA15S)

44111015100

$3.08

washer DIN 125 A 10.5

0125100003

$2.05

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

FLASHER LENS L/S R/S 05

54814028000

$6.72
