Description

Price

1

WIRING HARNESS CPL. WK

70011075150

Unavailable

6

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

6

Cable tie 200/4.6mm black

44011076200

Unavailable

6

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

14

ENGINE ELECTRONIC ASSY

70045160100

$4,581.05

16

ENGINE WIRE HARNESS

70045070000

Unavailable

17

WIRING HARNESS ECU

70045073000

$316.49

24

CONTACT PIN (SET)

70045073050

$54.50

2

o-ring 22.00X2.00 NBR70

0770220020

$2.05

3

AH SCREW DIN 0912 M5X10

0912050107

$1.49

4

HH collar screw M6x60 TX30

0025060606

$3.08

5

HV-PLUG COVER CAP

70029001005

$10.93

7

SEAL HV-PLUG

70045002100

$13.83

8

SPEED SENSOR

70045061000

$263.85

9

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

$3.08

10

COVER SMALL ENGINE ELECTRONIC

70045160050

$27.95

12

HH collar screw M5x16 TX30

0025050166

$2.05

13

WASHER DIN0125-A 5,3

0125050003

$1.49

15

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

27

CLAMP RSGU 18/15 03

59007439000

$5.79

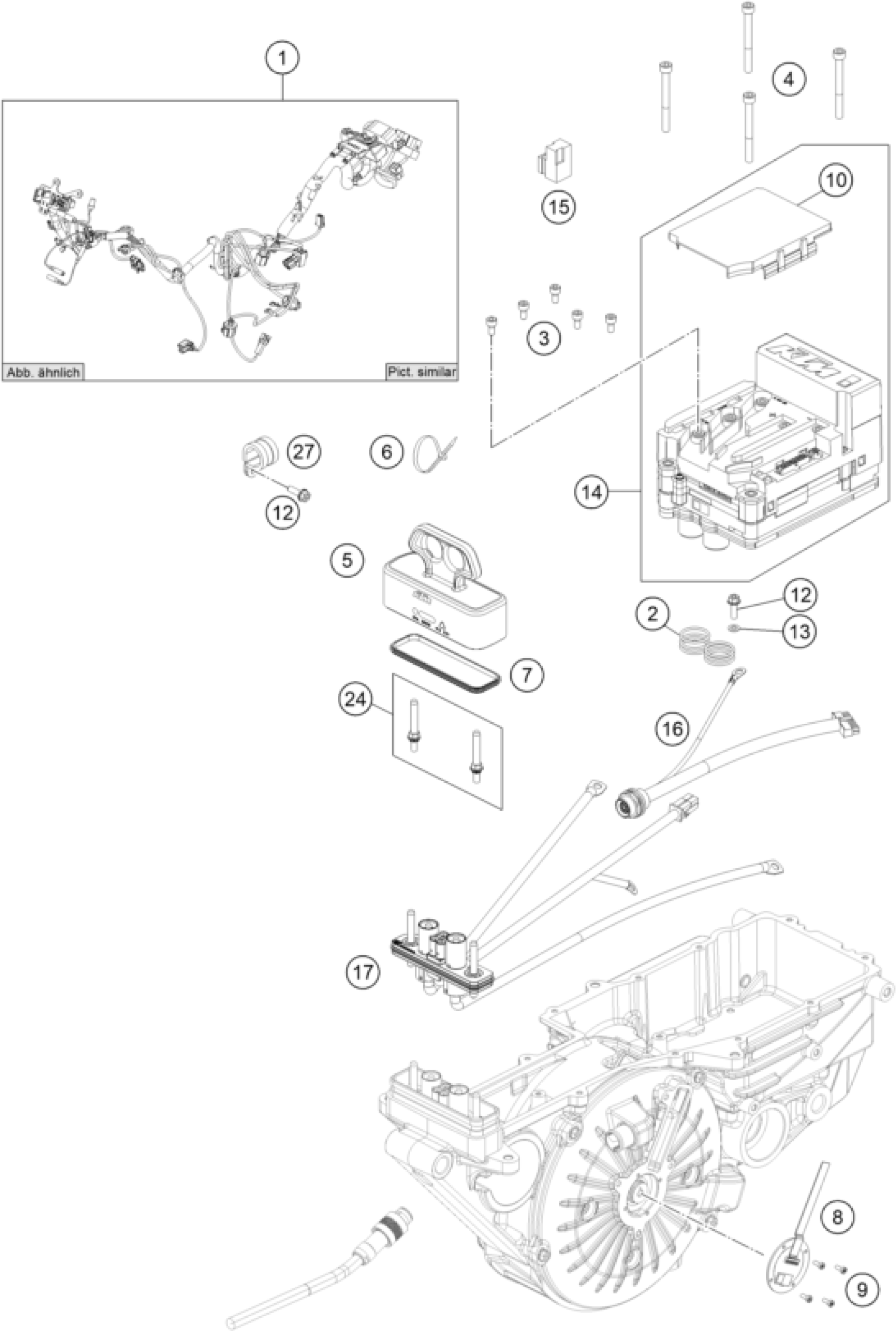

KTM FREERIDE E-SX 2015 WIRING HARNESS Diagram

WIRING HARNESS CPL. WK

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

ENGINE ELECTRONIC ASSY

ENGINE WIRE HARNESS

WIRING HARNESS ECU

CONTACT PIN (SET)

o-ring 22.00X2.00 NBR70

AH SCREW DIN 0912 M5X10

HH collar screw M6x60 TX30

HV-PLUG COVER CAP

SEAL HV-PLUG

SPEED SENSOR

CYLIND.SCREW M3X8 ISO 14580 SS

COVER SMALL ENGINE ELECTRONIC

HH collar screw M5x16 TX30

WASHER DIN0125-A 5,3

RELAY CM1A-R-12V-H80 07

CLAMP RSGU 18/15 03
