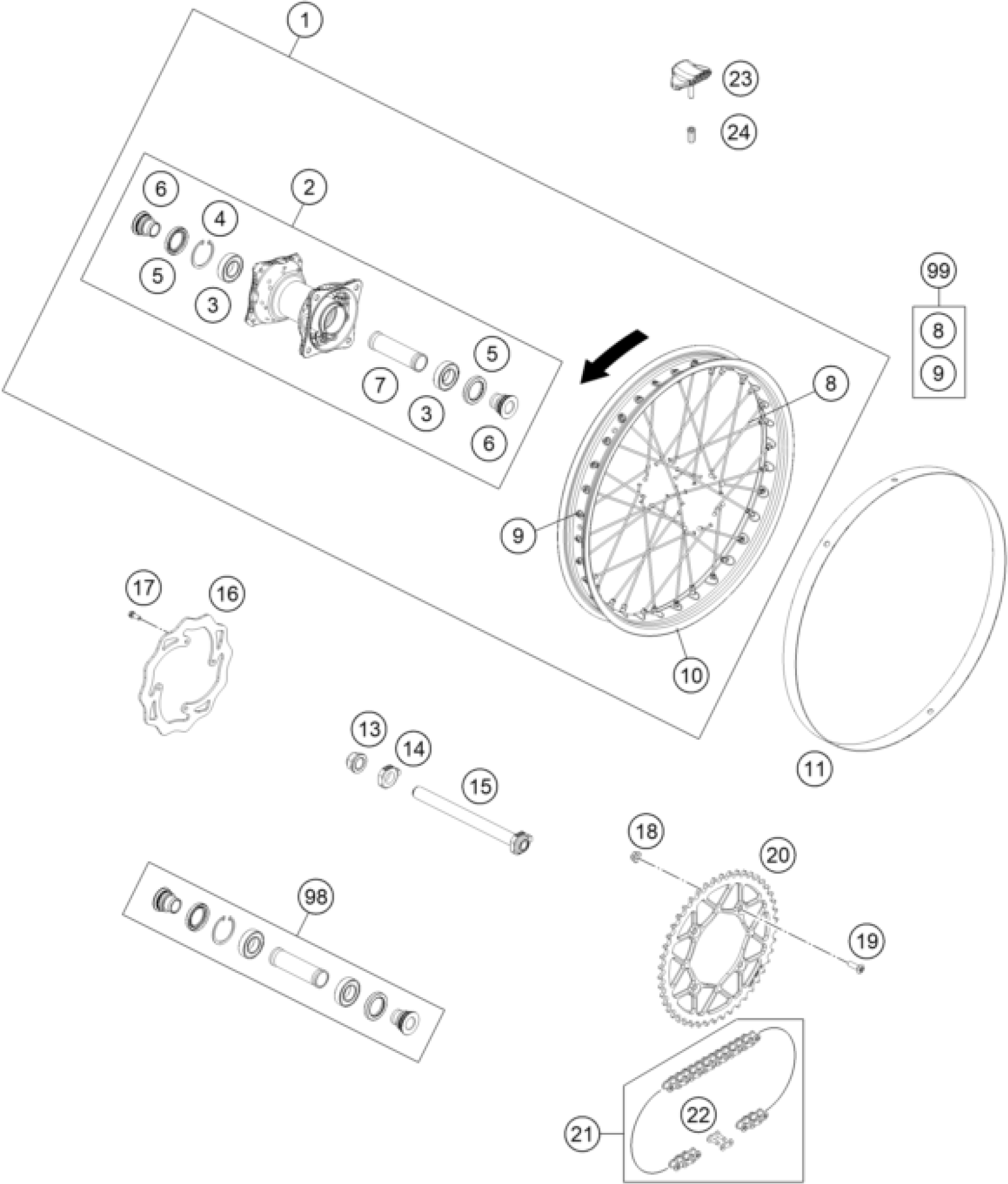

KTM FREERIDE E-SX 2015 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. BLK FREERIDE E

7001000114430

Unavailable

2

REAR WHEEL HUB CPL. 12

70010010044

$670.01

3

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

4

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

5

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

6

BUSHING FOR HUB 08

78010016000

$32.90

7

BEAR.SPACER TUBE ´12

70010011000

$26.17

8

SPOKE REAR 193 MM BLACK

7001007119330

$4.11

9

Spoke nipple M4.5 AL

77109072000

$3.08

10

RIM REAR 18X2,15-32 BLACK

7201007000030

Unavailable

11

Tube protector 18" and 19"

50310073200

$13.27

13

Hexagon nut M20x1.5

50310099000

$11.30

14

Chain tensioner right 12

70010084000

$16.07

15

WHEEL SPINDLE REAR CPL. 12

70010085044

$75.17

16

BRAKE DISC REAR

70010060000

Unavailable

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

18

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

19

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

21

CHAIN DID 118 LINKS

78010167118

Unavailable

22

CONNECTING LINK F. 78010167118

78010166000

Unavailable

20

SPROCKET 46-T BLACK

7201005104630

Unavailable

20

SPROCKET 48-T BLACK

7201005104830

$51.60

23

RIM LOCK 2,15''

78110090000

$20.56

24

NUT FOR WHEEL HOLDER

77110090050

$5.23

98

REAR WHEEL REP. KIT

70010015000

Unavailable

99

SPOKE KIT REAR '18'

00050000962

Unavailable

21

CHAIN 5/8X1/4'' MX

50310165118

$84.14

22

Connecting link for 5031016511

50310166000

$6.79
