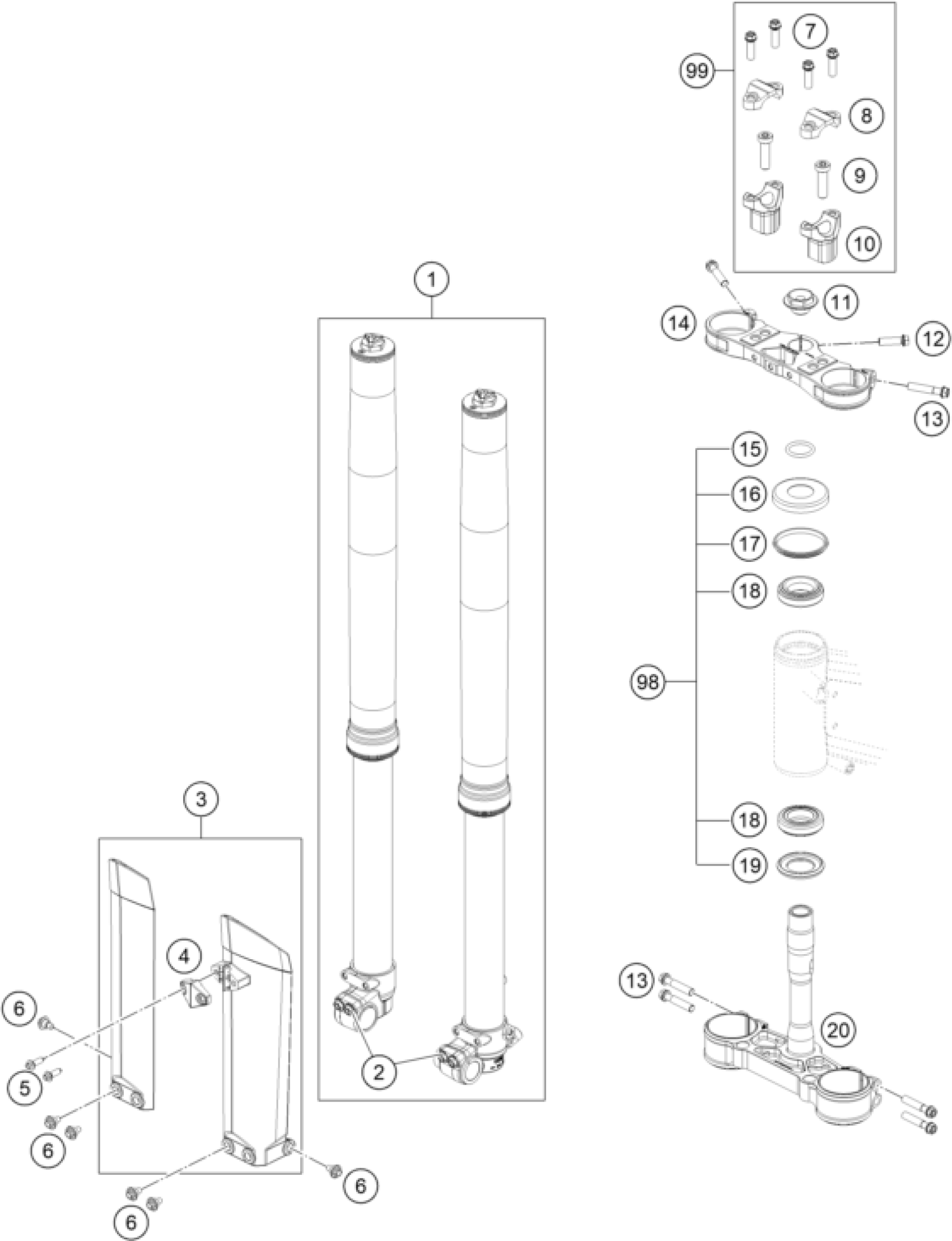

KTM FREERIDE E-SX 2015 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK FREERIDE E

05187N4101

Unavailable

2

HH collar screw M8x20

0025080206

$2.05

3

FORK PROTECTOR SET 85SX WHITE

4710109400028

$20.65

4

CLAMP FOR BRAKE HOSE

4710108500028

$13.25

5

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

6

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

7

HH collar screw M8x25

0025080256

$2.05

8

HANDLEBAR CLAMP 28MM

77201038000

$25.05

9

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

10

HANDLEB.SUPP. D=28MM H=47MM 05

59401039047

$33.56

11

AXLESCREW M20X1.5 SW17

70009082000

$9.44

12

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

13

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

14

TOP FORK PLATE BLACK

7000103402030

$280.92

15

O-RING 25X3,55 NBR70 05

0770025035

$1.49

16

STEERING HEAD COVER

78101086000

$6.07

17

STEARING HEAD GASKET TOP

54601184000

$7.10

18

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

19

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

20

BOT.TRIPLE CLAMP CPL. BL. 20MM

7000103202030

$272.07

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

99

HANDLEBAR SUPPORT KIT FREERIDE

00050000926

Unavailable
