Description

Price

3

AXLE CLAMP L/S + TUBE CPL.

43570559S1

$393.25

4

AXLE CLAMP R/S + TUBE CPL.

43570558S1

$620.36

5

OUTER TUBE WITH GUIDING RING

43570614S

Unavailable

6

Round-wire snap ring 53x2

43570099

$26.45

7

SCREW CAP M46X1,5 CPL.

43570395S1

$360.06

8

O-ring 40x2 NBR70 black

46811042

$2.05

9

ADJUSTING KNOB + SCREW

48600812S

$5.23

10

CARDRIDGE CPL.

48600870S

Unavailable

11

PISTON ROD CPL.

48600694S

Unavailable

12

TAP COMPRESSION CPL.

48600586S2

$53.01

13

O-ring 24x2 NBR70

35480320

$1.49

14

Rubber cap 35x10 NBR80

48600141

$4.11

15

GUIDE BUSHING SET

R14042

$34.03

16

Guide bushing 43x47x12

43570618

$11.68

17

Guide bushing 42x44x20

43570617

$11.40

19

REP. KIT SPACER

R14054

$17.85

23

HH collar screw M8x20

0025080206

$2.05

20

SPRING 4,6 N/MM SET

95010050S

$145.85

21

Guide bushing 12x14x10

48600430

$6.44

22

Piston ring 21x23x5

48600455

$4.50

97

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REP. KIT

R14052

Unavailable

18

GASKET SET

R513

$73.67

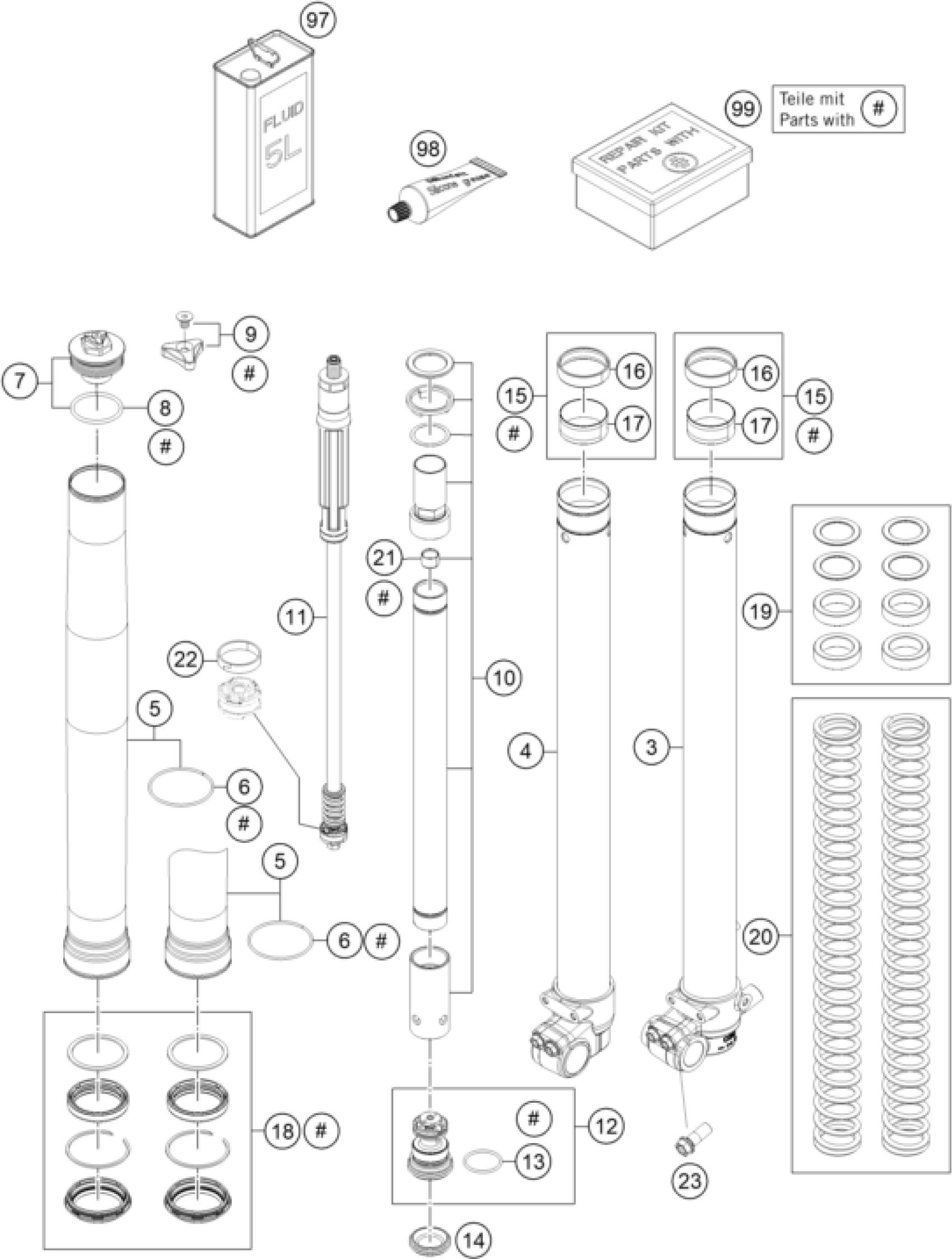

KTM FREERIDE E-SX 2014 FRONT FORK DISASSEMBLED Diagram

AXLE CLAMP L/S + TUBE CPL.

AXLE CLAMP R/S + TUBE CPL.

OUTER TUBE WITH GUIDING RING

Round-wire snap ring 53x2

SCREW CAP M46X1,5 CPL.

O-ring 40x2 NBR70 black

ADJUSTING KNOB + SCREW

CARDRIDGE CPL.

PISTON ROD CPL.

TAP COMPRESSION CPL.

O-ring 24x2 NBR70

Rubber cap 35x10 NBR80

GUIDE BUSHING SET

Guide bushing 43x47x12

Guide bushing 42x44x20

REP. KIT SPACER

HH collar screw M8x20

SPRING 4,6 N/MM SET

Guide bushing 12x14x10

Piston ring 21x23x5

Fork Fluid Viscosity 4.0 5L

SILICONE GREASE F. DUST STRI

REP. KIT

GASKET SET
