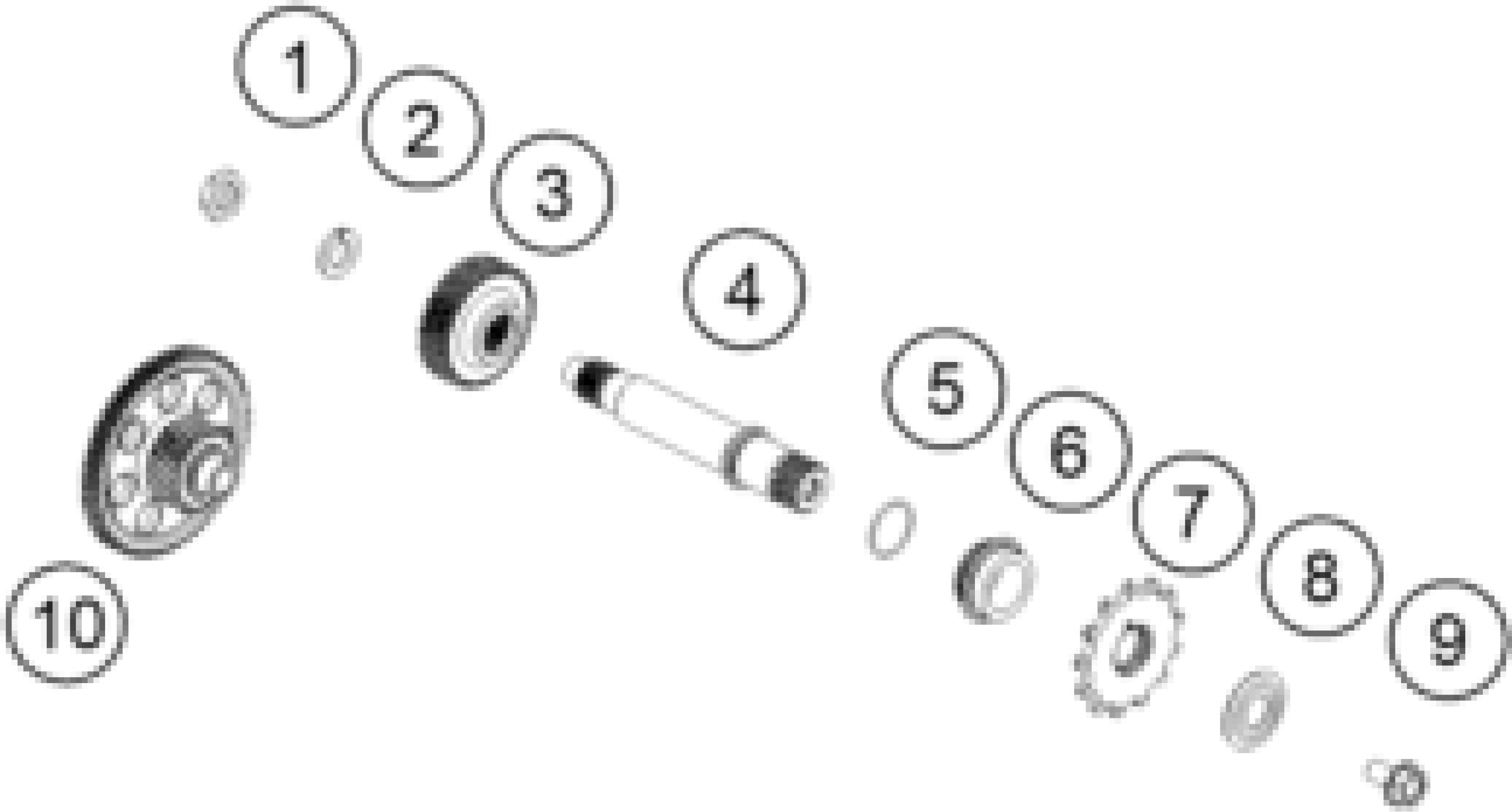

KTM FREERIDE E 660W 2025 TRANSMISSION Diagram

#

Description
Price

1

Nut, primary gear

0910001400600S

Unavailable

2

Detent edged ring M14

47230029014

$1.49

3

Countershaft gear

A13033038000

Unavailable

4

Countershaft

A13033010000

Unavailable

5

O-RING 25,12X1,78 NBR70

0770020220

$3.08

6

distance sleeve

0800002501500

Unavailable

7

Front sprocket 13 teeth

A46033029013

$30.94

8

Spring washer 17.2X40X1.5

59033034000

$2.89

9

HH COLLAR SCREW M10X18 10.9

59033029000

$1.77

10

Intermediate shaft cmpl.

A13033037000

Unavailable
