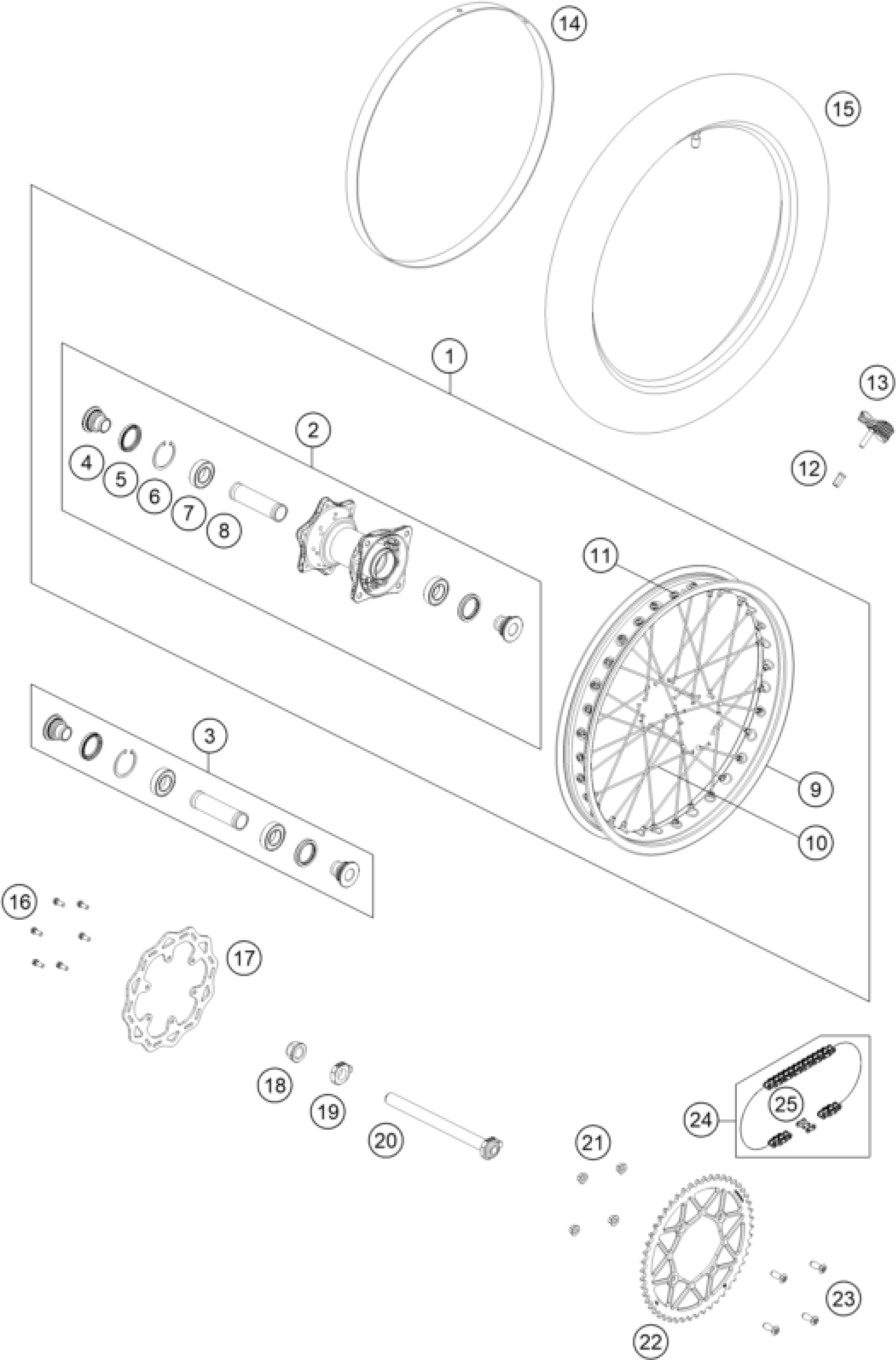

KTM FREERIDE E 660W 2025 REAR WHEEL Diagram

#

Description
Price

24

CHAIN 5/8X1/4'' MX

50310165118

$84.14

25

Connecting link for 5031016511

50310166000

$6.79

1

Rearwheel cpl. 2,15x18"

A13010001144C1

Unavailable

2

Rear wheel hub cmpl.

A41010010144

Unavailable

3

REAR WHEEL REP. KIT

A41010015000

Unavailable

4

Rear wheel spacer

0800002003300

Unavailable

5

Radial shaft seal 35X47X7 TC

0760354771

$8.69

6

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

7

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

8

BEAR.SPACER TUBE ´12

70010011000

$26.17

9

Rim 2.15x18"

A13010070000C1

Unavailable

10

SPOKE REAR 193 MM BLACK

7001007119330

$4.11

11

Spoke nipple M4.5 AL

77109072000

$3.08

12

NUT FOR WHEEL HOLDER

77110090050

$5.23

13

RIM LOCK 2,15''

78110090100

$20.56

14

Tube protector 18"

72010073000

$38.05

15

TUBE 18''

77410075000

Unavailable

16

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

17

BRAKE DISC REAR 220MM 16

79010060000

$129.12

18

Hexagon nut M20x1.5

50310099000

$11.30

19

Chain tensioner right 12

70010084000

$16.07

20

WHEEL SPINDLE REAR CPL. 12

70010085044

$75.17

21

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

22

Rear sprocket 50 teeth

72010051050C1

Unavailable

23

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08
