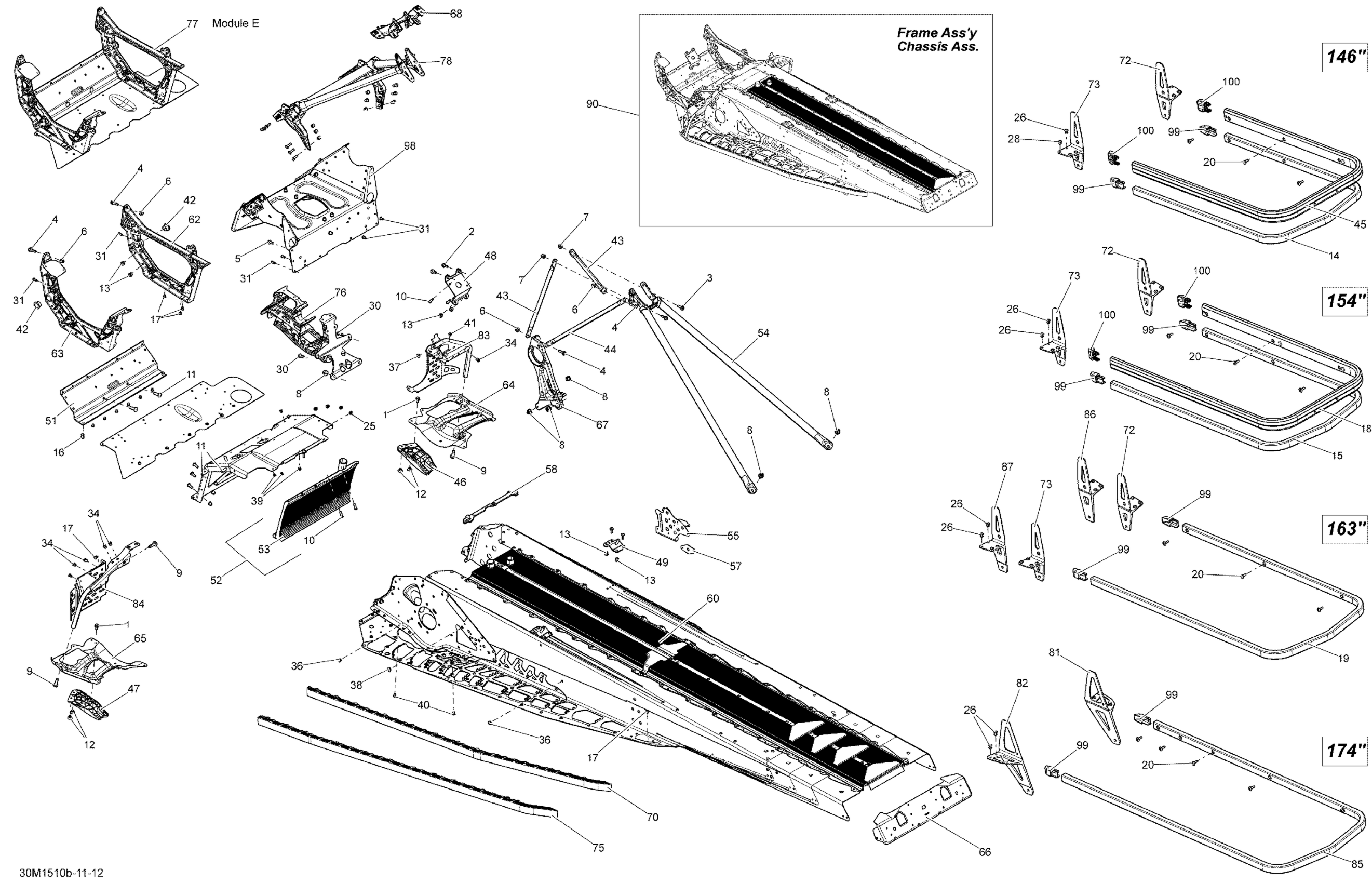

Ski-Doo Freeride 800RETEC XM-RS, 146, 2015 09- Frame 146, 154 _30M1510b Diagram

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 16

210261650

$1.67

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Elastic Nut M8

233281414

$1.47

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

Clinch Stud M6 X 20

250300027

$2.09

Clinch Stud

250300038

$4.29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hemlock Rivet, 6.5 mm

293150119

$4.29

Black Rear Bumper, 146" | Vehicle 146" North America

518326599

$121.99

Black Rear Bumper, 154" | Vehicle 154" North America

518326049

$116.49

Hemlock Rivet 6.5 mm

293150120

$7.41

Stavex Rivet

293150144

$0.82

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Henrob Rivet

293150146

$2.09

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hemlock Rivet, 6.4 mm

293150174

$7.86

Monobolt Rivet 6.4

293150182

$3.09

Monobolt Rivet, 4.8 mm

293150191

$0.99

Insert M5 X 0.8

293450268

$2.09

Full Moon Dart 8 mm

293730041

$2.21

Full Moon Dart 5 mm

293730042

$2.21

Full Moon Dart 10 mm

293730059

$4.55

Pop Rivet 3/16"

390402400

$0.35

Avex Rivet

390909100

$0.30

Avex Rivet

390909200

$0.30

Leg Cushion

505073317

$8.66

Upper Lateral Column Support

518325114

$22.49

Center Column Support

518325115

$22.49

Black Rear Bumper, 154"

518326611

$111.99

Black Rear Bumper, 146" | Vehicle 146" Europe

518327664

$121.99

RH Deflector, Black Polypropylene

518325782

$13.99

LH Deflector, Black Polypropylene

518325783

$13.99

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

RH Rear Base

518325973

$21.99

LH Rear Base | Includes 10v to 10x

518325974

$21.99

Front Member

518326198

$64.99

Front Radiator | Includes 10b to 10b2

518326485

$444.99

Front Radiator | Includes 10b to 10b2

518326485

$444.99

Rear Member

518326559

$264.99

RH Front Suspension Retainer | Package Iron Dog

518326616

$43.99

LH Front Suspension Retainer | Package Iron Dog

518326617

$43.99

Not Available As Spare Parts

XXX

Unavailable

Seal

518326656

$9.19

REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership | Includes 10bk to 10bp

518326728

$739.99

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$720.49

RH Member

518326795

$284.99

LH Member

518326796

$229.99

RH Reinforcement, Running Board

518326937

$27.99

LH Reinforcement, Running Board

518326938

$27.99

Rear Cap

518327105

$22.49

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

Sub A Support

518327145

$79.99

RH Roller | Package Iron Dog

518327200

$164.99

LH ROLLER - Call your local BRP dealership | Package Iron Dog

518327201

Unavailable

RH Suspension Bracket

518327470

$43.99

LH Suspension Bracket

518327471

$43.99

Not Available As Spare Parts

XXX

Unavailable

Front Suspension Support

518327487

$289.99

E Module | Includes 10n to 10at

518327567

$469.99

Front Member

518327565

$349.99

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

RH Stirup

518327841

$169.49

LH Stirup

518327937

$169.49

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

GREEN FRAME ASS'Y 146'' - Call your local BRP dealership

415129921

Unavailable

GREEN FRAME ASS'Y 154'' - Call your local BRP dealership

415129922

Unavailable

Cross Member S Module | Package Iron Dog

518328322

$479.99

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$9.99

Black RH Cap

520000965

$11.49

Black LH Cap

520000964

$11.49
