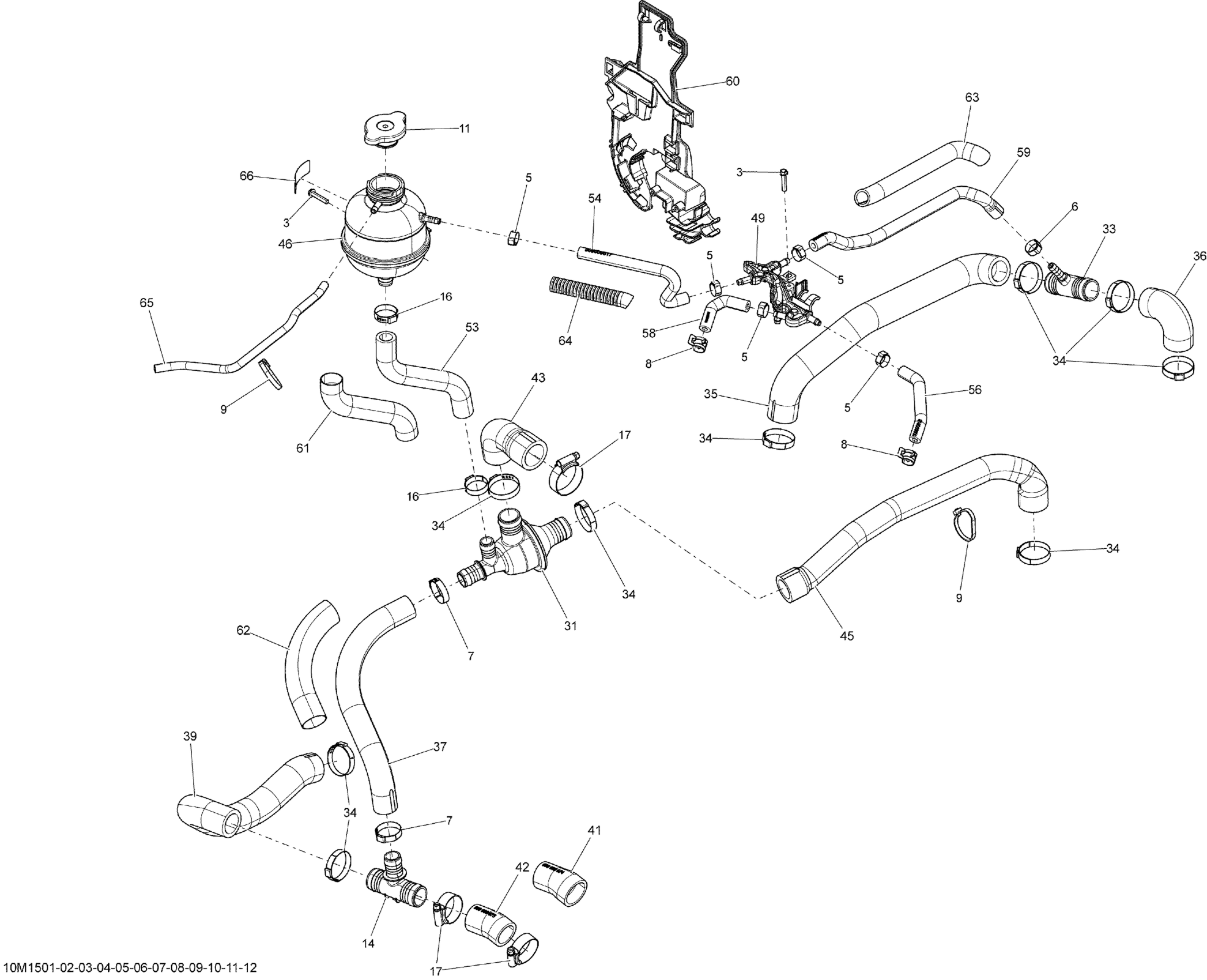

Ski-Doo Freeride 800RETEC XM-RS, 137, 2015 01- Cooling System 800RETEC_10M1510 Diagram

#

Description
Price

3

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

5

Oetiker Clamp

293650046

$2.89

6

Crimp Clamp, 15.3-706R

293650047

$3.29

7

Crimp Clamp

293650099

$4.29

8

Spring Clamp

293650210

$5.39

9

Tie-Rap 180 mm

414115200

$0.11

11

Radiator Pressure Cap

509000180

$20.49

14

T-Fitting

509000372

$10.33

16

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

17

Aba Gear Clamp, 26-38 MM

509000443

$12.72

31

Thermostat Housing

509000499

$42.99

33

T-Fitting

509000510

$13.16

34

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

35

Radiator Hose

509000670

$36.99

36

Radiator Hose This part replaces 509000671.

509001066

$20.99

37

Bypass Hose

509000672

$24.99

39

Radiator Hose

509000673

$23.49

41

Engine Inlet Hose

509000997

$19.99

42

Not Available As Spare Parts

XXX

Unavailable

43

Engine Outlet Hose

509000678

$19.99

45

Thermostat Outlet Hose

509000679

$25.99

46

Coolant Tank

509000802

$73.99

49

Bleed Collector

509000803

$24.99

53

Filling Hose

509000812

$23.49

54

HOSE - Call your local BRP dealership

509000817

$10.99

56

Bleeder Hose

509000818

$11.60

58

Bleeder Hose

509000819

$11.60

59

Bleeder Hose

509000906

$24.49

60

TANK-SUPPORT - Call your local BRP dealership

509000973

Unavailable

61

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

62

Not Available As Spare Parts

XXX

Unavailable

63

Tubing 16 Mm 1000Mm Long

219704408

$7.49

64

Was 409901800 Tubing (13 mm)

219704400

$14.49

65

Hose 6 Mm 15000Mm Long

219704360

$132.49

66

Warning Decal

516005904

Unavailable
