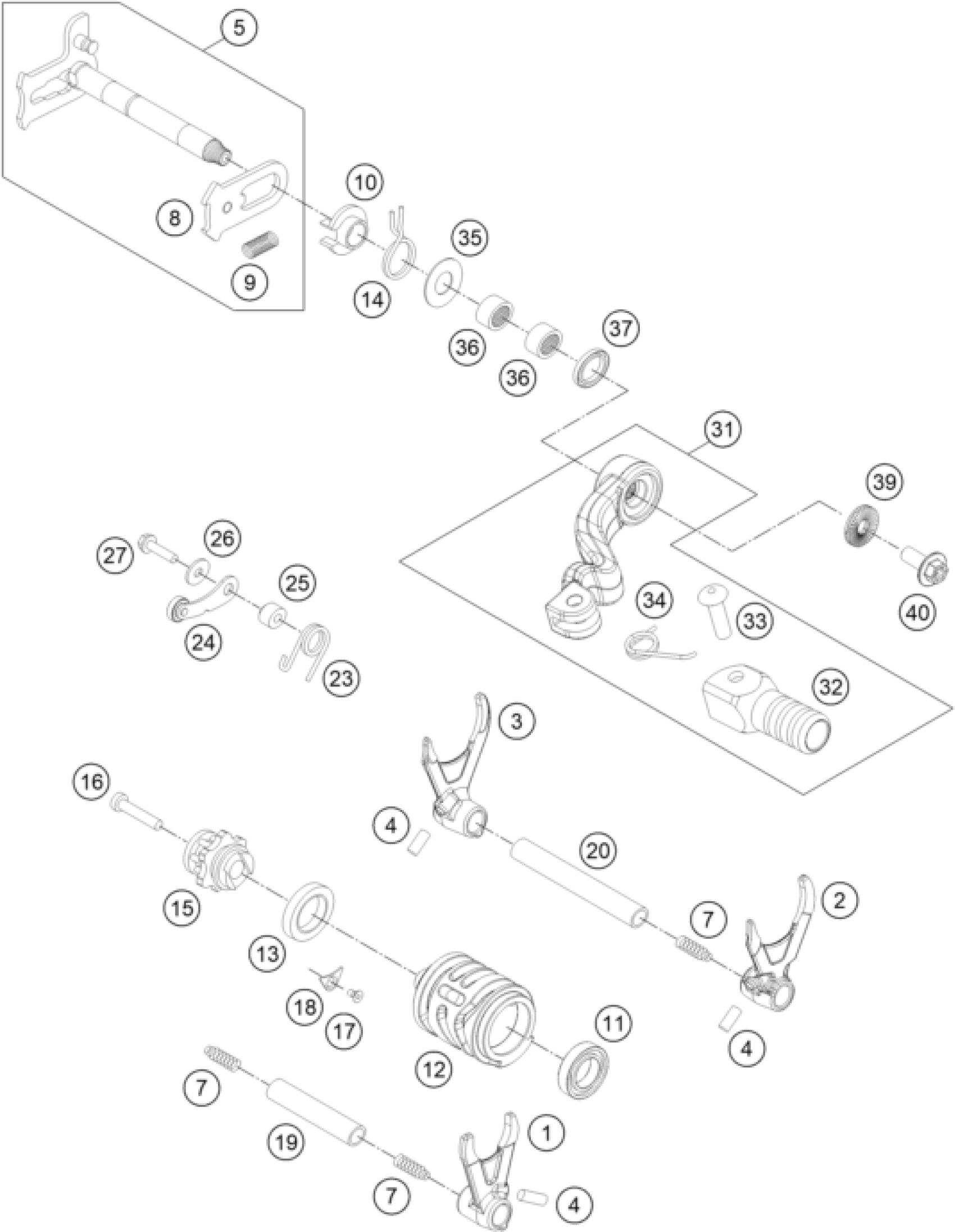

KTM FREERIDE 350 2016 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFTING FORK 5TH/6TH GEAR

77734001000

$65.16

2

SHIFT FORK 2./4.G.

54834202000

$61.80

3

SHIFT FORK 1./3. G.

54834203000

$61.80

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

5

SHIFT SHAFT ASSY

54834005133

$57.21

7

PRESSURE SPRING 0,9MM

58038023200

$4.11

8

SLIDING PLATE

61234008044

$10.46

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

SPRING GUIDE

54634020000

$6.44

11

BALL BEARING 6903 C4

0625069034

$20.37

12

GEAR SHIFT DRUM

54834212200

$59.46

13

BALL BEARING 61805 C3

0625618050

$43.94

14

RETURN SPRING 03

54834014000

$4.11

15

SHIFT LOCATING DRUM CPL.

77234015000

$47.12

16

AH SCREW DIN0912-M 6X35

0912060353

$2.05

17

hex lobe countersunc screw M5x

0019050106S

$2.05

18

RETAINING PLATE F. CS BEARING

75030085000

$1.49

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

$12.80

20

SHIFT. RAIL C. SHAFT 250/300

54834020000

$13.74

23

ARRESTING LEVER SPRING 03

60034023000

$2.05

24

LOCATING LEVER CPL. 08

50334024144

$14.58

25

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

26

washer DIN 9021 A - 5.3

0021050003

$1.49

27

HH collar screw M5x20 TX30

0025050206

$2.05

31

SHIFTING LEVER CPL.

72034031000

$73.11

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

34

SHIFTING LEVER SPRING 250

54634032100

$3.08

35

STOP DISK 14X30X1

54634050000

$2.05

36

needle sleeve HK 1412 14x20x12

54632095000

$7.00

37

radial shaft seal 14x24x6 B

0760142460

$9.25

39

PAIR NORDLOCK WASHER M6

50233041500

$4.11

40

HH collar screw M6x15 TX30

0024060156S

$2.05
