Description

Price

1

MAIN SHAFT CPL.

77733001000

$171.38

2

SOLID GEAR 2ND G. T=16

77733102000

$35.24

3

SLIDING GEAR 3/4 G. T=''16/23

77733103000

$165.49

4

IDLER GEAR 5TH G. T=23

77733105000

$164.93

5

IDLER GEAR 6TH GEAR CPL.

72033006044

$125.38

6

BUSHING

78033001110

$11.40

7

RETAINING PLATE F. CS BEARING

75030085000

$1.49

8

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

10

BALL BEARING 6205 C3 NTN

0625062054

$20.66

11

IDLER GEAR BUSHING

77733024000

$25.98

12

LOCK RING 22X1,2

50133090000

$2.05

13

BUSHING

77733027000

$24.86

14

GROOVED BALL BEAR. TM 16004 C3

0625160040

$23.37

15

SPACER SHIM 21X42X0.2

77233088000

$5.79

16

STOP DISC

77733021000

$4.11

17

STOP DISC

77733022000

$4.11

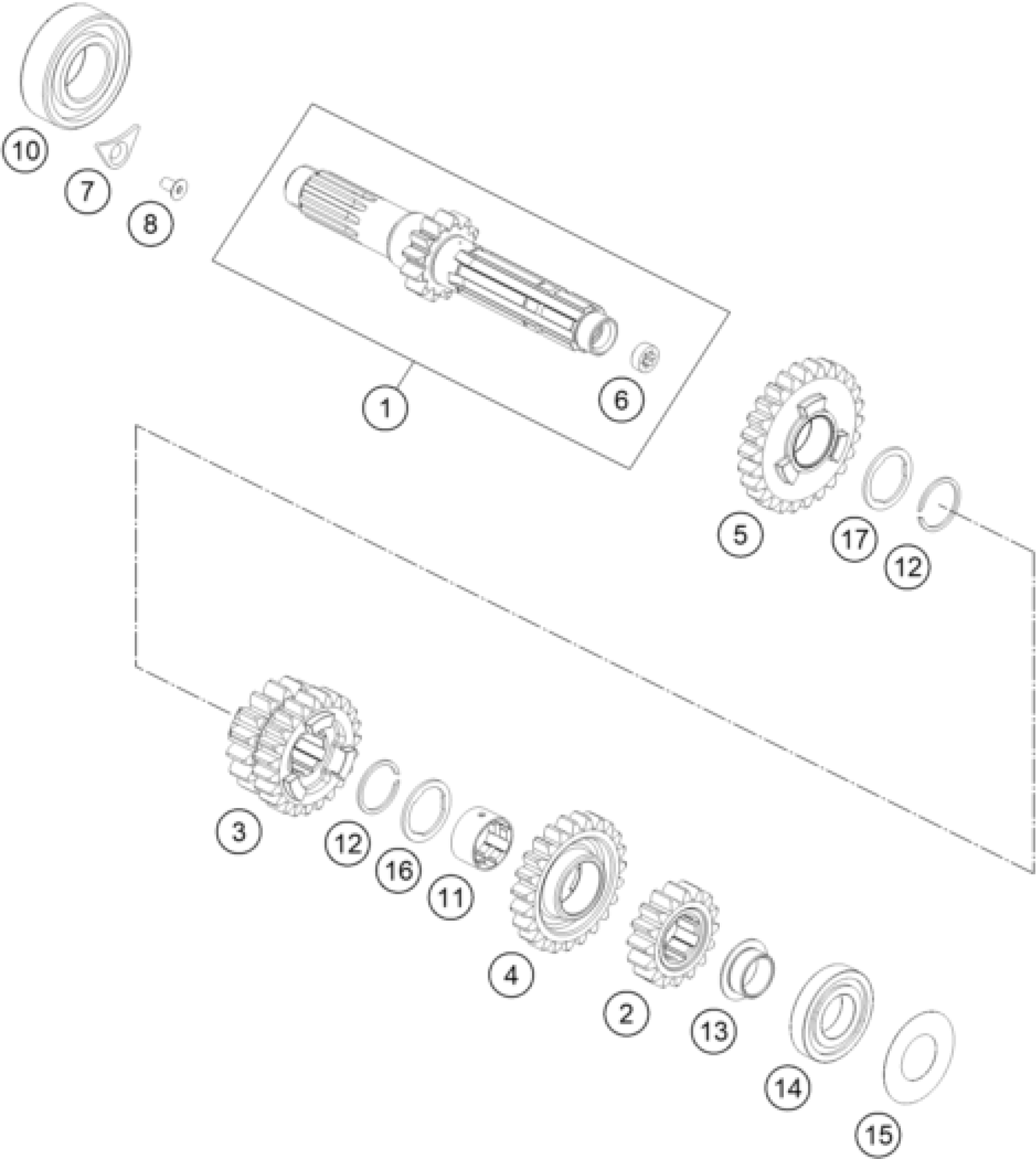

KTM FREERIDE 350 2015 TRANSMISSION I - MAIN SHAFT Diagram

MAIN SHAFT CPL.

SOLID GEAR 2ND G. T=16

SLIDING GEAR 3/4 G. T=''16/23

IDLER GEAR 5TH G. T=23

IDLER GEAR 6TH GEAR CPL.

BUSHING

RETAINING PLATE F. CS BEARING

INT. TORX FLAT HEAD M5X12 T25

BALL BEARING 6205 C3 NTN

IDLER GEAR BUSHING

LOCK RING 22X1,2

BUSHING

GROOVED BALL BEAR. TM 16004 C3

SPACER SHIM 21X42X0.2

STOP DISC

STOP DISC
