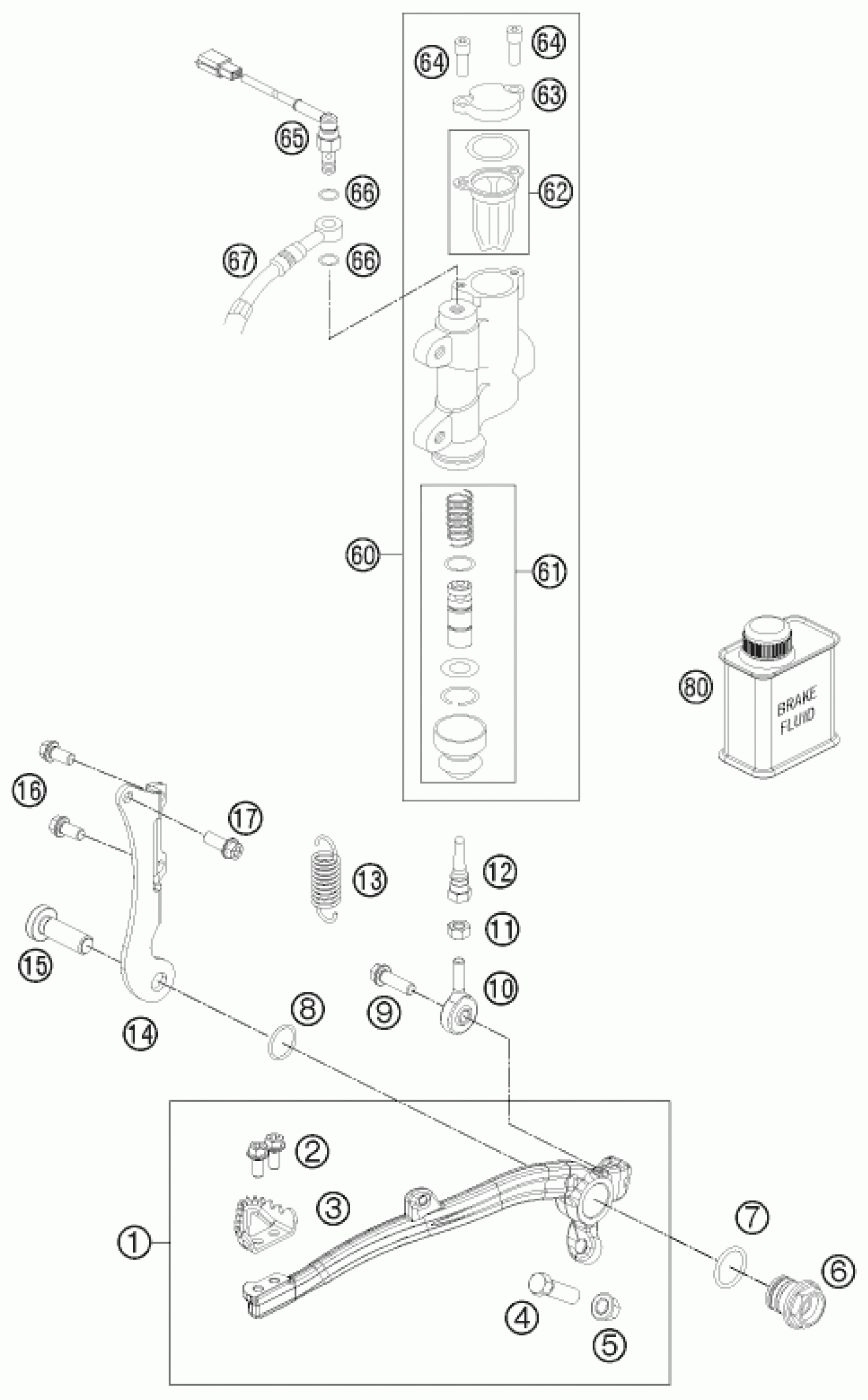

KTM FREERIDE 350 2015 REAR BRAKE CONTROL Diagram

FOOT BRAKE LEVER CPL. 12

72013050044

$94.05

HH collar screw M5x12 TX30

0025050126

$3.08

STEP PLATE FOR BRAKE LEVER

54813051000

$11.02

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

flanged nut M8 WS10

46030045000

$7.85

NUT FOOT BRAKE LEVER SW19 '12

72013053000

$30.47

o-ring 18.00x2.00 NBR70

0770180020

$2.05

O-RING 12,5X1,5 NBR

0770125015

$2.05

HH collar screw M6x20 TX30

0025060206S

$2.05

SWIVEL HEAD KA6 03

54813055000

$19.91

Hex. nut DIN 934 M6

0934060003

$1.49

PUSH ROD

46213056000

$12.61

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

SUP. PLATE BRAKECYL. REAR 12

72013065000

$17.66

AH collar screw M10x30 ISA45

0035100309S

$3.08

HH collar screw M6x12 TX30

0025060126

$3.08

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

FOOT BRAKE CYL. REAR CPL. D=12

4701306030001S

$189.14

Rep.set piston, rear D=12 2004

47013061100

$75.45

GASKET CYLINDER COVER REAR 03

47013063000

$10.74

CYLINDER COVER REAR 85 SX 03

47013062000

$8.87

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

BRAKE LIGHT SWITCH REAR

72011051000

$93.40

O-RING 8,00X1,00 FORMULA

0770080019

$2.05

REAR BRAKE HOSE L=540MM DOT

72013071100

Unavailable

Brake fluid DOT5.1 0,25L

00062030000

$12.52
