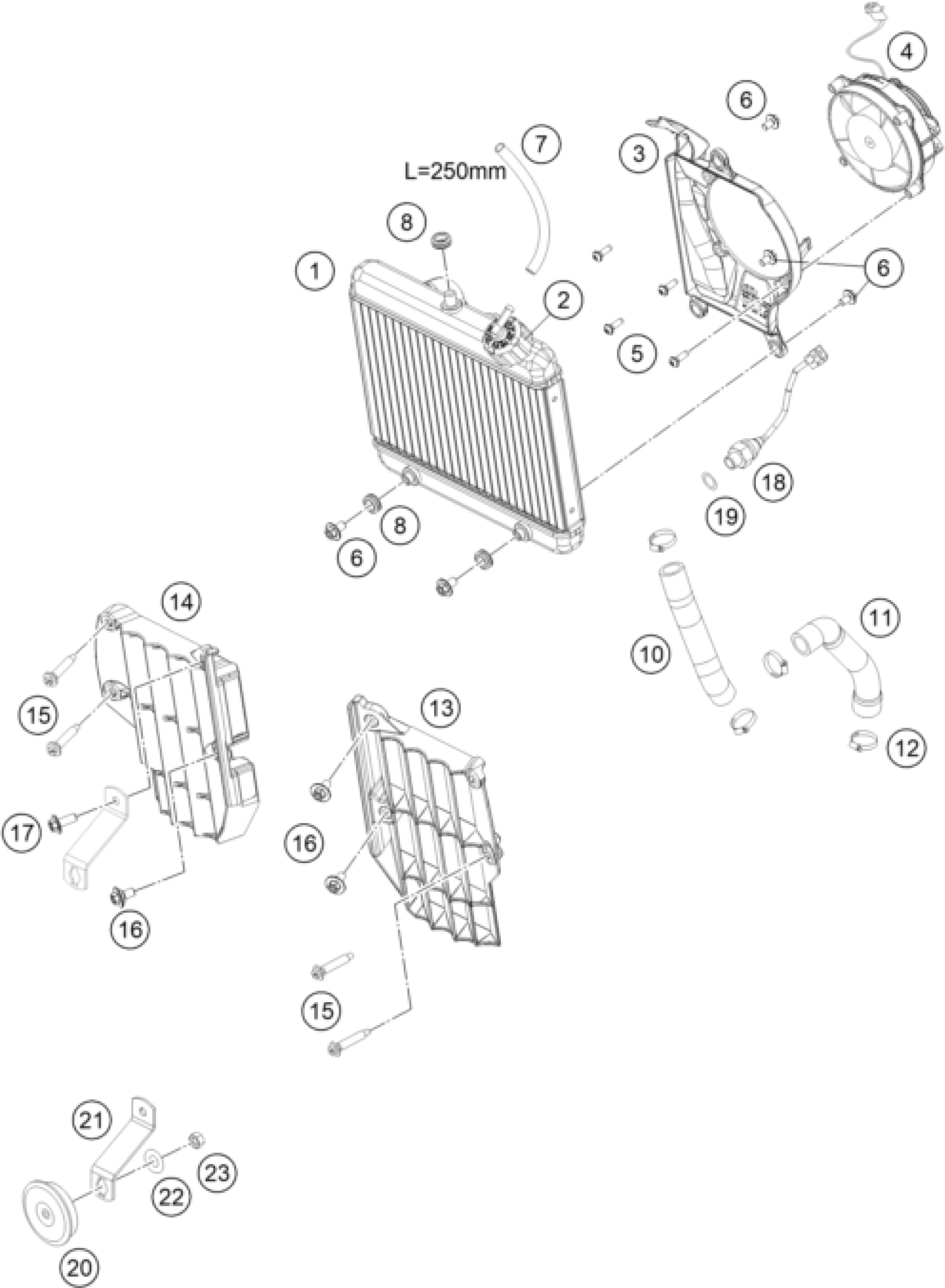

KTM FREERIDE 350 2015 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR ''15691UE''

72035010200

$240.38

2

RADIATOR CAP 1,8 BAR

72035016000

$20.94

3

FAN COWL

72035044000

$7.66

4

FAN CPL. 12V LC4 2000

58435041000

$137.53

5

EJOT PT SCREW K50X16 1451

0081050161

$1.49

6

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

7

PVC-HOSE 6X9

50335030001

$6.72

8

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

$1.49

10

PREFORMED HOSE CYL.-RADIATOR

72035026000

Unavailable

11

PREFORMED HOSE ENGINE/COOLER

72035025000

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

RADIATOR PROTECTOR L/S BLACK

7203503400030

$8.03

14

RADIATOR PROTECTOR R/S BLACK

7203503500030

$8.03

15

Special screw K60X30 WS=6

0017060305

$2.05

16

special screw M6x12x3

83008000012

$3.08

17

HH collar screw M6x15 TX30

0024060156

$3.08

18

THERMOSWITCH 95°C M14X1,5

72035045000

$70.96

19

O-RING 13,00X1,5 75FKM 72NBR

07701300151

$2.05

20

DC HORN 12V 07

50311060200

$32.44

21

HORN BRACKET EXC 08

78011061000

$5.23

22

WASHER DIN0125-A 5,3

0125050003

$1.49

23

HEXAGON NUT DIN0934-M 5

0934050003

$2.05
