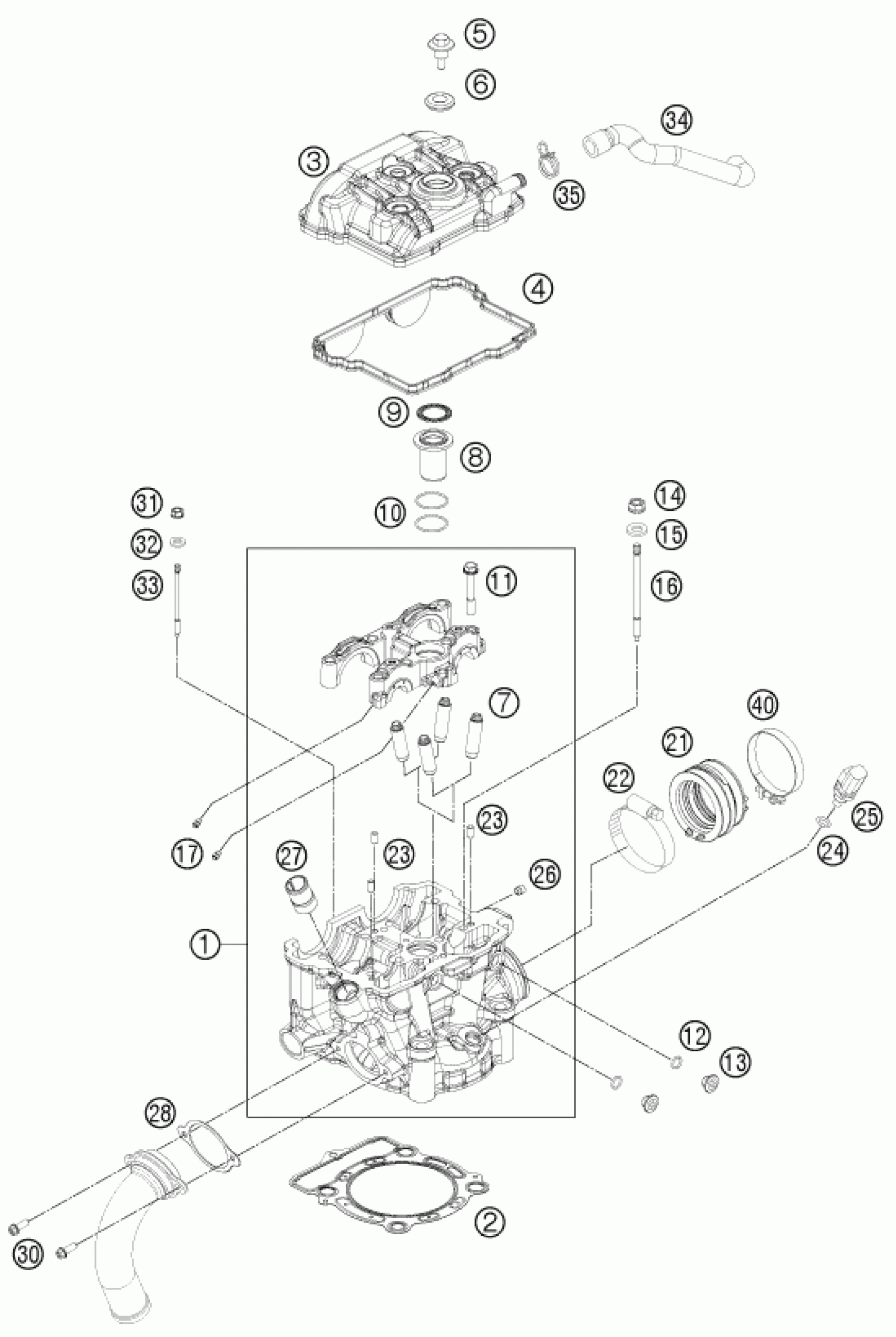

KTM Freeride 350 2012 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

77236020044

$838.22

2

CYLINDER HEAD GASKET

77230036000

$59.74

3

VALVE COVER

7723605200033

$54.69

4

VALVE COVER GASKET

77236053000

$15.70

5

VALVE COVER SCREW

77336054150

$5.23

6

RUBBER GASKET FOR SCREW 05

77036054050

$4.11

7

VALVE GUIDE INTAKT

77236025001

$29.07

8

INSERT SPARK-PLUG SHAFT

77236075000

$33.28

9

GASKET SPARK-PLUG SHAFT

77336053050

$5.88

10

O-RING 1,5x26

0770260015

$3.08

11

HH COLLAR SCREW M7X1X42

77330067142

$1.49

12

O-RING 9x1,5 V80 SH

07700900151

$2.05

13

SCREW PLUG

77236080000

$6.63

14

COLLAR NUT M10X1,25 SW13

77336088210

$2.05

15

washer 19x10.5x2.5

77336089010

$4.11

16

STUD SCREW M10X1,25

77230044000

$8.87

17

oil jet 50 M5

60030063050

$9.44

21

CONNECTION RUBBER EFI

77236044000

$36.27

22

Hose clamp GEMI 63mm 05

61036047000

$7.56

23

needle roller DIN 5402 5x9.8

0402050980

$1.49

24

o-ring 10.00x2.00 silicone

0770100020

$2.05

25

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

26

SCREW PLUG

59030296000

$6.26

27

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

28

GASKET EXHAUST FLANGE

77236041000

$10.93

30

HH collar screw M6x16 TX30

0025060166

$3.08

31

COLLAR NUT M6X1 SW8

77336088106

$12.61

32

WASHER DIN0125-A 6,4

0125060003

$1.49

33

STUD SCREW M6

77330043000

$11.12

34

ENGINE BREATHER HOSE

72030087000

Unavailable

35

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

40

Hose clip GEMI 58

77236048000

$12.05
