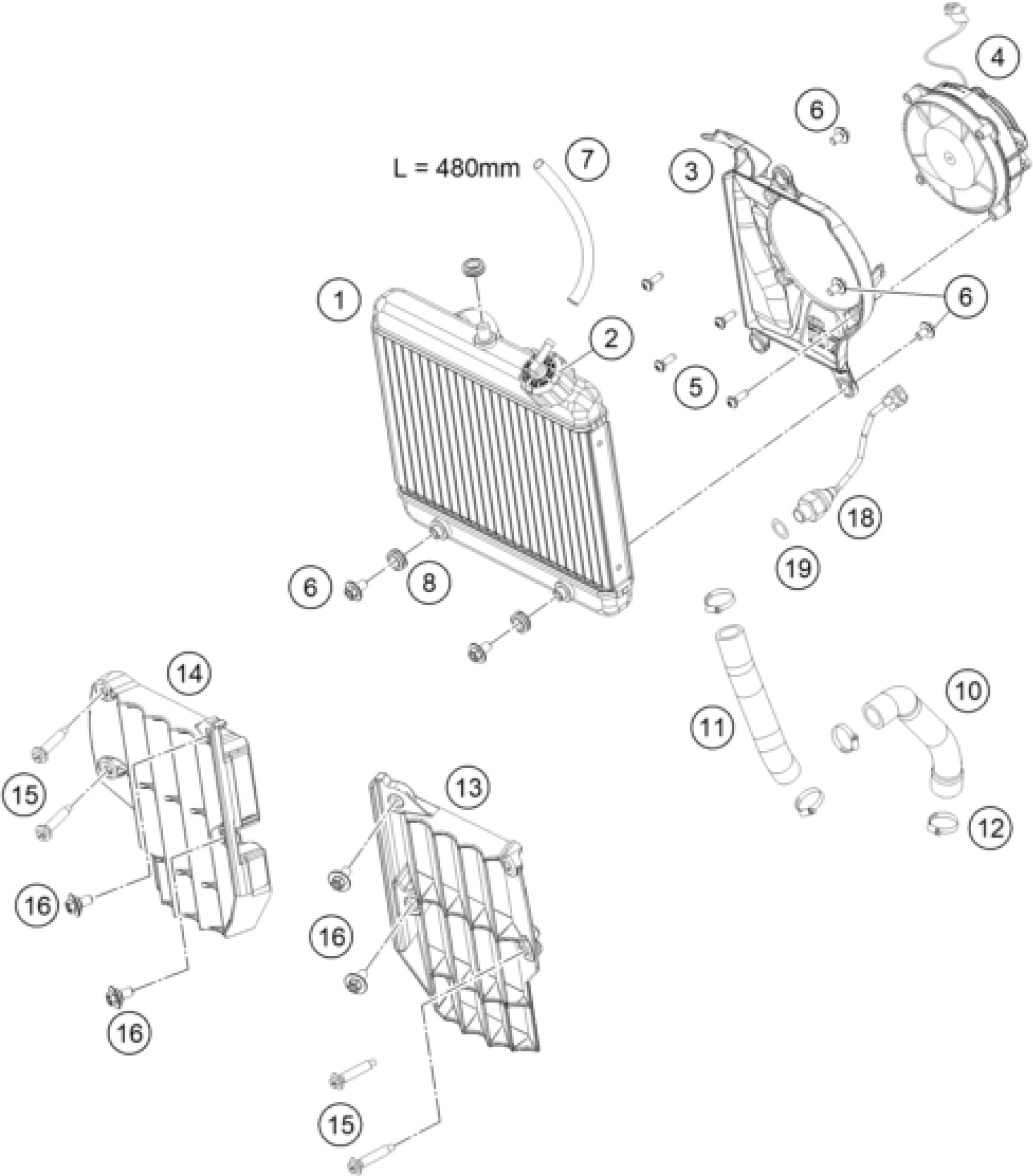

KTM FREERIDE 250 R 2016 COOLING SYSTEM Diagram

#

Description
Price

2

RADIATOR CAP 1,8 BAR

72035016000

Unavailable

1

RADIATOR ''15691UE''

72035010200

Unavailable

3

FAN COWL

72035044000

Unavailable

4

FAN CPL. 12V LC4 2000

58435041000

Unavailable

5

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

6

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

7

PVC-HOSE 6X9

50335030001

Unavailable

8

RUBBER GROMMET 11 X 19 X 9 '96

58414019000

Unavailable

10

PREFORMED HOSE ENG.-COOLER R/S

72535025000

Unavailable

11

PREFORMED HOSE CYL. - COOLER

72535026000

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

RADIATOR PROTECTOR L/S BLACK

7203503400030

Unavailable

14

RADIATOR PROTECTOR R/S BLACK

7203503500030

Unavailable

15

Special screw K60X30 WS=6

0017060305

Unavailable

16

special screw M6x12x3

83008000012

Unavailable

18

THERMOSWITCH 95°C M14X1,5

72035045000

Unavailable

19

O-RING 13,00X1,5 75FKM 72NBR

07701300151

Unavailable
