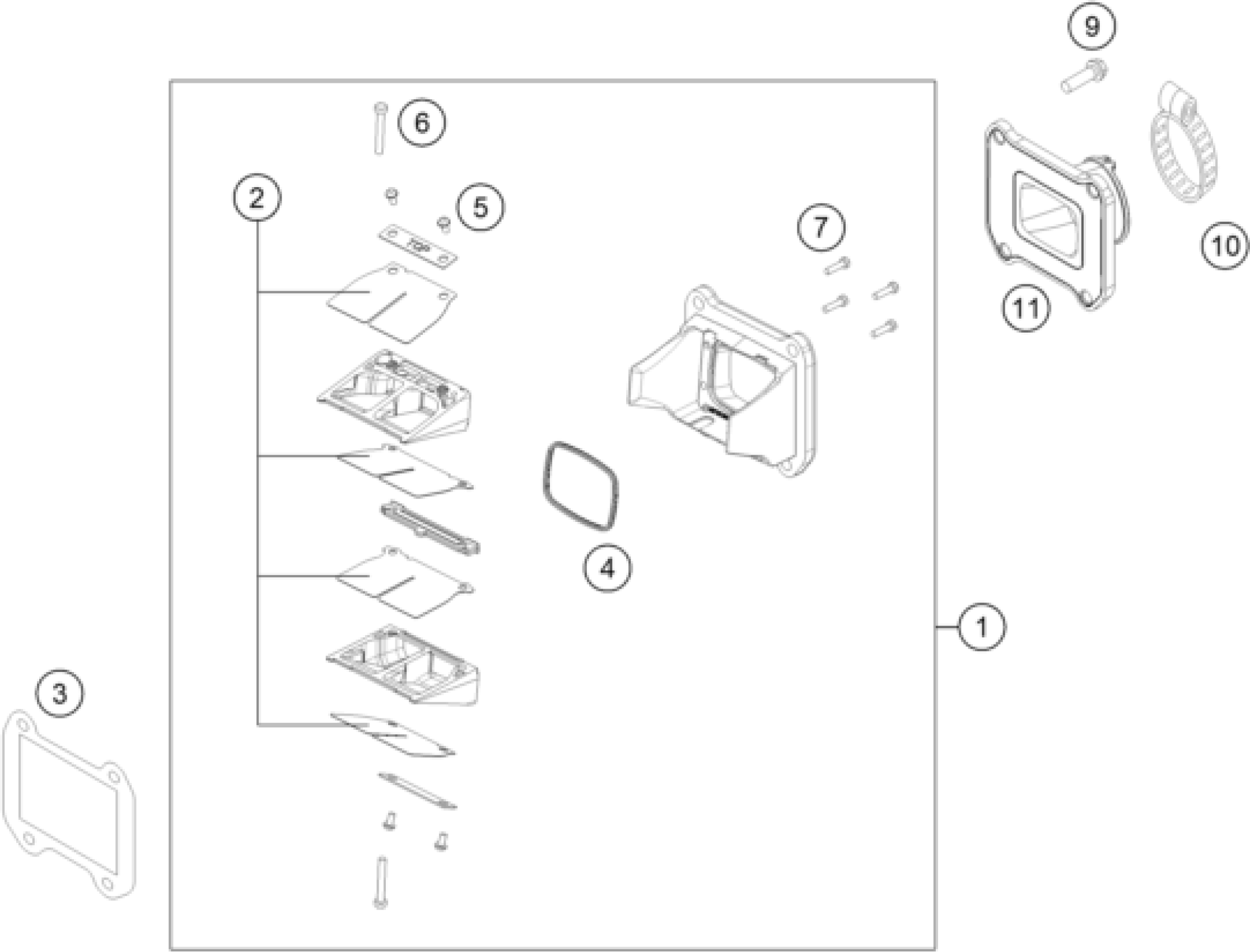

KTM FREERIDE 250 R 2016 REED VALVE CASE Diagram

#

Description

Price

1

REED VALVE ASSY CPL.

54830151044

Unavailable

2

REED VALVE SET

54830052344

Unavailable

3

GASKET REED VALVE CASE

54830062200

Unavailable

4

GASKET SUPPORTING PLATE

54830153050

Unavailable

5

EJOT DELTA PT SCREW 30X6

0081030063

Unavailable

6

EJOT DELTA PT SCREW 35X25

0081035253

Unavailable

7

EJOT DELTA PT SCREW 30X12

0081030124

Unavailable

9

HH collar screw M6x20 TX30

0025060206

Unavailable

10

CLAMP 45/12 GEMI

72530061000

Unavailable

11

INTAKE FLANGE

54830050200

Unavailable
