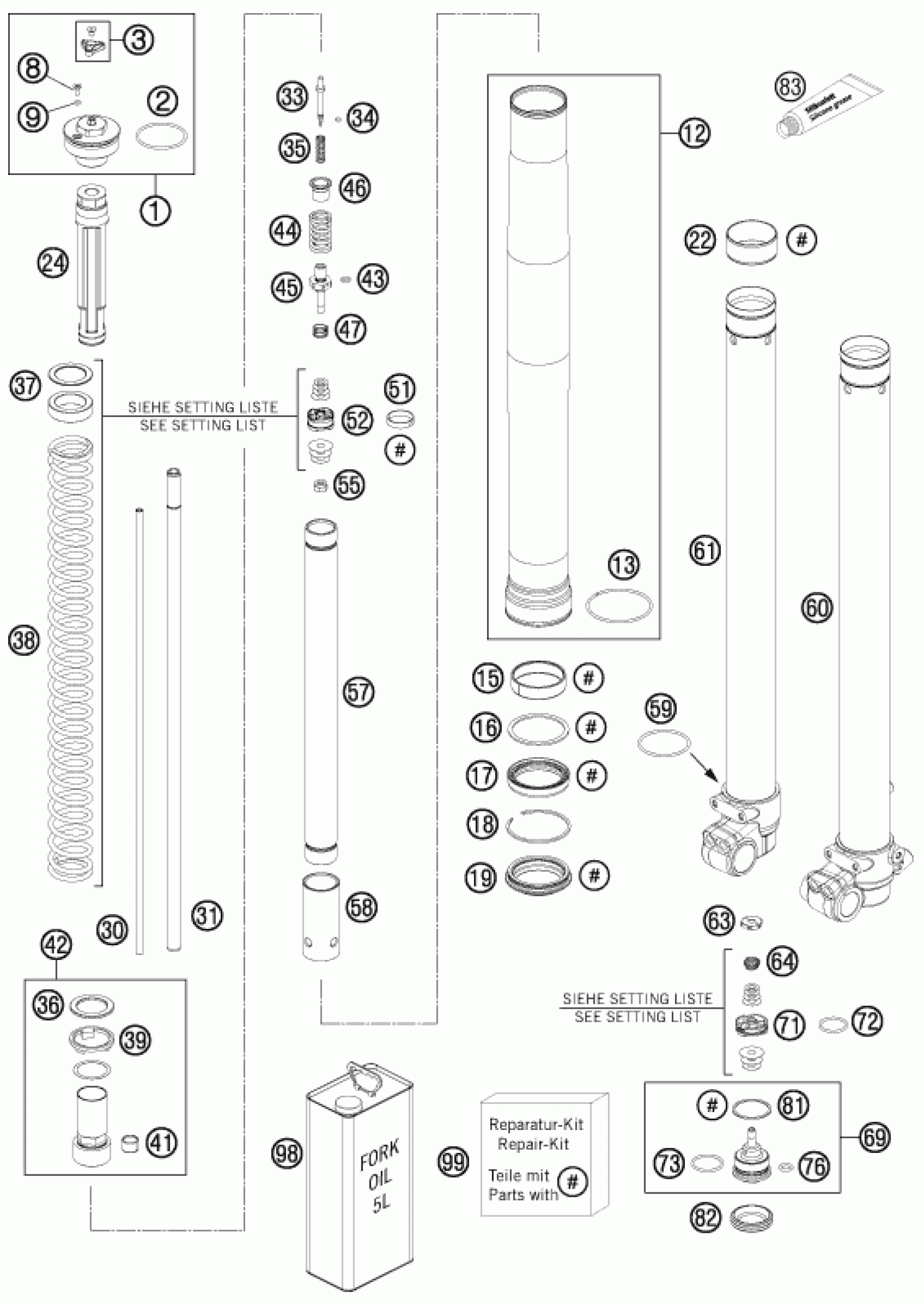

KTM FREERIDE 250 R 2016 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

SCREW CAP M46X1,5 CPL.

43570395S1

$360.06

2

O-ring 40x2 NBR70 black

46811042

$2.05

3

ADJUSTING KNOB + SCREW

48600812S

$5.23

8

Cross countersunk head screw M

48600481

$2.05

9

O-ring 3x1,5 NBR70

48600046

$1.49

12

Fork outer tube 44,14x510 dt49

43570614E

$237.64

13

Round-wire snap ring 53x2

43570099

$26.45

15

Guide bushing 43x47x12

43570618

$11.68

16

Supportwasher 45x52,5x1,5

43570092

$20.09

17

Seal ring 43x52,9x9,5

43570201

$16.63

18

Snap ring SB53x1,5 acc drawing

43570008

$3.08

19

Dirtscarper NOK 43mm

43570202

$16.73

22

Guide bushing 42x44x20

43570617

$11.40

24

STOP L135 D28,6 D12 CPL.

43570396S1

$47.40

30

Adjustment tube 6x442

48600695

$19.63

31

Piston rod 12x476

48600694

$165.23

33

Needle 4,5x43,6

48600277

$5.51

34

O-ring 2x1,5 NBR70

48600298

$1.49

35

Spring (5,4) 4-23 rebound

48600444

$3.08

37

Preload bush 26,5x38x2,5

43570133

$3.08

36

Preload bush 26,5x38x2,5

43570133

$3.08

37

Preload bush 26x35x4

43570134

$3.08

37

Preload bush 26x38x10

43570135

$4.11

37

Preload bush 26,5x38x1,5

43570136

$3.08

38

SPRING 4,4 N/MM SET

95010049S

Unavailable

38

SPRING 4,6 N/MM SET

95010050S

$145.85

38

SPRING 4,8 N/MM SET

95010054S

Unavailable

39

Spring retainer 33,5x38,2x3

43570131

$18.04

41

Guide bushing 12x14x10

48600430

$6.44

42

SCREW SLEEVE M27X0,8 CPL.

48600830S2

$36.18

43

O-ring 6x1,2 NBR70

48600299

$1.49

44

Spring (13,9) 17-32 rebound

48600511

$1.49

45

TAP REBOUND 07

48600513

$15.98

46

Spring retainer 12,3x19x1,25 r

48600525

$2.05

47

Spring (11,4) 0,4-8 valve

48600382

$2.05

51

Piston ring 21x23x5

48600455

$4.50

52

Piston 6,07x22,7x13

48600575

$14.76

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

57

Tube 23x330

48600870

$73.11

58

Adapter 23x28x70

48600764

$22.34

59

O-ring 41x2 NBR70 siliconized

43570023

$13.55

60

AXLE CLAMP L/S + TUBE CPL.

43570559S1

$393.25

61

AXLE CLAMP R/S + TUBE CPL.

43570558S1

$620.36

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

Tap compression kpl.

48600586E

$37.67

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

76

O-ring 8x2 NBR70

48600049

$1.49

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

SILICONE GREASE F. DUST STRI

T511

$34.59

98

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

99

REPAIR-KIT

R511

$138.46
