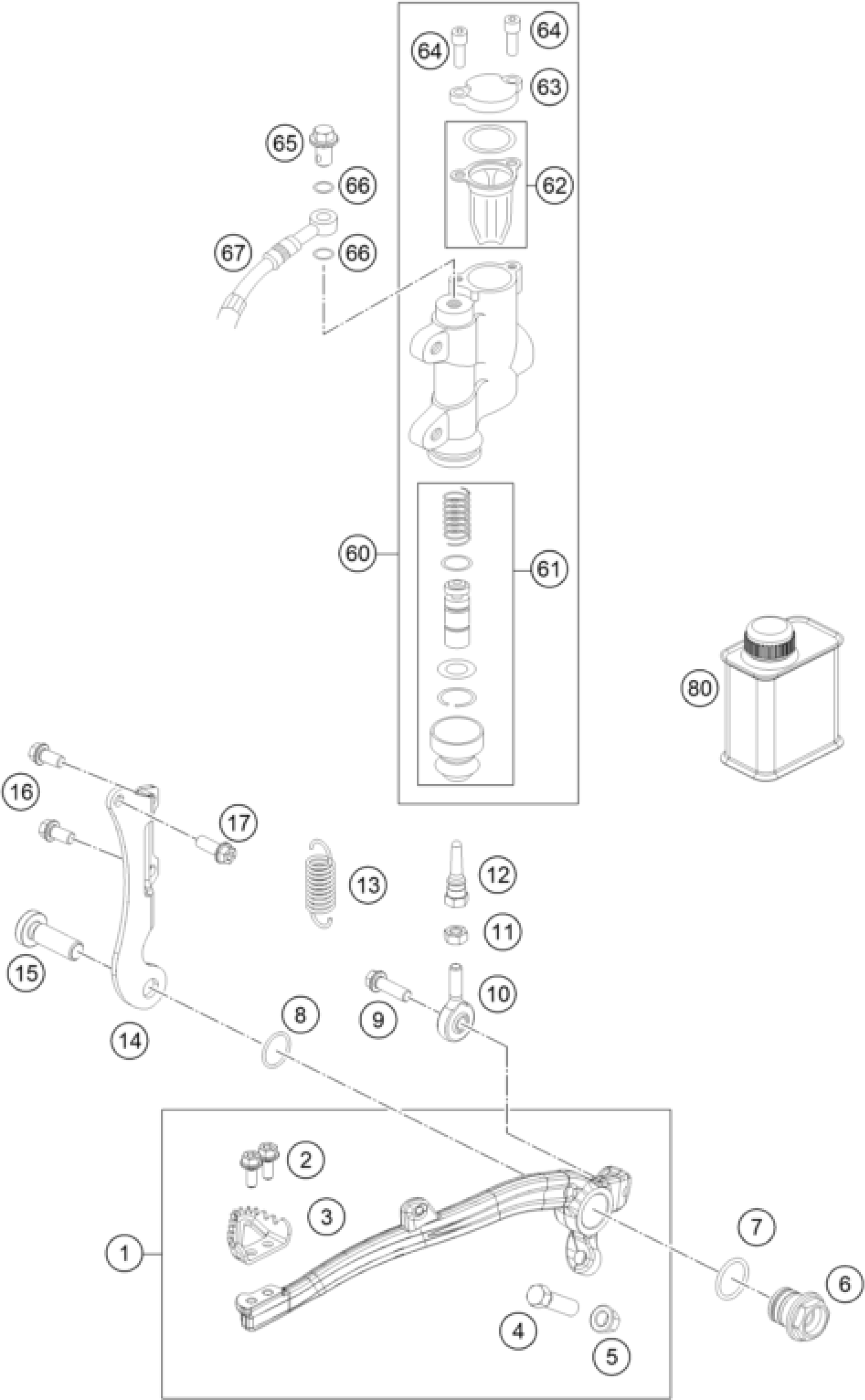

KTM FREERIDE 250 R 2015 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT BRAKE LEVER CPL. 12

72013050044

Unavailable

2

HH collar screw M5x12 TX30

0025050126

Unavailable

3

STEP PLATE FOR BRAKE LEVER

54813051000

Unavailable

4

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

5

flanged nut M8 WS10

46030045000

Unavailable

6

NUT FOOT BRAKE LEVER SW19 '12

72013053000

Unavailable

7

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

8

O-RING 12,5X1,5 NBR

0770125015

Unavailable

9

HH collar screw M6x20 TX30

0025060206S

Unavailable

10

SWIVEL HEAD KA6 03

54813055000

Unavailable

11

Hex. nut DIN 934 M6

0934060003

Unavailable

12

PUSH ROD

46213056000

Unavailable

13

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

14

SUP. PLATE BRAKECYL. REAR 12

72013065000

Unavailable

15

AH collar screw M10x30 ISA45

0035100309S

Unavailable

16

HH collar screw M6x12 TX30

0025060126

Unavailable

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

60

FOOT BRAKE CYL. REAR CPL. D=12

4701306030001S

Unavailable

61

Rep.set piston, rear D=12 2004

47013061100

Unavailable

62

GASKET CYLINDER COVER REAR 03

47013063000

Unavailable

63

CYLINDER COVER REAR 85 SX 03

47013062000

Unavailable

64

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

65

Hollow screw, brake cylinder 0

47013025000

Unavailable

66

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

67

BRAKE HOSE REAR L=638MM

72513071000

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
