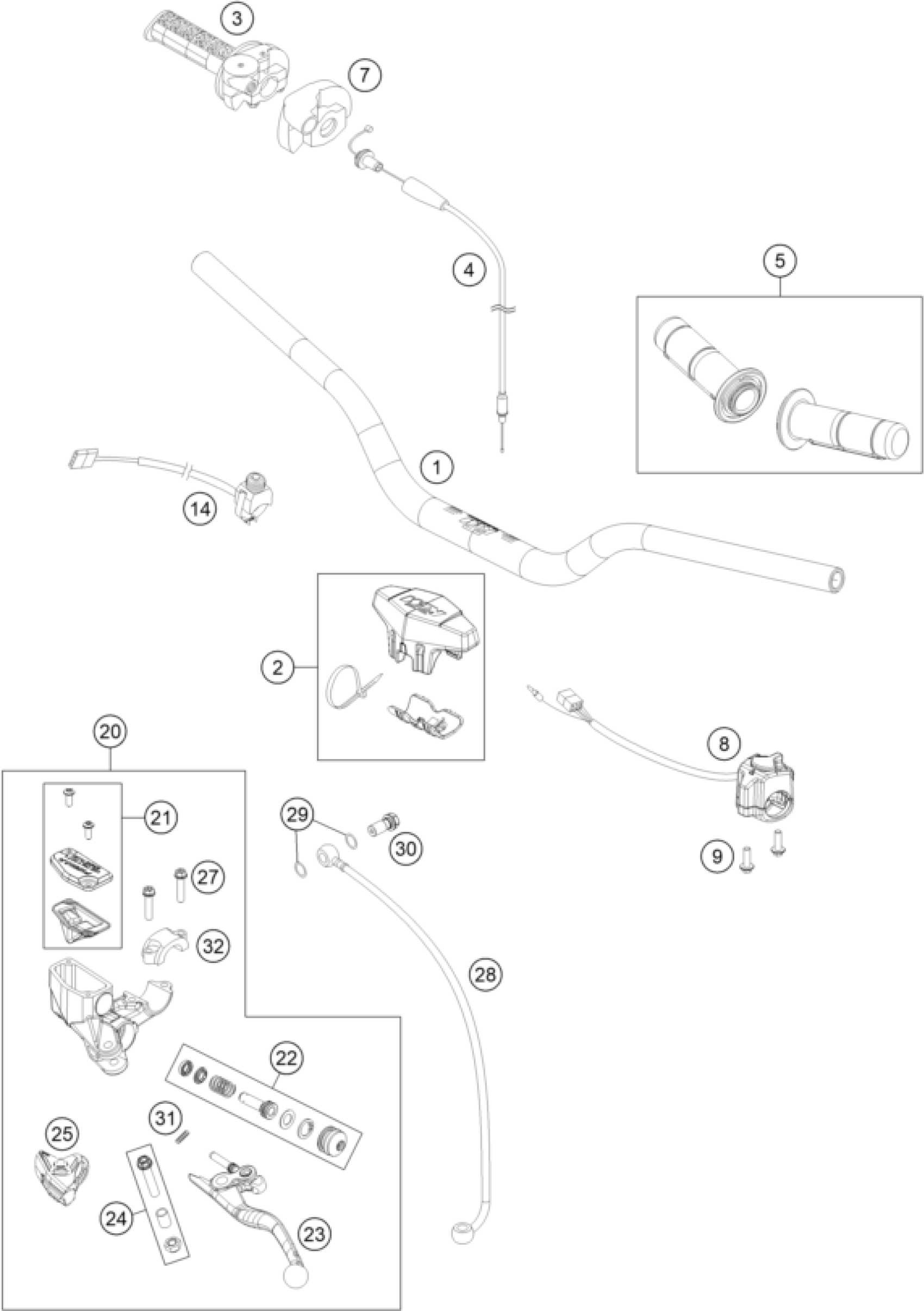

KTM FREERIDE 250 R 2015 HANDLEBAR, CONTROLS Diagram

#

Description
Price

30

Hollow screw, brake cylinder 0

47013025000

Unavailable

24

LEVER SCREW CPL.

70002038000

Unavailable

25

MUDCOVER CLUTCH LEVER

72002037000

Unavailable

27

HH collar screw M6x25 TX30

0025060256

Unavailable

28

CLUTCH PIPE

47132063000

Unavailable

29

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

31

SPRING FOR CLUTCH LEVER

72002035000

Unavailable

32

CLAMP

72013005000

Unavailable

1

HANDLEBAR BLACK D=28MM

7000200100030

Unavailable

2

Bar pad cmpl.

77202002144

Unavailable

3

THROTTLE GRIP CPL. 2ST. 13

51502010200

Unavailable

4

THROTTLE CABLE 2-ST. 2014

51502091200

Unavailable

5

GRIP SET DUAL COMPOUND

63002021100

Unavailable

7

PROTECTION COVER '97

50302020000

Unavailable

8

LIGHT SWITCH

78111070000

Unavailable

9

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

14

STARTER BUTTON GREY 13

78111074000

Unavailable

20

MASTER CYLINDER CPL. 10MM

72002030100

Unavailable

21

COVER F. MASTER CYLINDER CPL.

72002003000

Unavailable

22

REP. KIT PISTON 10MM

72002032000

Unavailable

23

Lever cmpl.

72013002000

Unavailable
