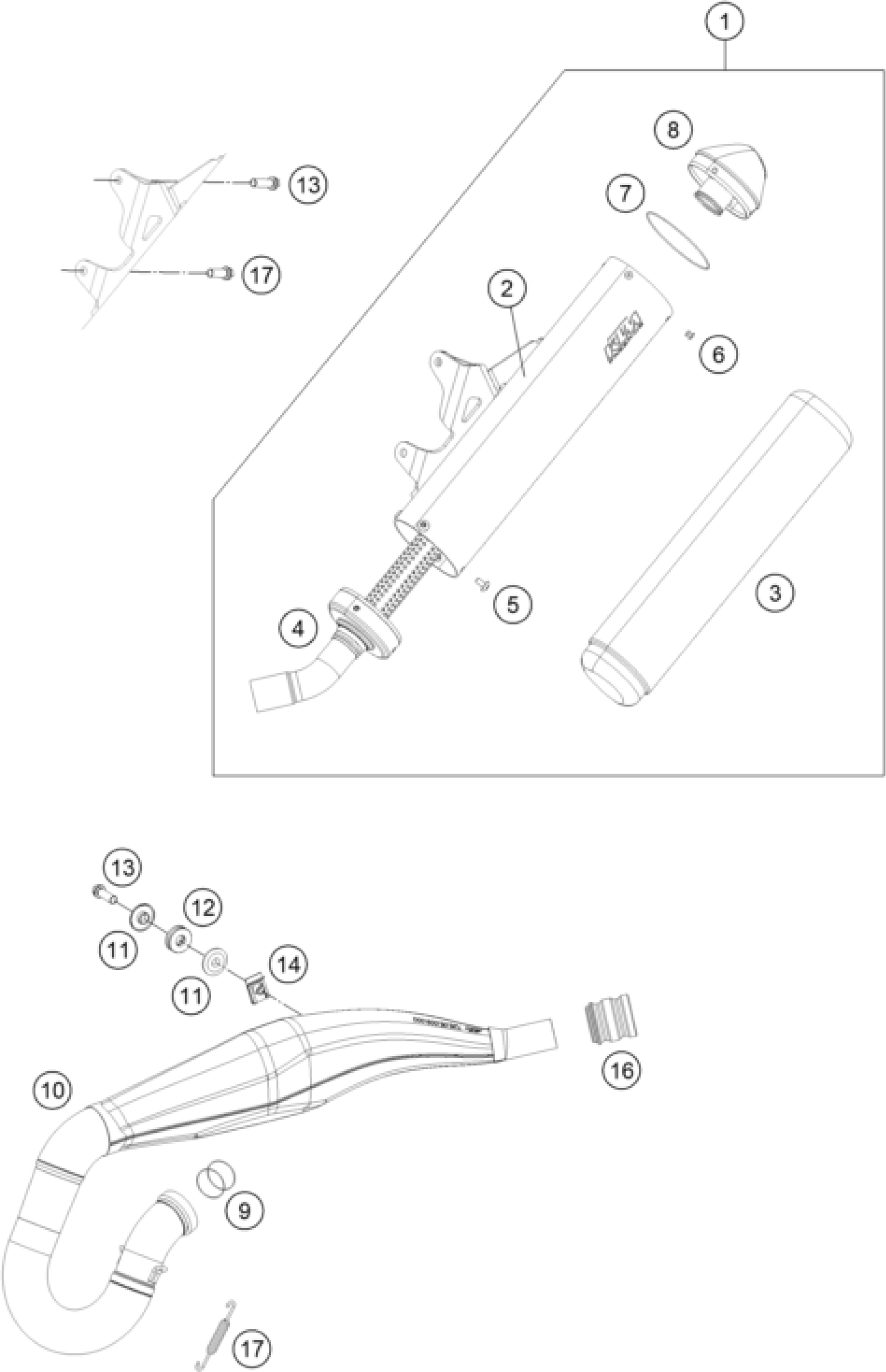

KTM FREERIDE 250 R 2015 EXHAUST SYSTEM Diagram

#

Description

Price

1

SILENCER USA

7250518300059

Unavailable

2

SILENCER CASING USA

7250518308059

Unavailable

3

ROCK WOOL 265G

54805078265

Unavailable

4

CONNECTING CAP CPL.

72505083050

Unavailable

5

SCREW TORX M5X10

78105081010

Unavailable

6

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

7

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

8

ENDCAP CPL.

54805083260

Unavailable

9

O-ring 38x3 VITON

0770380030

Unavailable

10

EXHAUST MANIFOLD

72505009000

Unavailable

11

BUSHING FOR EXHAUST SUPPORT 03

59405069000

Unavailable

12

DAMP. COMPON. BLACK

77205068000

Unavailable

13

HH collar screw M8x25

0025080256

Unavailable

14

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

16

SILICON SLEEVE D=29/31MM

50205057000

Unavailable

17

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable
