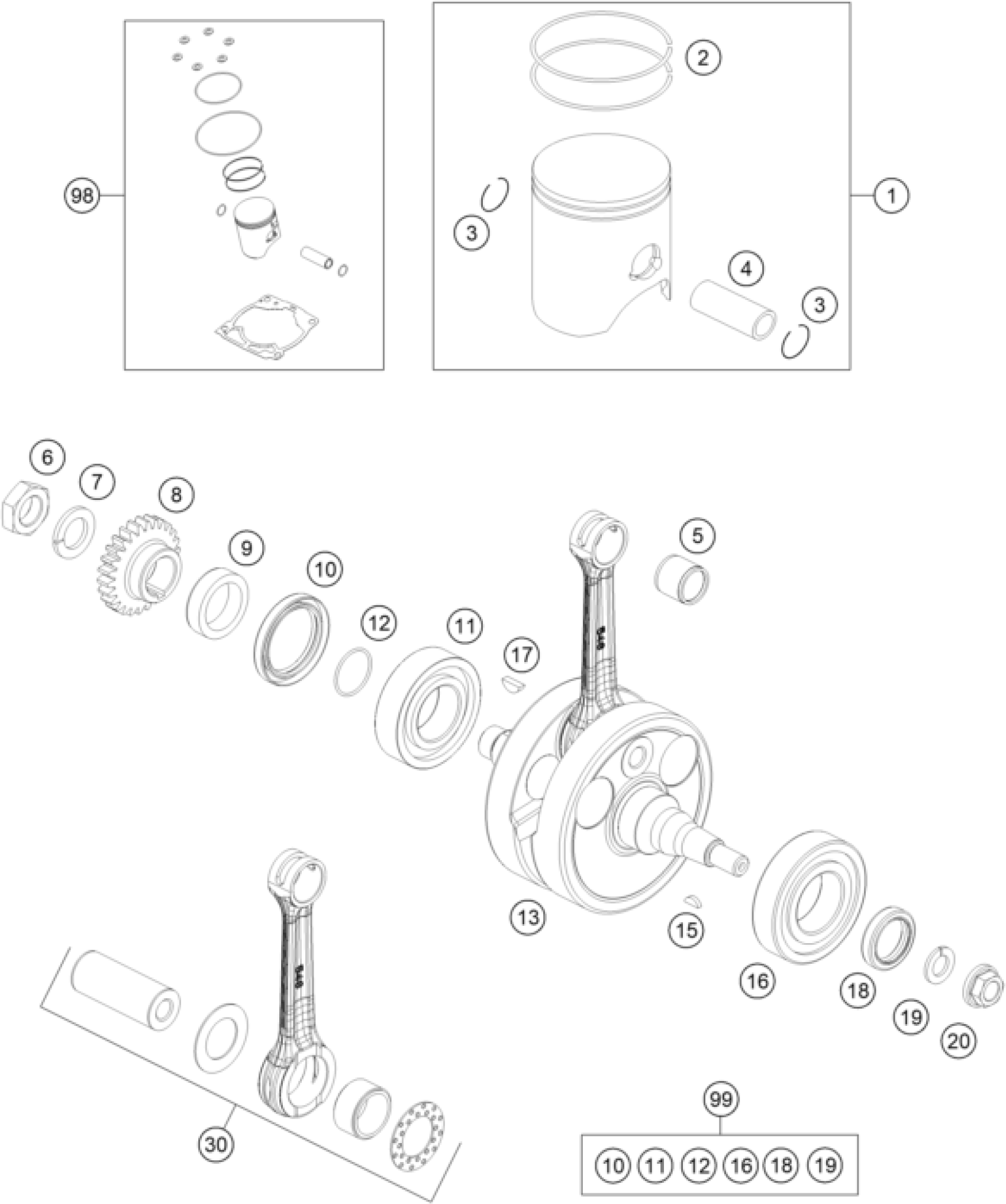

KTM FREERIDE 250 R 2015 CRANKSHAFT, PISTON Diagram

#

Description
Price

13

CRANKSHAFT CPL. 250 EXC

54830118300

$662.25

11

BALL BEARING 32X65X17 NTN

0625623204

$60.95

12

O-RING 25,00X1,50 NBR 70

0770250015

$1.49

1

PISTON I 250 FREERIDE CPL. 14

72530007000 I

$243.18

9

SPACER SLEEVE 28X38X10 03

54830016000

$15.04

10

SHAFT SEAL RING 38X52X7BTSL

0760385273

$22.06

1

PISTON II 250 FREERIDE CPL. 14

72530007000 II

Unavailable

2

TRAPEZOID RING 250 66,4 MM

54830232000

$47.58

3

WIRE LOCK RING C18X1,5

54030074000

$3.08

4

PISTON PIN

54830233000

$29.16

5

NEEDLE BEARING KBK 18X22X20

54430034000

$20.94

6

HEX.NUT L/SH M18X1,5

54630029000

$10.65

7

LOCK WASHER VSK 18

58132072000

$2.05

8

PRIMARY GEAR 26T 2003

54832000026

$90.59

15

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

16

CYLIND.ROL.BEAR. NJ207ET2XCS42

56530123200

$107.05

17

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

18

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

19

LOCKING RING VSK 12

50230029012

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

30

CONROD REP. KIT 250/300

54830015144

$352.02

99

CRANKSHAF REP. KIT 250-300

00050002301

Unavailable

98

PISTONKIT GR.I FREERIDE 250R

72530007010 I

Unavailable

98

PISTONKIT GR.II FREERIDE 250R

72530007010 II

Unavailable
