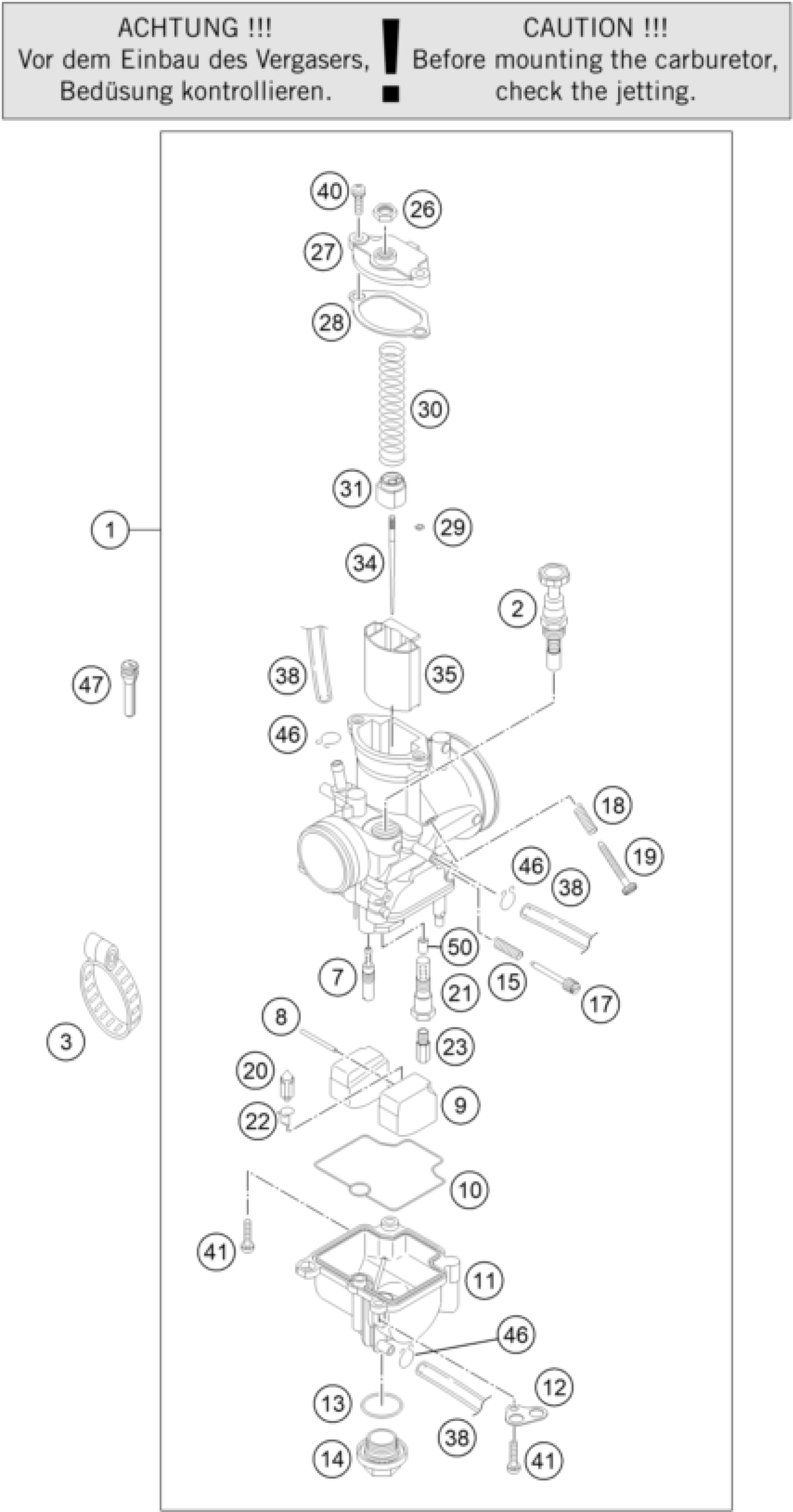

KTM FREERIDE 250 R 2015 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR KEIH. PWK28

72531001044

$401.20

2

STARTER PISTON CPL.

54631245000

$89.94

3

CLAMP 45/12 GEMI

72530061000

$7.56

7

IDLE JET 40 KEIHIN

54531607040

$12.61

7

IDLE JET 42 KEIHIN

54531607042

Unavailable

7

IDLE JET 45 KEIHIN

54531607045

Unavailable

7

IDLE JET 48 KEIHIN

54531607048

Unavailable

7

IDLE JET 50 KEIHIN

54531607050

Unavailable

8

ARM PIN FLOAT

57331008000

$2.05

9

FLOAT CPL. PWK28 03

47031009000

$46.84

10

FLOAT CHAMBER GASKET

47031010000

$8.13

11

FLOAT CHAMBER COMP. ASSY

72531011000

$89.10

12

RETAINING PLATE FOR BLEEDER

54531612100

$3.08

13

O-RING 18,00X2,30 NBR 70

0770180230

$3.08

14

PLUG M 18X1

54531699000

$20.09

15

SPRING FOR ADJUSTMENT SCREW

54531615000

$3.08

17

ADJUSTMENT SCREW

54531617000

$8.50

18

SPRING

54631118000

$9.81

19

ADJUSTMENT SCREW M 5

54631219100

$17.01

20

FLOAT NEEDLE CPL.

47031020000

$27.67

21

NEEDLE JET HOLDER 14

72531022000

$22.71

22

CLAMP

54531621000

$4.11

23

MAIN JET 110 KEIHIN

54531623110

$13.83

23

MAIN JET 115 KEIHIN

54531623115

Unavailable

23

MAIN JET 118 KEIHIN

54531623118

Unavailable

23

MAIN JET 120 KEIHIN

54531623120

Unavailable

23

MAIN JET 122 KEIHIN

54531623122

Unavailable

23

MAIN JET 125 KEIHIN

54531623125

Unavailable

23

MAIN JET 128 KEIHIN

54531623128

Unavailable

23

MAIN JET 130 KEIHIN

54531623130

Unavailable

26

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

27

CARBURETOR COVER PWK28 03

47031027000

$29.82

28

CARBURETOR COVER GASKET PWK28

47031028000

$6.26

29

CLIP FOR JET NEEDLE

54531629000

$3.08

30

THROTTLE VALVE SPRING

47031030000

$10.18

31

SPRING CAP

47031031000

$7.56

34

JET NEEDLE KEIHIN JJK

72531034000

Unavailable

34

JET NEEDLE KEIHIN JJJ

72531034100

Unavailable

34

JET NEEDLE KEIHIN JJH

72531034200

$14.48

34

JET NEEDLE KEIHIN JJG

72531034300

Unavailable

34

JET NEEDLE KEIHIN JJF

72531034400

Unavailable

34

JET NEEDLE KEIHIN JJE

72531034500

Unavailable

35

THROTTLE VALVE 3,5

47031035000

$191.48

38

PVC-HOSE 4X6MM

31007007101

$4.11

40

HH COLLAR SCREW M 4X16 WS=6

0016040163

$2.05

46

Clamp 6mm

54531696000

$3.08

47

SLIDE STOP FREERIDE 250

72531029015

$14.86

50

NEEDLE JET 14

72531021000

$7.75

41

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05
