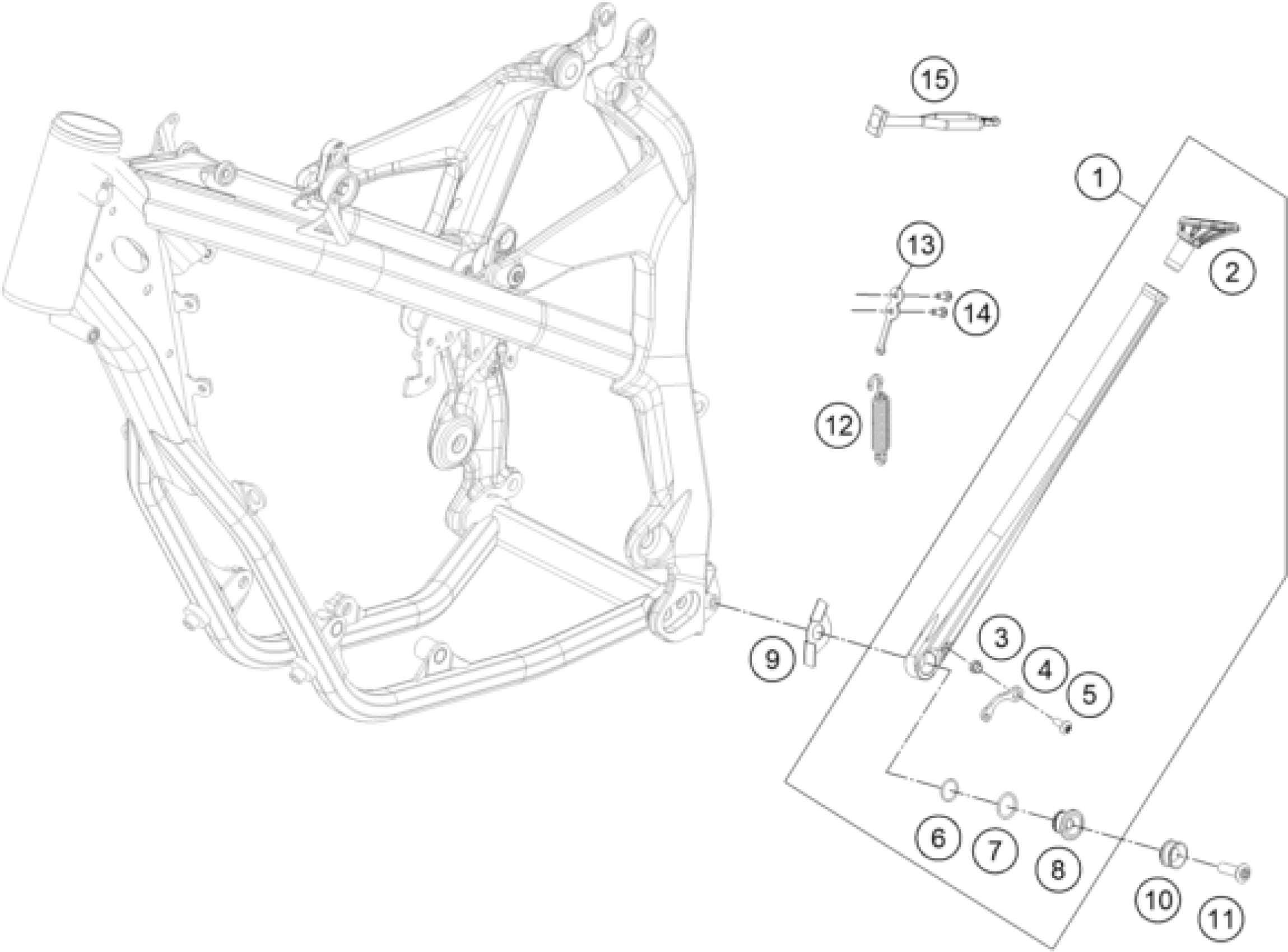

KTM FREERIDE 250 R 2014 SIDE / CENTER STAND Diagram

#

Description
Price

1

SIDE STAND CPL. 2012

70003023044

$109.85

2

STAND BASE

78003023155

$7.10

3

SPACER BUSH. SPRING BRACKET

78003023070

$1.49

4

SPRING BRACKET F. SIDE ST. 08

78003023090

$5.60

5

Oval head screw M5x14 TX25

58605083014

$3.08

6

O-RING 12,5X1,5 NBR

0770125015

$2.05

7

o-ring 18.00x2.00 NBR70

0770180020

$2.05

8

SIDE STAND BUSHING EXC USA 08

78003023080

$22.99

9

STOP SHEET SST

47003023050

$11.12

10

Side stand bushing

78003023081

$12.33

11

COUNTERSUNK SCREW ISA45 M8X35

0019080356

$3.08

12

SIDE STAND SPRING EYE MOVEABLE

81203024000

$17.76

13

SIDE STAND SPRING PLATE 12

70003024050

$14.67

14

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

15

RUBBER L=145MM

50303018000

$6.44
