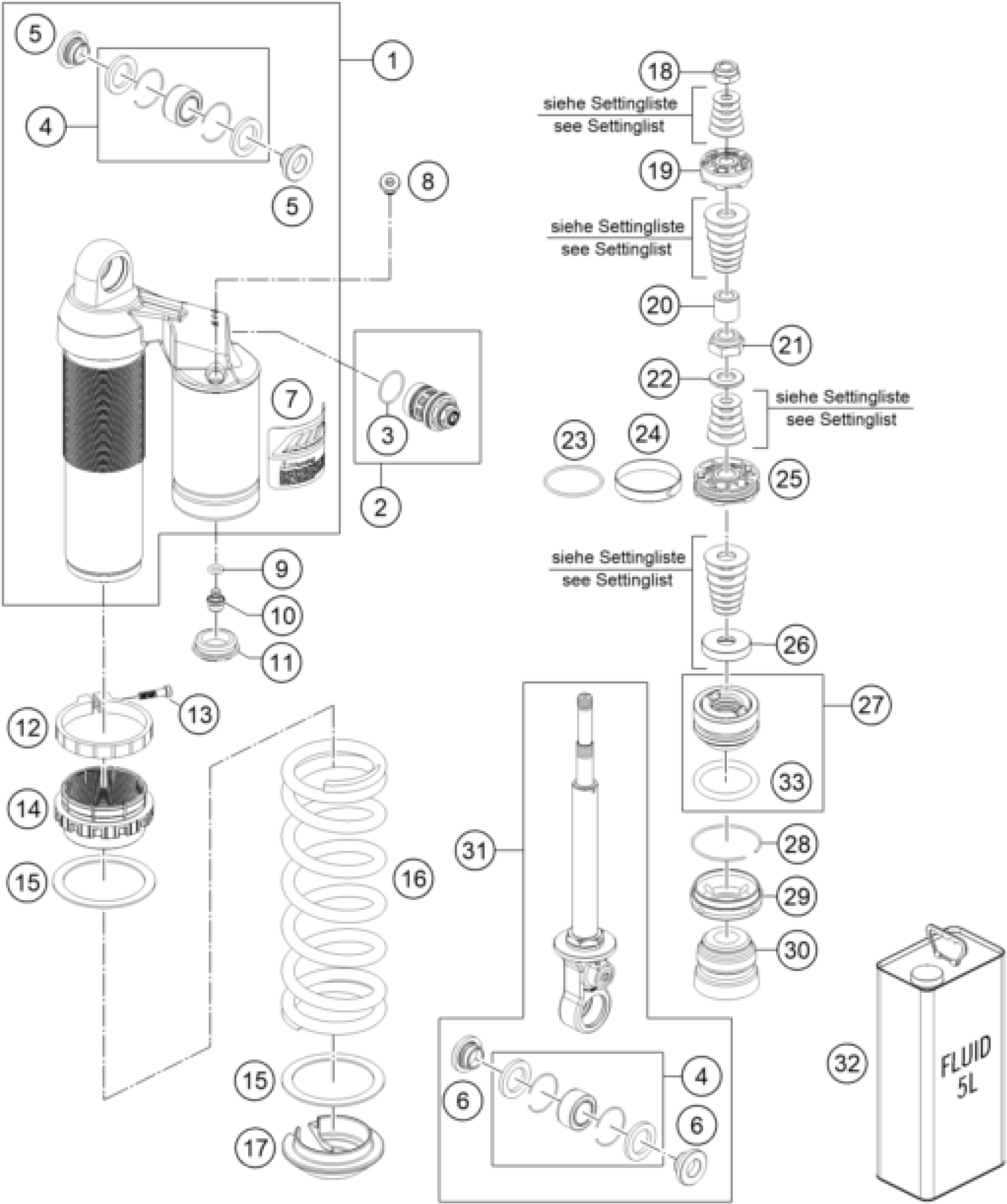

KTM FREERIDE 250 R 2014 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

18

PISTON ROD NUT M10X1

46180356

$7.75

8

HS cylinder-head screw R1/8 l8

50180095

$2.42

9

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

10

HS lock screw M5x6

36120151

$1.86

11

Rubber cap do not open 22x5,5

46811208

$3.08

12

Clamp d61

46181014

$21.96

13

HS cylinder-head screw M5x20 D

14460042

$1.49

15

Washer 58,6x73,6x1,5

50180410

$4.11

17

Spring retainer 28x56x15

46180349

$30.85

19

Piston 10,05x35,5x13,7 3,5/5,5

14460016

$58.15

20

Bush 10x17x10

46181016

$10.18

21

Piston rod nut M12x1

46810474

$5.23

22

Washer 12x24x2,5

46811258

$24.77

23

O-ring 37x,82x1,78 Viton70 gre

46810035

$2.05

24

Piston ring 43,95x45,95x8

46811206

$17.76

16

SPRING 55 N/MM

91010170S

Unavailable

14

Spring retainer M55x2x71x35 pl

46181013

$12.89

16

SPRING 55/63/71 N/MM SET

91010324S

$219.81

16

SPRING 58/66/74 N/MM SET

91010323S

Unavailable

1

MONOSHOCK CASE CPL.

46181018S1

$520.69

2

DCC-COMPR.DAMP.CONTROL CPL. 13

50180213S20

$127.06

3

O-ring 25x1,5 Viton70

50180218

$2.05

5

Distance bush 12x15/18,5/24,5x

46181105

$10.84

6

Distance bush 12x15/18/24,5x10

46180007

$17.76

7

Sticker WP warning 47x63

52000087

$10.00

25

Piston 12,05x45,5x12,6 4,5/7

46810560

$137.72

26

Rebound disc 12x35x4 h0

14460017

$20.00

27

Sealholder 46x28 cpl.

46180669S

$70.54

28

Round-wire snap ring 49x1,5

46810010

$3.08

29

Cover 46,12x6,2 h15,7

46180338

$34.49

30

Rubber pad 17,2x45,2x40 black

50180276

$8.41

31

MONOSHOCK LOWER PART

46181010S1

$396.99

32

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

4

Ball joint bearing kit top 12m

R12012

$35.71

33

O-ring 36x5 NBR70

14460004

$1.49
