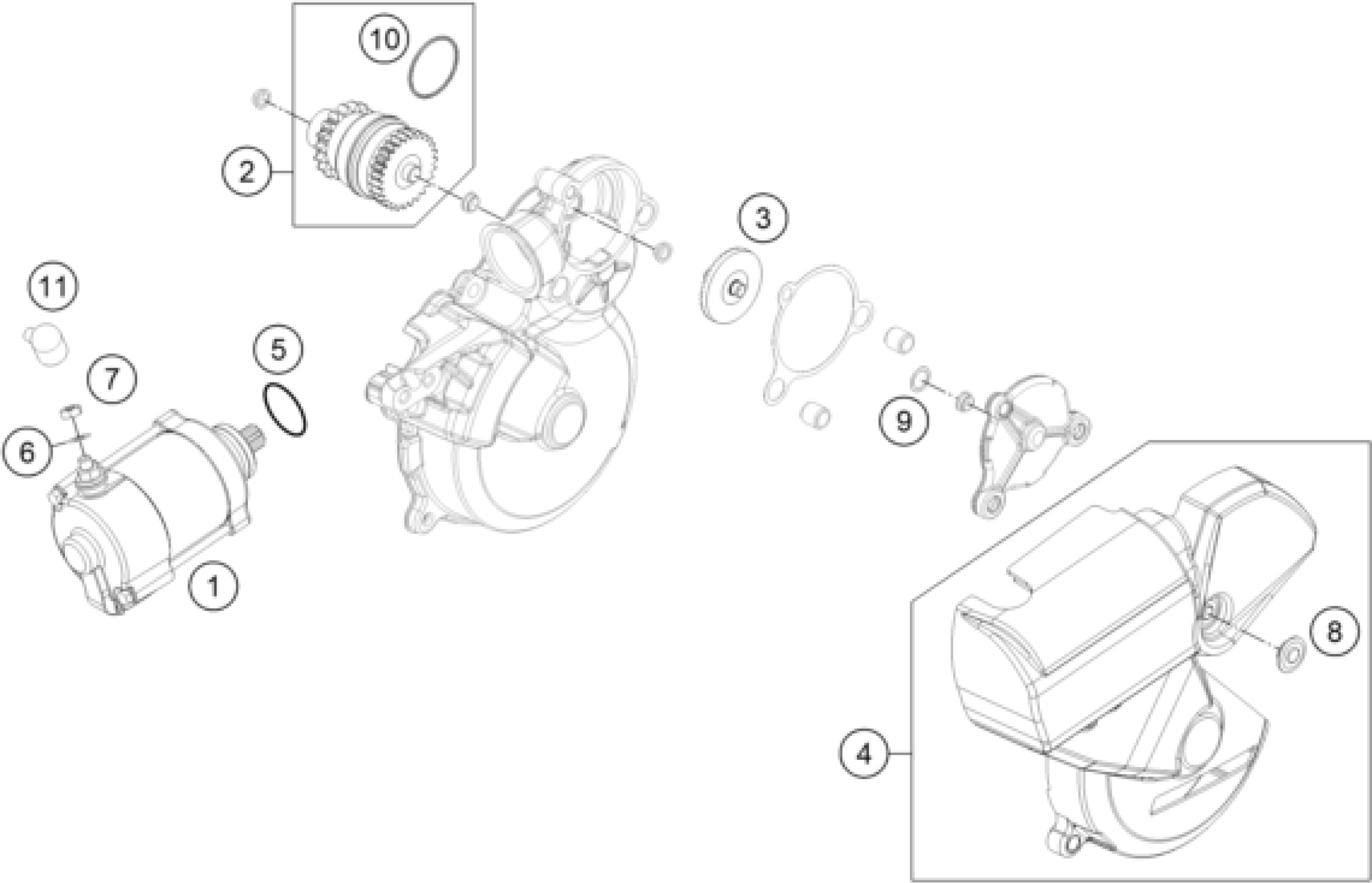

KTM FREERIDE 250 R 2014 ELECTRIC STARTER Diagram

#

Description
Price

5

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

6

WASHER DIN0125-A 6,4

0125060003

$1.49

7

Self lock. nut DIN985-M6-A2

0985060003

$2.05

2

BENDIX 18/30

55140026200

Unavailable

3

INTERMEDIATE SHAFT E-STARTER

55140022200

Unavailable

4

STARTER DRIVE COVER CPL.

55140040144

$38.14

8

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

9

THRUST WASHER 8X14X0,1

0988081401

Unavailable

9

THRUST WASHER 8X14X0,2

0988081402

Unavailable

9

THRUST WASHER 8X14X0,3

0988081403

Unavailable

9

THRUST WASHER 8X14X0,5

0988081405

Unavailable

10

BENDIXSPRING

55140027000

$10.93

11

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23

1

Starter Moric

55140001100

$460.57
