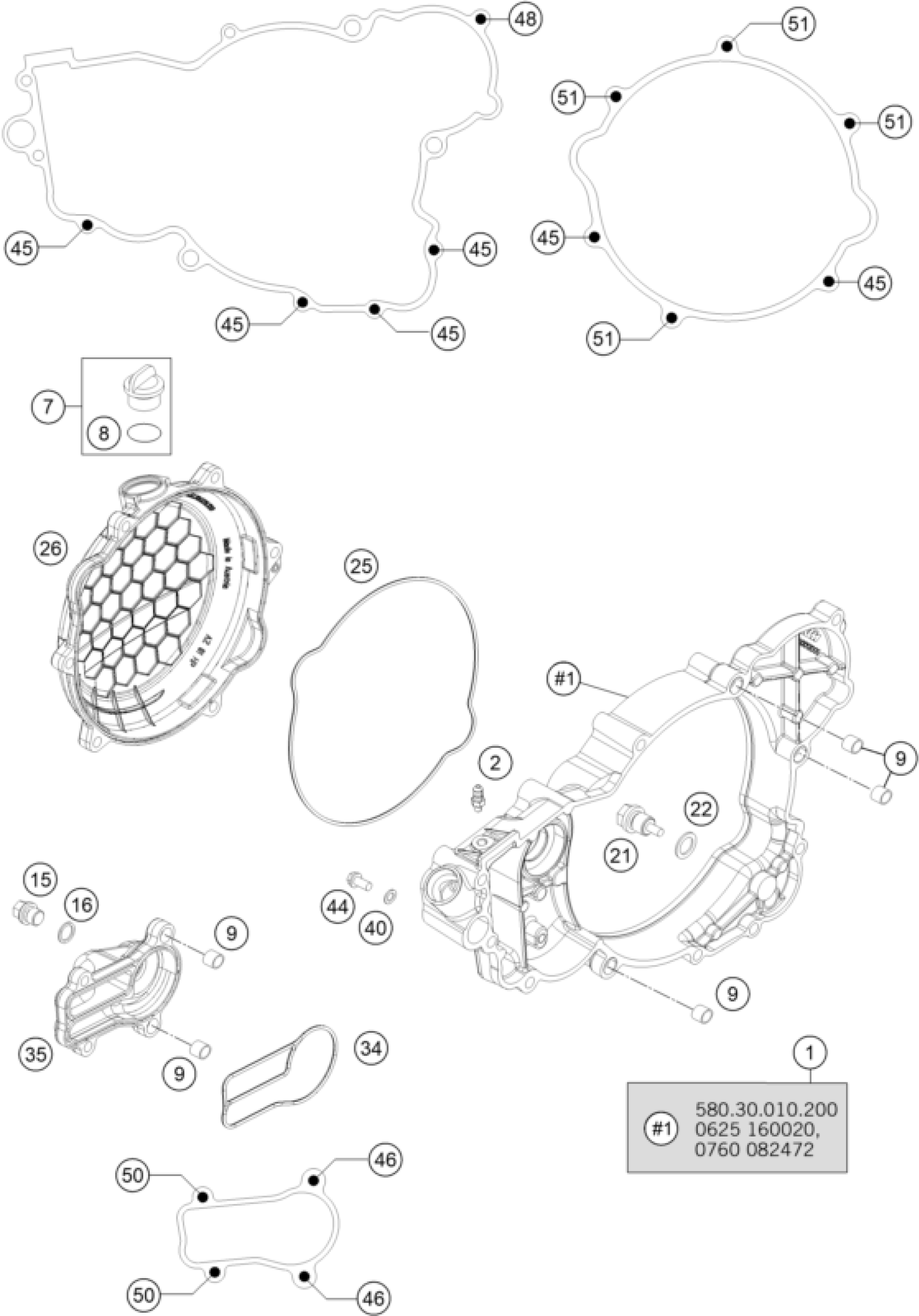

KTM FREERIDE 250 R 2014 CLUTCH COVER Diagram

OIL FILLER CAP M24x3 W. O-R

58030120000

$8.03

INNER CLUTCH COVER CPL.

72530001044

$210.09

O-RING 19,00X3,00 NBR

0770191015

$2.05

DOWEL 9,8 X 7 X 10

49030090000

$2.05

PLUG DIN0910-M 10X1

0910100003

$4.11

sealing ring DIN 7603 10x14x1

0603100141

$2.05

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

CLUTCH COVER GASKET

55130027000

$11.68

CLUTCH OUTSIDE COVER

5513002610015

$77.97

GASKET WAPU-COVER 250 2003

54835003000

$5.98

WATERPUMP COVER 250/300

54835001100

$46.18

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

HH collar screw M6x12 TX30

0025060126

$3.08

HH collar screw M6x20 TX30

0025060206

$3.08

HH collar screw M6x25 TX30

0025060256

$3.08

HH collar screw M6x55 TX30

0025060556

$3.08

HH collar screw M6x60 TX30

0025060606

$3.08

HH collar screw M6x30 TX30

0025060306

$3.08

VACUUM CONNECTION M6X1 ALU AH

58336020290

$7.10
