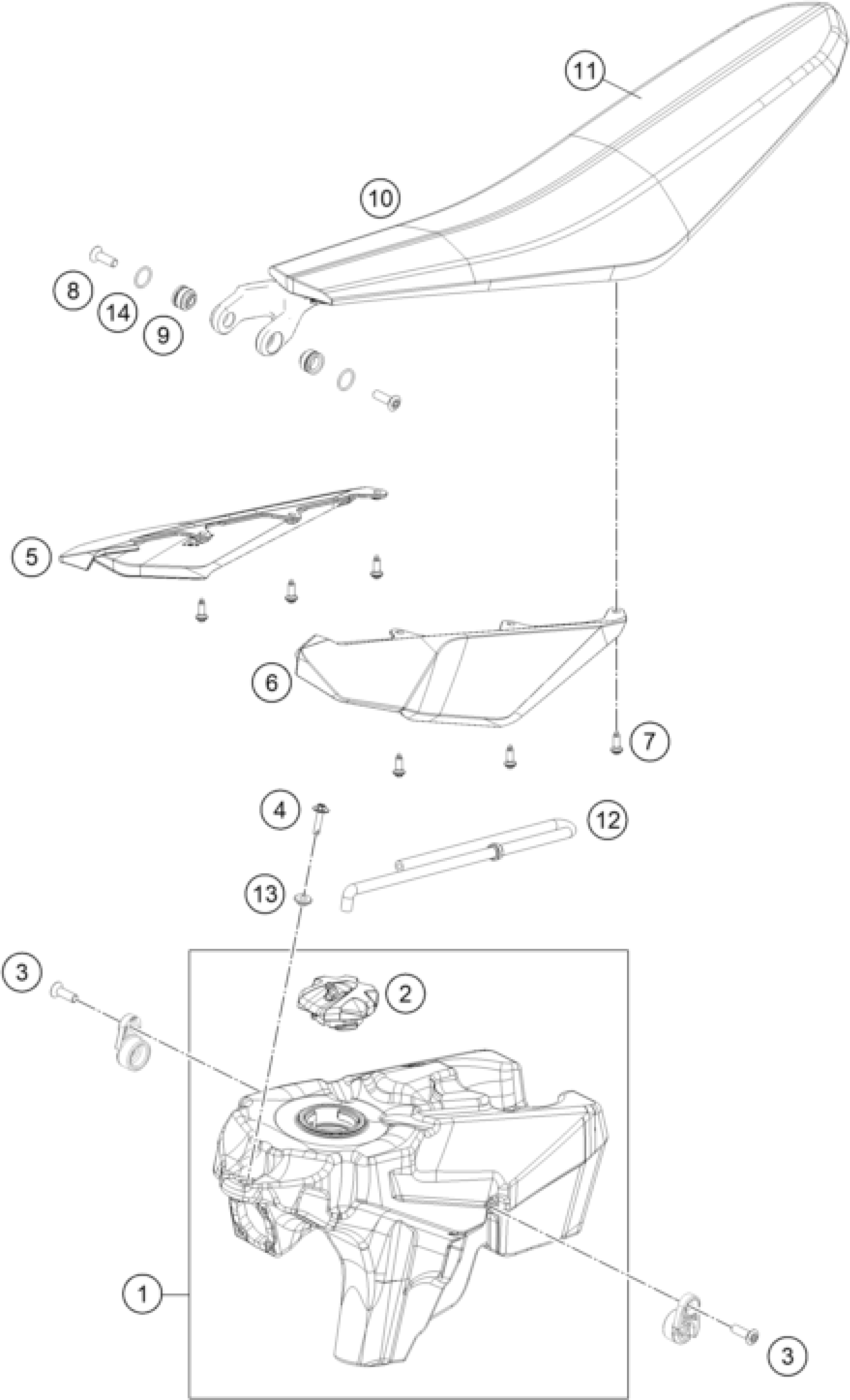

KTM Freeride 250 F 2020 TANK, SEAT Diagram

FUEL TANK CPL. FREERIDE

7200701304499

Unavailable

Tank plug cpl. 14

7810700804404

$29.07

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.49

COLLAR SCREW M6X27 TX

0024060273

$3.08

Batterycov.ri.wh.250F Freeride

7000702505128C

Unavailable

Batterycov.le.wh.250F Freeride

7000702505028C

Unavailable

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

BUSHING

70003001057

$9.81

SEAT HIGH CPL. '13

70007040100

$156.51

SEAT COVER

70007040150

$57.59

TANK BREATHER HOSE+VALVE

72007029000

$39.17

SPACER BUSHING 03

54808020000

$4.11

o-ring 18.00x2.00 NBR70

0770180020

$2.05
