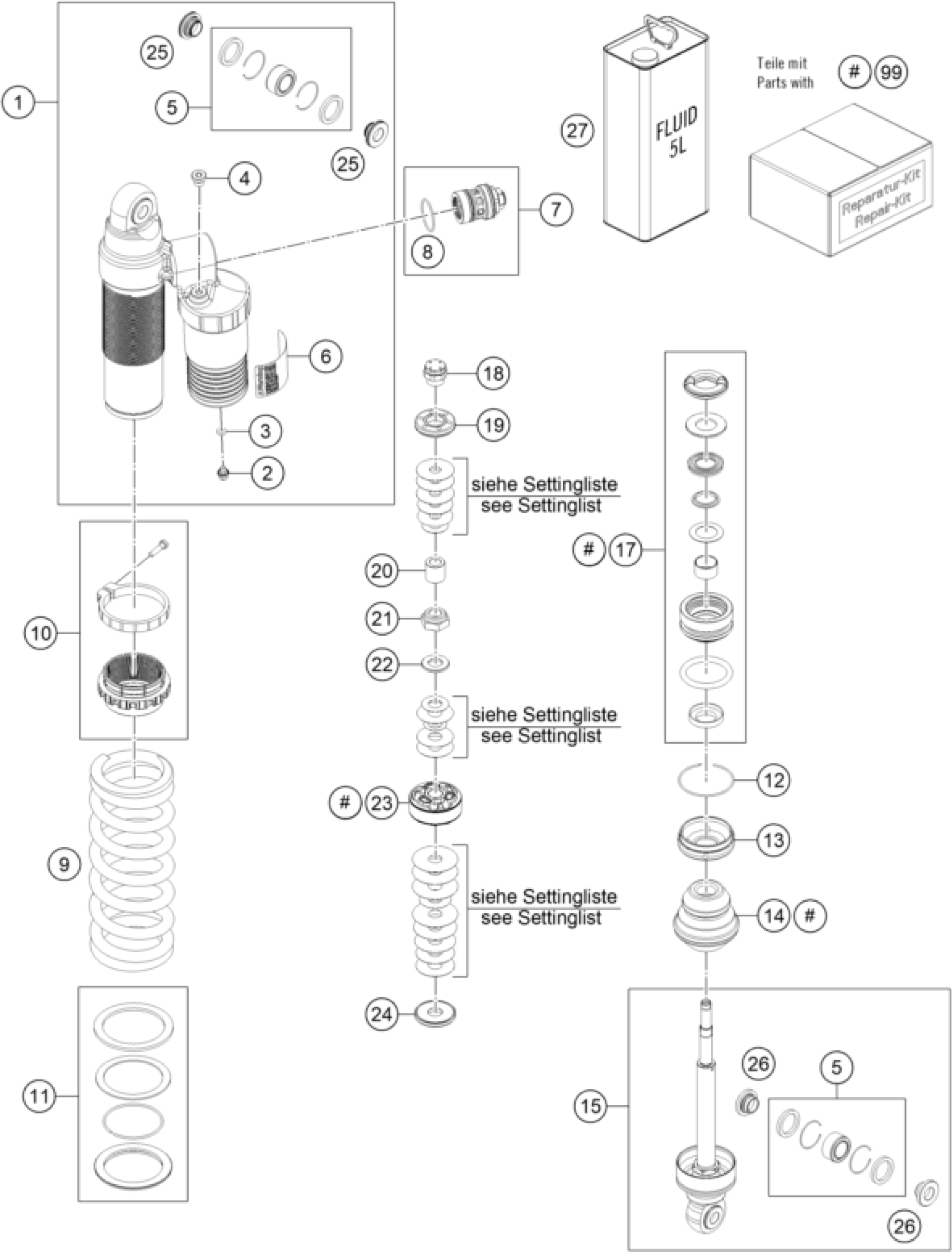

KTM Freeride 250 F 2019 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Monoshock M53x1 with pipe cpl.

46181267S1

Unavailable

2

HS lock screw M5x6

36120151

$1.86

3

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

4

HS cylinder-head screw R1/8 l8

50180095

$2.42

5

Ball joint bearing kit top 12m

R12012

$35.71

6

STICKER WP WARNING 65X40

52000143

$7.00

7

50181101S34

Unavailable

8

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

9

Mainspring (59-61-59) 58/68/78

91020028

$288.91

9

Mainspring (59) 58-66-74-200 d

91020027

Unavailable

9

Spring I=200mm 69N/mm white

91010378

Unavailable

10

Spring retainer M55x2x75x40 pl

46181228S

$35.05

11

SPRING CUP SET PDS 17

RP10005

$32.53

12

Round-wire snap ring 49x1,5

46810010

$3.08

13

Cover 46,12x6,2 h15,7

46180338

$34.49

14

Rubber pad 17x48x55

46181237

$19.35

15

Schock absorber bot. cpl.

46181301S2

$488.29

17

Sealholder 46x28 cpl.

46180669S

$70.54

18

Nut PDS M10x1 h17,2 WAF19 cpl.

46181365S

$57.40

19

Piston 15x35,4x6 4

46181184

$15.04

20

Bush 10x17x17

46181025

$5.23

21

Piston rod nut M12x1

46810474

$5.23

22

Washer 12x24x2,5

46811258

$24.77

23

Piston 12x46x20 cpl.

46181328S

$68.25

24

Rebound disc 12x36x4 h0

46181194

$12.89

25

Distance bush 12x15/18,5/24,5x

46181105

$10.84

26

Distance bush 12x15/18/24,5x10

46180007

$17.76

27

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

99

Repairing kit shock absorber P

RP10020

$121.54
