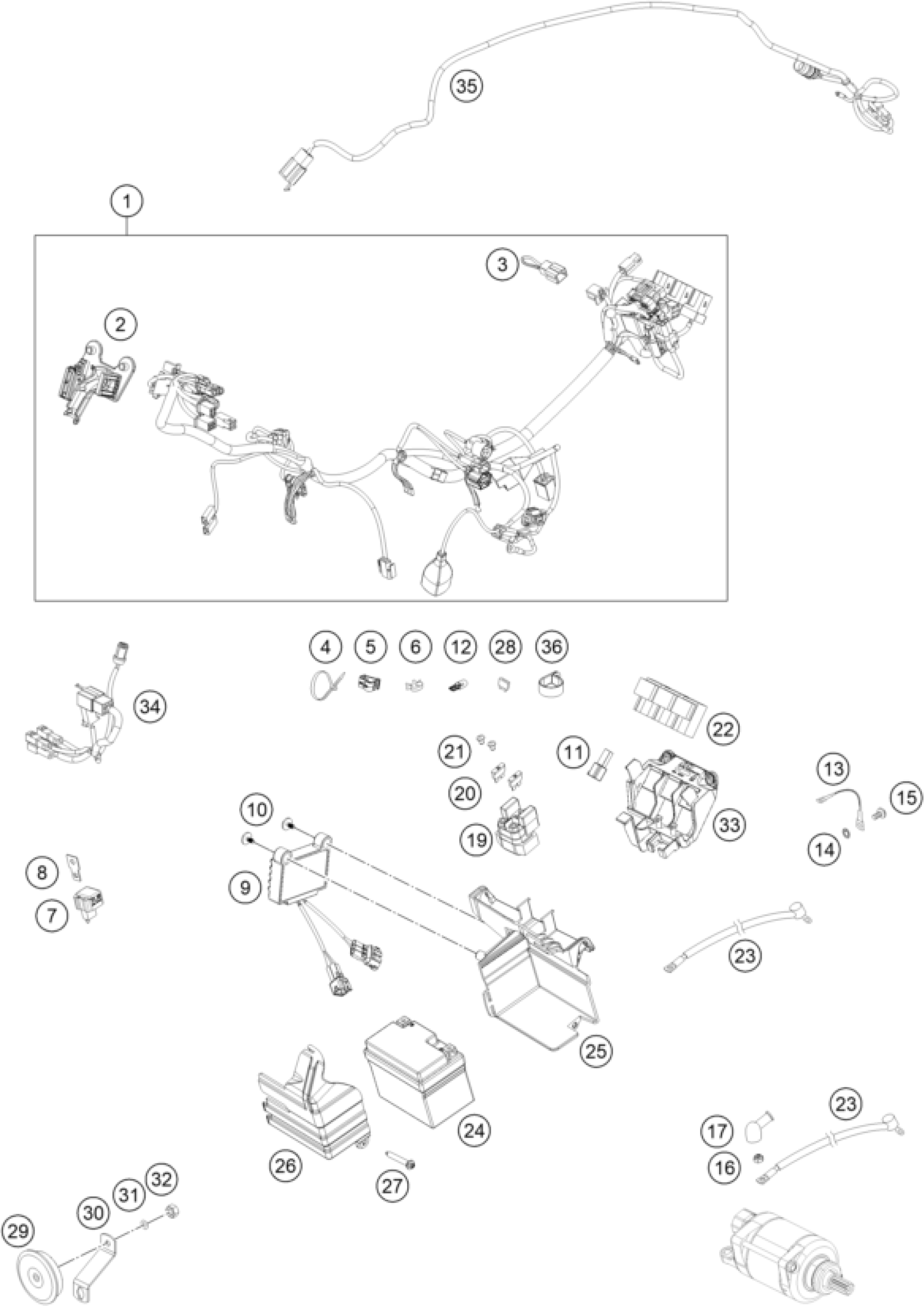

KTM Freeride 250 F 2018 WIRING HARNESS Diagram

#

Description
Price

1

Main harness cpl. Freeride 18

72111075033

Unavailable

2

SUPPORT BRACKET

77711083000

$22.52

3

Plug Key Lock

79611020000

$10.84

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

WIRING HOLDER 16MM

57013072100

$1.49

7

FLASHER UNIT

76511030000

$23.18

8

BRACKET FOR FLASHER RELAY

58211031100

$5.70

9

VOLTAGE REGULATOR

79611034000

$192.32

10

EJOT PT SCREW K50X12 WN5452

0081650121

$2.05

11

END PLUG CAN-BUS 08

69011040000

$20.00

12

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

13

GROUND CABLE

72511097000

$15.70

14

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

15

COLLAR SCREW M6X12 TX

0024060123

$1.49

16

Self lock. nut DIN985-M6-A2

0985060003

$2.05

17

Protection cap for starter eng

77240099000

$6.35

19

Starter relay

76211058000

$79.19

20

Plug-in fuse, big 20A

58011109120

$1.49

21

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

22

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

23

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

24

LITHIUM ION BATTERY 5S

77311953000

$166.05

25

Battery holding compartment

72111054000

Unavailable

26

Battery mounting cap

72111054010

Unavailable

27

SPECIAL SCREW T60 6X40 WS=6

0017060405

$3.08

28

FUSE MINI 5A

75011088005

Unavailable

28

FUSE 10A 07

75011088010

Unavailable

29

DC HORN 12V 07

50311060200

$32.44

31

WASHER DIN0125-A 5,3

0125050003

$1.49

30

HORN BRACKET EXC 08

78011061000

$5.23

32

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

33

Electric tray

72111052000

Unavailable

34

Flasher harness front

72111080000

$63.10

35

Flasher harness rear

72111081000

Unavailable

36

Clamp D=25,4 mm

57013070500

Unavailable
