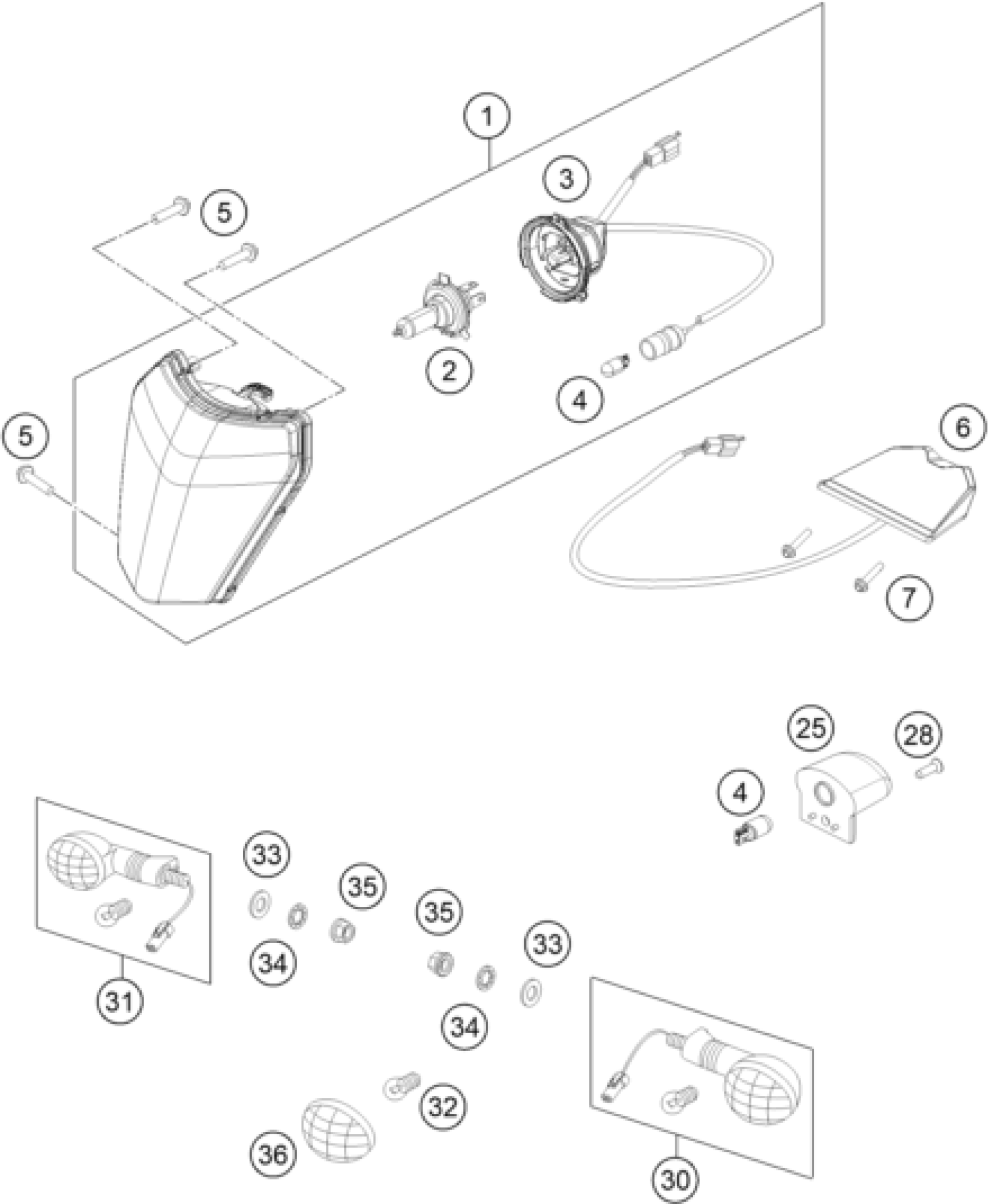

KTM Freeride 250 F 2018 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. 2013

78114001000

$140.52

2

BULB HS1 12V 35/35W WHITE

54611038012

$33.28

3

LAMP BRACKET CPL. 2014

78114001050

$44.50

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

5

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

6

REAR LIGHT

78114040000

$121.64

7

EJOT PT SCREW K60X25-Z SW6

0017060255

$3.08

25

Number plate light

75014047100

$10.37

28

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

30

FLASHER CPL. FR.L/S RE.R/S 09

54814025200

$37.20

31

FLASHER CPL. FR.R/S RE.L/S 09

54814026200

$37.20

32

BULB 12V 10W (BA15S)

44111015100

$3.08

33

washer DIN 125 A 10.5

0125100003

$2.05

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

36

FLASHER LENS L/S R/S 05

54814028000

$6.72
