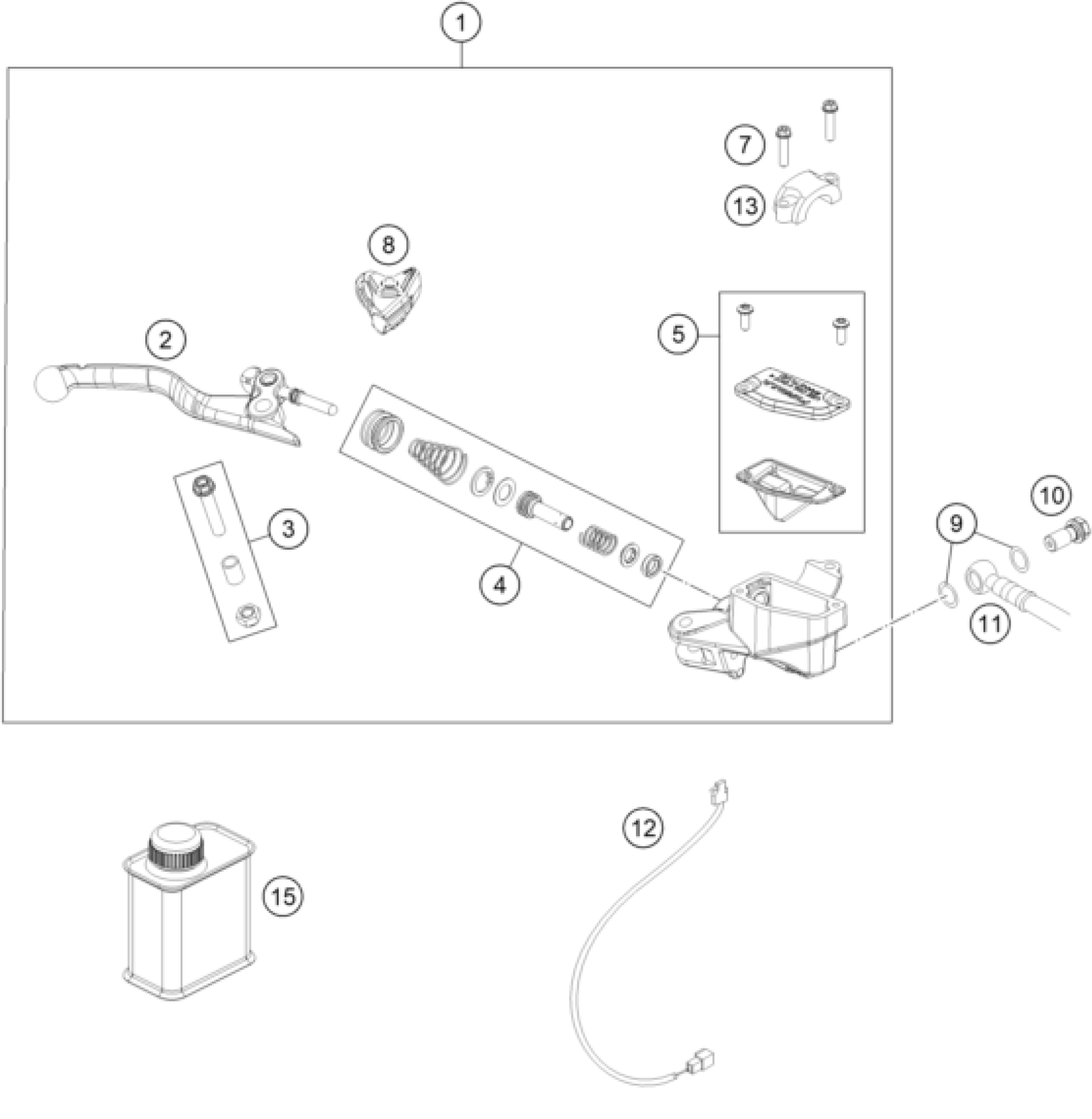

KTM Freeride 250 F 2018 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

HAND BRAKE CYLINDER CPL. 10MM

70013001100

$324.72

2

Lever cmpl.

72013002000

$45.15

3

LEVER SCREW CPL.

70002038000

$26.17

4

REP. SET PISTON 10MM

72013008000

$48.99

5

COVER HAND BRAKE CYLINDER CPL.

70013003000

$42.53

7

HH collar screw M6x25 TX30

0025060256

$3.08

8

MUDCOVER HANDBRAKE LEVER

70013004000

$15.70

9

O-RING 8,00X1,00 FORMULA

0770080019

$2.05

10

Hollow screw, brake cylinder 0

47013025000

$10.84

11

Brake hose front

72113010000

Unavailable

13

CLAMP

72013005000

Unavailable

15

Brake fluid DOT5.1 0,25L

00062030000

$12.52

12

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60
