Description

Price

1

Muffler right

72105081000

Unavailable

2

Muffler left

72105080000

Unavailable

3

ROCKWOOL PREFORMED REAR

72005078200

Unavailable

4

ROCKWOOL PREFORMED FRONT

72005078070

Unavailable

5

SCREW TORX M5X10

78105081010

$2.05

7

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

8

HH collar screw M6x16 TX30

0025060166

$3.08

9

GASKET EXHAUST FLANGE

77236041000

$10.93

10

Manifold cpl.

72105007000

Unavailable

11

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

12

DAMP. COMPON. BLACK

77205068000

$6.54

13

HH collar screw M8x25

0025080256

$2.05

15

LAMBDA SENSOR

75041090200

$327.34

16

Connection cap right cpl.

72105081050

Unavailable

17

Connection cap left cpl.

72105080050

Unavailable

21

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

22

HH collar screw M8x20 TX40 SL

0025080206S

$2.05

80

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable

99

EXHAUST PARTS KIT FREERIDE

00050000816

Unavailable

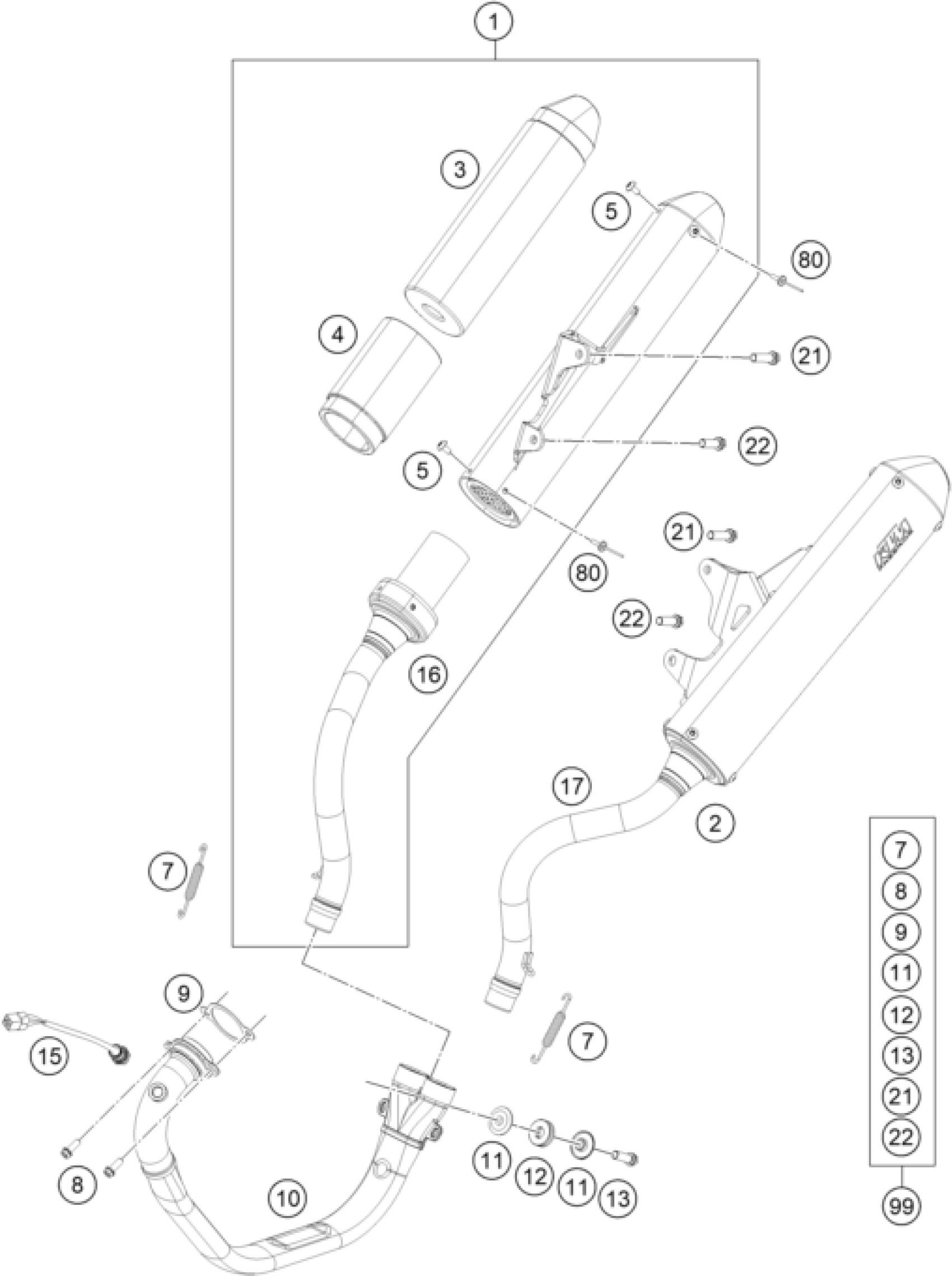

KTM Freeride 250 F 2018 EXHAUST SYSTEM Diagram

Muffler right

Muffler left

ROCKWOOL PREFORMED REAR

ROCKWOOL PREFORMED FRONT

SCREW TORX M5X10

TEN.SPRING L=62MM EY.MOVEABLE

HH collar screw M6x16 TX30

GASKET EXHAUST FLANGE

Manifold cpl.

BUSHING FOR EXHAUST SUPPORT 03

DAMP. COMPON. BLACK

HH collar screw M8x25

LAMBDA SENSOR

Connection cap right cpl.

Connection cap left cpl.

HH COLLAR SCREW M8X25 TX40

HH collar screw M8x20 TX40 SL

DUMMY RIVET 4,0X12 ALU

EXHAUST PARTS KIT FREERIDE
