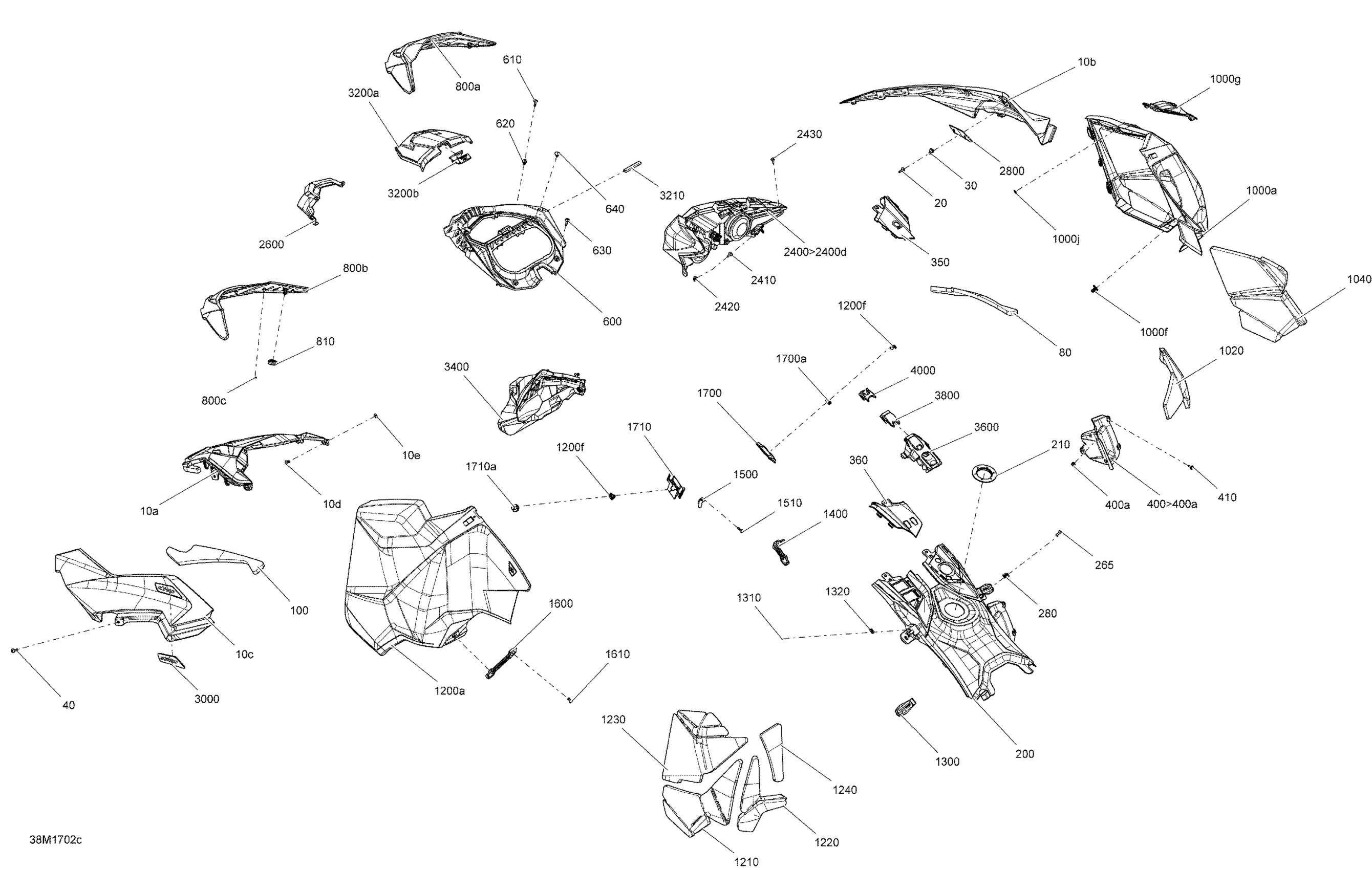

Ski-Doo FREERIDE, 2017 Hood - All Models Diagram

#

Description
Price

10a

Green Center Hood | Package X

517305636

$198.43

10b

Gulfstream Blue, RH Hood

517306120

$192.28

10c

Gulfstream Blue, LH Hood

517306121

$192.28

10d

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

10e

Washer

517124300

$0.16

20

Torx Screw M5 X 20

250000528

$1.74

30

Panel Nut M5 X 0.8

250000958

$3.48

40

Torx Screw M5 X 26

250000587

$3.61

80

RH Rear Hood Foam

517305090

$12.69

100

LH Rear Hood Foam

517305091

$12.69

200

Deep Black, Rear Console

517305641

$212.28

210

Console Nut

517304518

$13.78

265

Torx Truss Screw M6 X 20

250000705

$1.74

280

Panel Nut M6 X 1.0

250100198

$1.73

350

Deep Black, RH Front Console

517305549

$18.43

360

Deep Black, LH Front Console

517305128

$29.97

400>400a

Deep Black RH Console | Package XRS

517305060

$33.82

400a

Black, Cap

275500241

$2.76

410

Screw M4 X 16

250000725

$2.87

600

Deep Black, Indicator Support

517305512

$61.51

610

Torx Screw M5 X 20

250000528

$1.74

620

Panel Nut M5 X 0.8

250000958

$3.48

630

Torx Screw M5 X 26

250000587

$3.61

640

Black, Dart

414644300

$0.78

800a

Pare-Brise Ub *Windshield | Package XRS This part replaces 517304931.

860200901

$102.28

800b

Short Windshield Support

517305617

$35.99

800c

Push Nut

732610072

$1.72

810

Grommet

517303756

$3.15

1000a

Gulfstream Blue - RH Panel | with Manual Start

517306154

$207.66

1000a

Gulfstream Blue - RH Panel | with Electric Start

517306156

$207.66

1000f

Pin

517305734

$3.40

1000g

RH Panel Vent Grid Deep Black

517305140

$29.20

1000j

Push Nut

250100158

$1.74

1020

RH Rear Panel Foam

517305085

$18.43

1040

RH Upper Panel Foam

517305082

$40.74

1200a

Gulfstream Blue - LH Panel

517306173

$212.28

1200f

Pin

517305734

$3.40

1210

LH CENTER PANEL FOAM - Call your local BRP dealership

517305087

$23.05

1220

LH Lower Panel Foam

517305088

$18.43

1230

LH Upper Panel Foam

517305086

$18.43

1240

LH REAR PANEL FOAM - Call your local BRP dealership

517305089

$10.20

1300

Panel Latch

517305279

$14.85

1310

Hexalob Screw M4 X 10

250000565

$1.74

1320

Weld Nut M4

250100156

$4.25

1400

RH Panel Latch

517303612

$9.49

1500

Latch Support

517304221

$6.49

1510

Torx Screw M5 X 20

250000792

$1.74

1600

LH Panel Latch

517303808

$9.91

1610

Pop Rivet 3/16”

293150108

$1.23

1700

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.69

1700a

Ring

517305723

$3.31

1710

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.69

1710a

Ring

517305723

$3.31

2400>2400d

Headlamp

517306180

$233.05

2400a

Cap

219400070

$16.89

2400b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

2400c

Holder Bracket

219800282

$5.49

2400d

Spring

219800281

$3.23

2410

Torx Screw M5 X 20

250000528

$1.74

2420

Jack Nut M5

250100035

$6.03

2430

Screw M4 X 16

250000725

$2.87

2600

Enjoliveur *Cap

517305618

$34.58

2800

RH Hood Filler Plate, SKI-DOO | Package XRS

517305137

$12.45

3000

LH Hood Filler Plate, SKI-DOO | Package XRS

517305138

Unavailable

3200a

Deep Black, Upper Storage Access Cover

517304912

$15.35

3200b

Cover Latch

517304917

$10.23

3210

Seal Joint

517305157

$2.28

3400

Deep Black, Trunk

517305095

$18.43

3600

Deep Black, Console Support

517304970

$11.45

3800

Deep Black, Support Console Cap

517305148

$4.66

4000

Deep Black, Support Console Cap

517305147

$4.57
