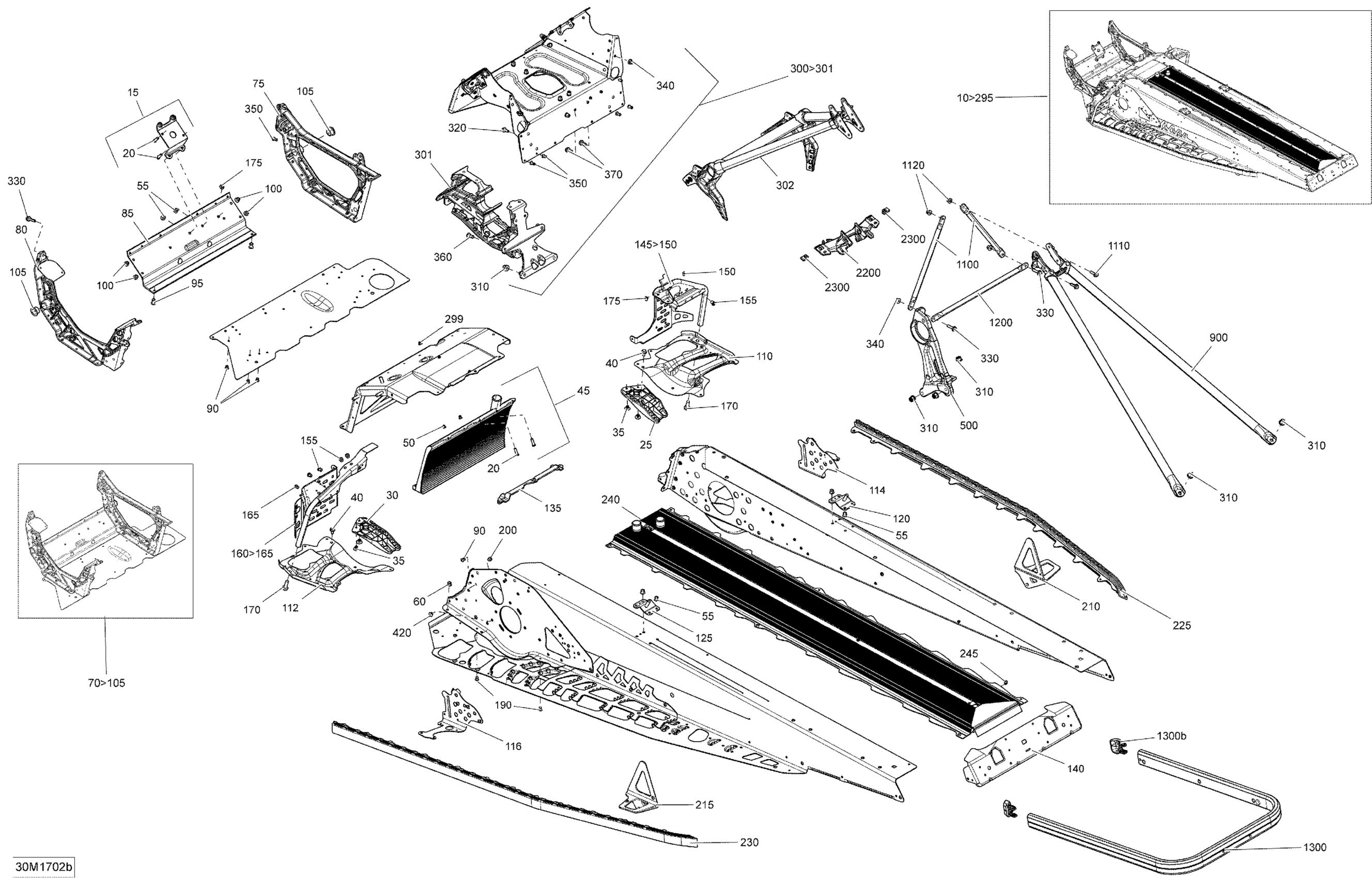

Ski-Doo FREERIDE, 2017 Frame - Model 137 Diagram

GULFSTREAM FRAME FREERIDE 137 - Call your local BRP dealership | Includes 1 to 295

415130118

Unavailable

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

Clinch Stud M6 X 20

250300027

$1.92

RH Deflector, Black Polypropylene

518325782

$11.77

LH Deflector, Black Polypropylene

518325783

$11.77

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

Front Radiator | Includes 10b to 10b2

518326485

$434.58

Rivet Avibulb 3/16

293150203

$0.29

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

E Module | Includes 10n to 10at

518327567

$428.43

RH Member

518326795

$259.97

LH Member

518326796

$210.74

Front Member

518326198

$59.97

Stavex Rivet

293150144

$0.77

Hemlock Rivet 6.5 mm

293150120

$7.23

Hemlock Rivet, 6.5 mm

293150119

$4.00

Leg Cushion

505073317

$5.92

RH Reinforcement, Running Board

518326937

$25.35

LH Reinforcement, Running Board

518326938

$25.35

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

RH Rear Base

518325973

$18.43

LH Rear Base | Includes 10v to 10x

518325974

$18.43

Clinch Stud

250300038

$4.00

Seal

518326656

$8.43

Rear Cap

518327105

$20.74

RH Stirup

518328940

$166.12

Avex Rivet

390909200

$0.29

Insert M5 X 0.8

293450268

$1.95

LH Stirup | Includes 10s to 10t

518328528

$166.12

Avex Rivet

390909200

$0.29

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

Full Moon Dart 5 mm

293730042

$2.12

Insert M5 X 0.8

293450268

$1.95

Rivet Avibulb 3/16

293150203

$0.29

Avex Rivet

390909100

$0.29

Stavex Rivet

293150144

$0.77

Henrob Rivet

293150146

$1.92

Hemlock Rivet, 6.5 mm

293150119

$4.00

Rh Suspension Bracket

518326954

$36.89

LH Suspension Bracket

518326955

$37.66

RH Roller | Package Iron Dog

518327200

$152.28

LH ROLLER - Call your local BRP dealership | Package Iron Dog

518327201

Unavailable

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$762.28

Stavex Rivet

293150144

$0.77

Rivet Avibulb 3/16

293150203

$0.29

Pop Rivet 3/16"

390402400

$0.25

Cross Member S Module | Package Iron Dog

518328322

$439.20

Front Suspension Support

518327487

$267.66

Front Member

518327565

$316.12

Hex. Flange Elastic Nut M8

233281414

$1.14

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Monobolt Rivet, 4.8 mm

293150191

$0.95

Monobolt Rivet 6.4

293150182

$2.91

Hex. Flange Screw M6 X 16

207661644

$0.61

Black Dart 5 mm

293730053

$3.73

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

Hex. Flange Elastic Nut M8

233281414

$1.14

Rear Member

518326559

$244.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Lateral Column Support

518325114

$20.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Center Column Support

518325115

$20.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Black Rear Bumper 137'' | North America

518326979

$117.66

Black Rear Bumper Ass'y | Europe

518327802

Unavailable

Black Rear Bumper | Europe

518327803

$114.99

Black RH Cap

520000965

$8.97

Black LH Cap

520000964

$8.97

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.68

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Washer

517124300

$0.16

Sub A Support

518327145

$79.20

Panel Nut M5 X 0.8

250000958

$3.48

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11
