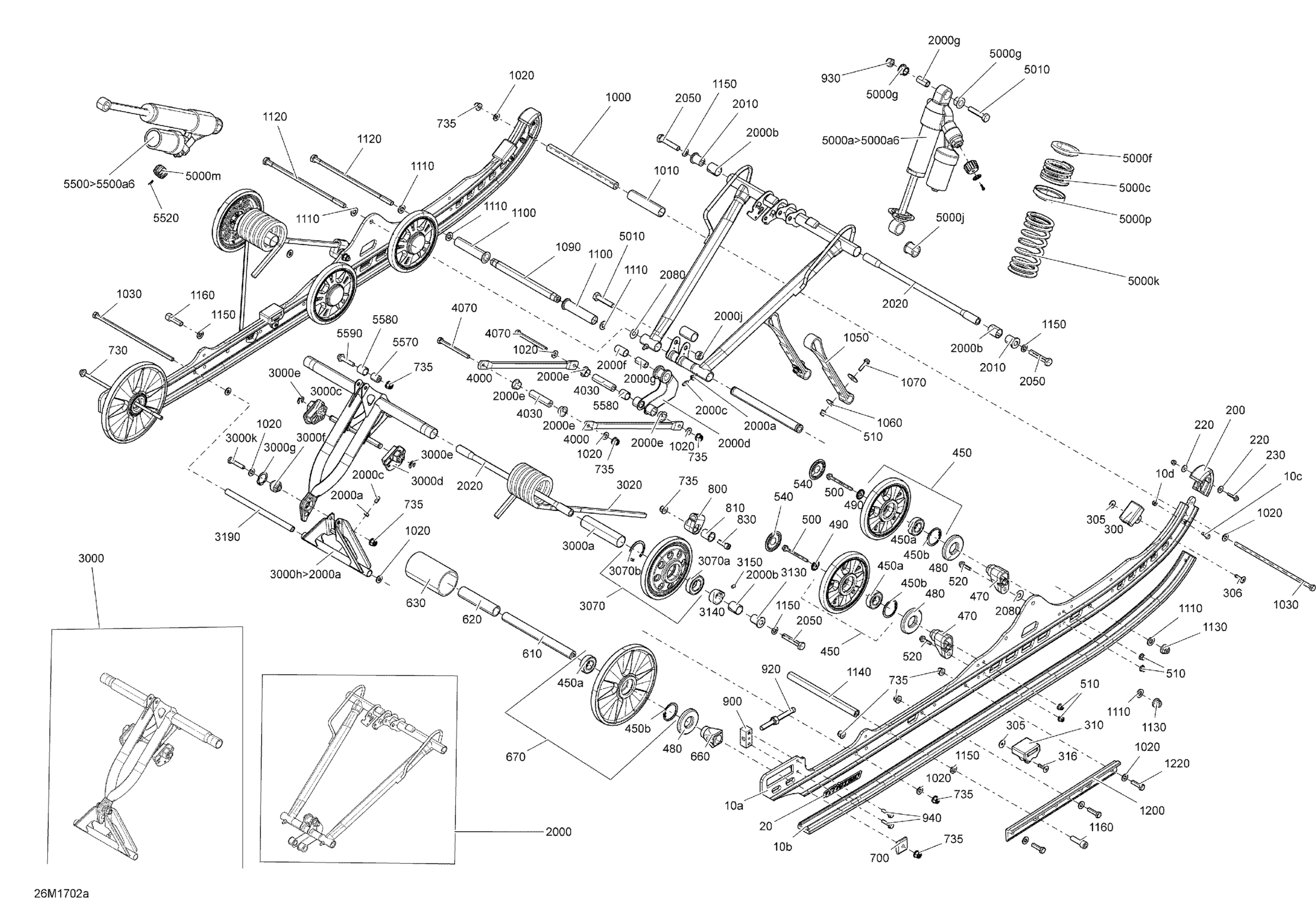

Ski-Doo FREERIDE, 2017 Rear Suspension - Model 146 and 154 Diagram

#

Description
Price

10a

Black Runner 146" | Includes 10,001 to 10,002

503193827

$286.12

10a

Black Runner 154" | Includes 10,001 to 10,002

503193828

$286.12

10b

Black, Slider 146

503191499

$33.05

10b

Black, Slider 154

503191198

$33.05

10c

Phillips Screw M6 X 25

208562531

$1.74

10d

Elastic Stop Nut M6

232561414

$1.55

20

Runner Decal

516006381

$12.80

200

Runner Protector

503192299

$23.82

220

Washer

250200140

$0.83

230

Hex. Flange Screw M5 X 25

207652544

$0.42

300

Rubber Stopper

503190576

$10.23

305

Washer

503191273

$1.06

306

Pop Rivet 3/16

293150224

$0.98

310

Rubber Stopper

503193512

$12.69

315

Washer

503191273

$1.06

316

Pop Rivet 3/16"

293150013

$1.11

450>450b

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

450a

Ball Bearing | Package-STD

503190396

$7.12

450b

Retaining Ring

415129371

$8.92

460>460b

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

460a

Ball Bearing | Package-STD

503190396

$7.12

460b

Retaining Ring

415129371

$8.92

470

Casted Support

503193894

$12.75

480

Labyrinth Seal

503190434

$4.29

490

Wheel Cup M6

503191820

$4.66

500

Hex. Flange Screw M6 X 70

207667056

$3.61

510

Hex. Flange Elastic Nut M6

233261466

$1.66

520

Hex. Flange Screw M6 X 25

207662556

$3.61

530

Hex. Flange Elastic Nut M6

233261466

$1.66

540

Black, Wheel Cap

503192771

$2.28

610

Rear Axle

503194200

$72.28

620

Rear Spacer

503191263

$15.35

630

Bushing

503193097

$7.52

660

Rear Wheel Spacer

503190428

$6.06

670>670b

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$49.97

670a

Ball Bearing | Package-STD

503190396

$7.12

670b

Retaining Ring

415129371

$8.92

690

Labyrinth Seal

503190434

$4.29

700

Axle Slider

503194412

$11.45

730

Bolt

503194265

$26.89

735

Elastic Flange Nut M8

233281466

$0.83

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

830

Socket Screw M8 X 25

205082554

$1.74

840

Elastic Flange Nut M8

233281466

$0.83

900

Tensioner

503193808

$38.43

920

Hex Screw M10 x 100

230100054

$5.29

930

Elastic Locking Nut M10

233601466

$1.74

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1000

STRAP AXLE - Call your local BRP dealership

503193332

Unavailable

1010

Spacer

503189265

$4.75

1020

Washer

503192494

$3.11

1030

Bolt M8 X 248mm

503192440

$29.97

1040

Elastic Flange Nut M8

233281466

$0.83

1050

Stopper Strap

503194679

$28.43

1060

Washer | Not Shown

503193995

$4.38

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

1080

Hex. Flange Elastic Nut M6

233261466

$1.66

1090

Pivot Axle

503193435

$38.43

1100

Center Bushing

503191259

$8.97

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

$16.12

1130

Flange Elastic Nut M10

233201466

$2.63

1140

Black Strap Axle

503194522

Unavailable

1150

Washer

503192496

$0.75

1160

Socket Head Screw M10 X 35

205503554

$6.18

1200

Black Runner Reinforcement

503193853

$53.82

1210

Washer

503192494

$3.11

1220

Hex. Cap Screw M8 X 30

207183054

$3.61

1230

Elastic Flange Nut M8

233281466

$0.83

2000>2000j

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$239.97

2000a

Hexagonal Nut M6

232061404

$0.32

2000b

Extended Bushing

503191556

$5.71

2000c

Grease Fitting

408200700

$2.80

2000d

Rocker

503193464

$78.43

2000e

Swivel Bushing

503191555

$5.71

2000f

Bushing

503193037

$15.35

2000g

Bushing | Includes 240d to 240d1

503189282

$4.18

2000h

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

2000j

Elastic Locking Nut M10 X 1.5

233601416

$1.68

2010

Bushing

503194000

$13.49

2020

Upper Shaft

503193441

$36.12

2030

Washer

503192496

$0.75

2050

Hex. Screw S.Grip M10 X 55

250000605

$6.18

2080

Washer

250200032

$4.98

2100

Flat Washer

250200143

$2.63

2110

Bolt M10 X 251MM

503193227

$16.12

2120

Flange Elastic Nut M10

233201466

$2.63

3000>3000q

Rear Arm Ass'y | Included 3000 to 3000q

503194296

$424.58

3000a

Bushing

503193218

$9.98

3000b

Swivel Bushing

503191555

$5.71

3000c

LH Cam Adjuster

503191565

$13.95

3000d

RH Cam Adjuster

503191566

$13.95

3000e

E-Circlip

293370013

$0.62

3000f

Radial Joint

503194035

$69.97

3000g

Inner Circlip

293370114

$4.38

3000h

Pivot Arm

503193699

$122.28

3000j>3000j1

Hexagonal Nut M6

232061404

$0.32

3000k

Hex. Screw M8 X 1.25 X 40

207084056

$2.63

3000m

Elastic Flange Nut M8

233281466

$0.83

3000n

Grease Fitting

408200700

$2.80

3000p

Washer

503192494

$3.11

3000q

Extended Bushing

503191556

$5.71

3010

Black, LH Spring Square

503193158

$77.66

3020

Black, RH Spring Square

503193159

$77.66

3070>3070b

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3120

Upper Shaft

503193441

$36.12

3130

Bushing

503194000

$13.49

3140

Retaining Ring

503193439

$13.95

3150

Socket Set Screw M6 X 8

206260844

$1.25

3160

Loctite 243, 10 ml

293800060

$20.77

3170

Washer

503192496

$0.75

3180

Hex. Screw S.Grip M10 X 55

250000605

$6.18

3190

Pivot Arm Axle

503189156

$20.74

3200

Washer

503192494

$3.11

3210

Bolt M8 X 248mm

503192440

$29.97

3220

Elastic Flange Nut M8

233281466

$0.83

4000

Acceleration Link Rod

503192900

$27.66

4030

Axle Bar (Long)

503190643

$15.35

4060

Washer

503192494

$3.11

4070

Screw M8 X 90

503193372

$4.28

4080

Elastic Flange Nut M8

233281466

$0.83

4090

Axle Bar (Long)

503190643

$15.35

4100

Washer

503192494

$3.11

4120

Screw M8 X 90

503193372

$4.28

4130

Elastic Flange Nut M8

233281466

$0.83

5000a>5000a6

Center Shock | Includes 5000 to 5000j

503194071

$812.99

5000a1

O-Ring

415093807

$34.58

5000a2

Piston Ring | Not Shown

415093806

$14.97

5000a3

Air Valve

505070398

$17.66

5000a4

Screw | Not Shown

505070399

$4.00

5000a5

O-Ring

505070400

$4.38

5000a6

O-Ring

415093804

$4.38

5000c

Black, Spring (52mm) Short

503193479

$88.43

5000f

Spring Stopper

503194270

$16.89

5000g

Urethane Bushing

503189117

$6.88

5000h

Bushing | Includes 240d to 240d1

503189282

$4.18

5000j

Bushing

503189271

$10.46

5000k

Black, Spring (162mm) Long

503193065

$71.51

5000m

Shock Adjuster Knob

503193033

$7.58

5000n

Allen Screw M3 X 0.5 X 10

250000644

$1.74

5000p

Spring Spacer

503192743

$12.65

5010

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

5020

Elastic Locking Nut M10

233601466

$1.74

5500>5500a6

Rear Shock | Includes 5500 to 5500j

503192964

$877.49

5500a1

O-Ring

415093807

$34.58

5500a2

Piston Ring | Not Shown

415093806

$14.97

5500a3

Air Valve

505070398

$17.66

5500a4

Screw | Not Shown

505070399

$4.00

5500a5

O-Ring

505070400

$4.38

5500a6

O-Ring

415093804

$4.38

5510

Shock Adjuster Knob

503193033

$7.58

5520

Allen Screw M3 X 0.5 X 10

250000644

$1.74

5570

Axle Shock Absorber

503196509

$11.98

5580

Leg Cushion

505072663

$7.40

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83
