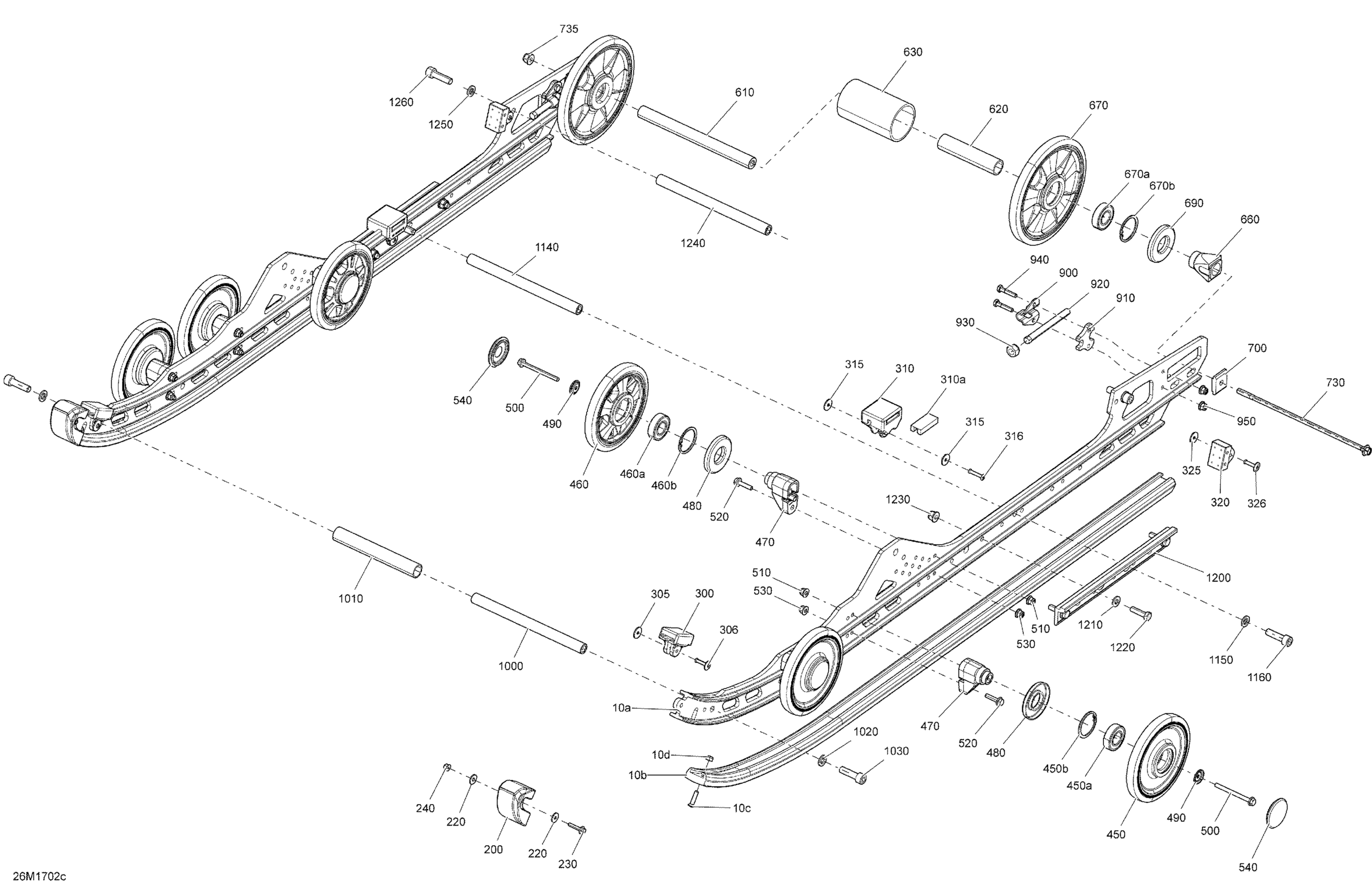

Ski-Doo FREERIDE, 2017 Rear Suspension - Model 137 - Inferior Diagram

#

Description
Price

10a

Black, Runner 137"

503193552

$272.36

10b

Black, Slider Shoe 137''

503191306

$26.84

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561414

$1.78

200

Slide Protector

503192530

$16.39

220

Washer

250200140

$0.96

230

Hex. Flange Screw M5 X 25

207652544

$0.48

240

Hex. Flange Elastic Nut M5

233251414

$1.91

300

Rubber Stopper

503190576

$9.93

305

Washer

503191273

$1.03

306

Pop Rivet 3/16

293150224

$0.96

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$17.13

310a

Reinforcement Stopper

572084800

$5.09

315

Washer

503191273

$1.03

316

Pop Rivet 3/16"

293150013

$1.27

320

Rubber Stopper

503192750

$12.27

325

Washer

503191273

$1.03

326

Pop Rivet 3/16

293150224

$0.96

450

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

460a

Ball Bearing | Package-STD

503190396

$8.18

460b

Retaining Ring

415129371

$8.66

470

Casted Support

503193894

$12.37

480

Labyrinth Seal

503190434

$4.16

490

Wheel Cup M6

503191820

$4.52

500

Hex. Flange Screw M6 X 70

207667056

$4.15

510

Hex. Flange Elastic Nut M6

233261466

$1.91

520

Hex. Flange Screw M6 X 25

207662556

$4.15

530

Hex. Flange Elastic Nut M6

233261466

$1.91

540

Black, Wheel Cap

503192771

$2.21

610

Rear Axle

503194200

$70.12

620

Rear Spacer

503191263

$14.90

630

Bushing

503193097

$14.90

660

Rear Wheel Spacer

503190428

$5.88

670

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

670a

Ball Bearing | Package-STD

503190396

$8.18

670b

Retaining Ring

415129371

$8.66

690

Labyrinth Seal

503190434

$4.16

700

Axle Slider

503194412

$11.10

730

Bolt

503194265

$26.09

735

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503192583

$5.67

910

Spacer

503193250

$13.54

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex. Cap Screw M6 X 30

207063054

$5.06

950

Hex. Flange Elastic Nut M6

233261466

$1.91

1000

Axle Strap

503191260

$28.33

1010

Spacer

503196943

$7.36

1020

Washer

503192496

$0.73

1030

Socket Head Screw M10 X 35

205503554

$7.09

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1200

Black Reinforcement Runner

503193726

$52.96

1210

Washer

503192494

$3.01

1220

Hex. Cap Screw M8 X 30

207183054

$4.15

1230

Elastic Flange Nut M8

233281466

$0.96

1240

Axle Strap

503191260

$28.33

1250

Washer

503192496

$0.73

1260

Socket Head Screw M10 X 35

205503554

$7.09
