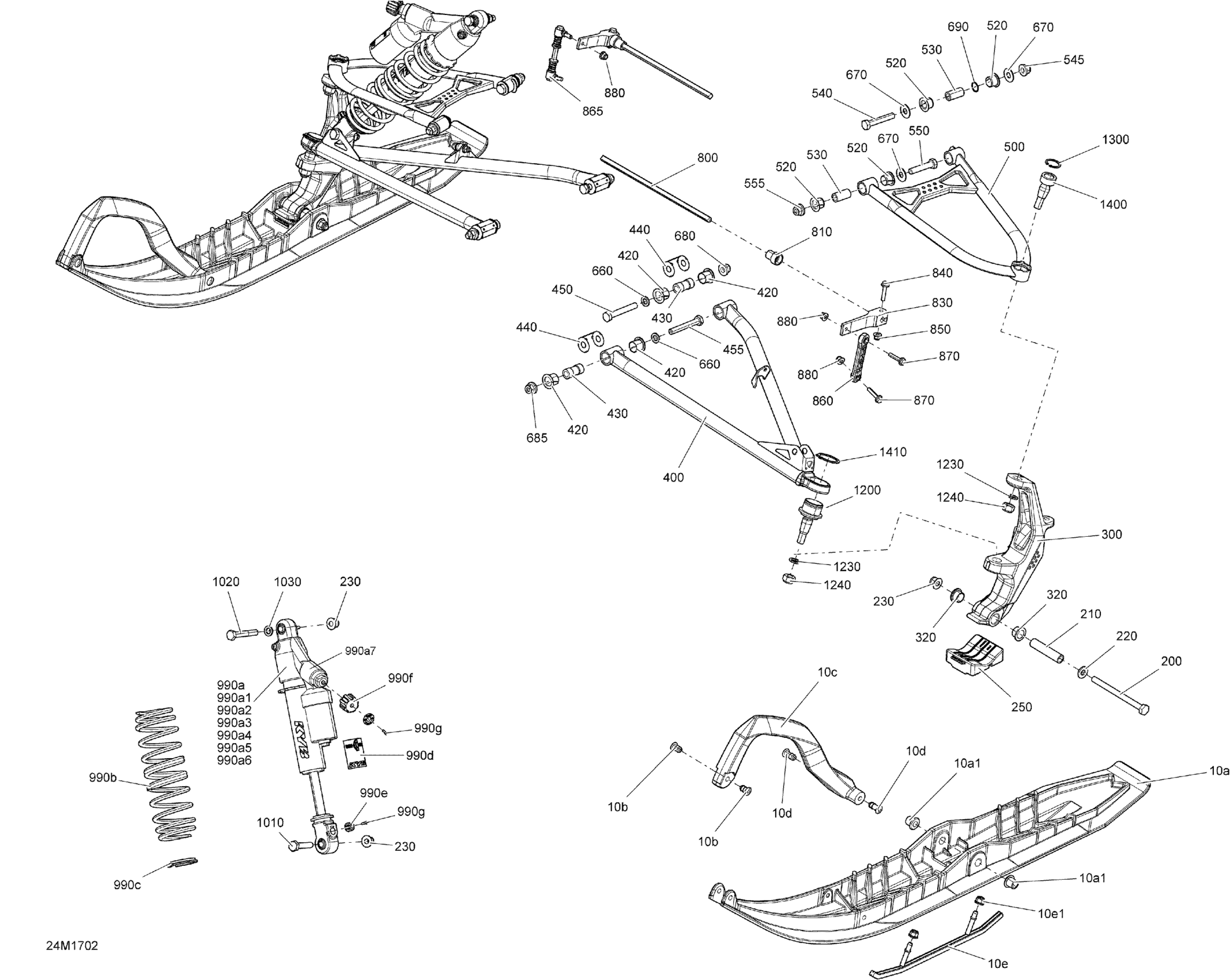

Ski-Doo FREERIDE, 2017 Front Suspension And Ski - All Models Diagram

#

Description
Price

10a>10a1

Green, DS 2 Ski | Model MANTA GREEN

505073354

$186.89

10a1

Ski Bushing

505071781

$15.35

10b

Retainer 17mm long

505071812

$4.43

10c

Black, Handle

505072976

$35.35

10d

Retainer 23mm Long

505072133

$5.03

10e>10e1

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10e1

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Spacer

506133300

$19.97

220

Washer

503192496

$0.75

230

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

250

Ski Stopper

505072594

$17.66

300

Blue LH Ski Leg

505074076

$233.05

300

Blue RH Ski Leg

505074077

$233.05

320

Leg Bushing

505072690

Unavailable

400

Black Epoxy, RH Lower Arm

505073584

$193.82

400

Black Epoxy, LH Lower Arm

505073583

$193.82

420

Bushing

505072208

$3.14

430

Bushing

505072214

$15.26

440

Wear Plate

505072634

$4.45

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

500

Black Epoxy, LH Upper Arm

505073588

$143.05

500

Black Epoxy, RH Upper Arm

505073589

$143.05

520

Bushing

505072250

$3.14

530

Sleeve

505072143

$8.62

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 50

250001022

$1.42

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.72

670

Washer

505072392

$4.65

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

Unavailable

800

Stabilisator

505073609

$65.99

810

Bushing

505072786

$2.22

830

Stabilisator Lever

505073176

$16.12

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

850

Hex. Flange Elastic Nut M6

233261466

$1.66

860

Double Ball Joint Link

505073172

$54.58

865

Double Ball Joint Link

860200811

$93.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

880

Hex. Flange Elastic Nut M6

233261466

$1.66

990a>990a7

RH Front Shock | Includes 990a to 990a7

505073124

$877.49

990a>990a7

LH Front Shock | Includes 990a to 990a7

505073123

$877.49

990a1

O-Ring

415093807

$34.58

990a2

Piston Ring | Not Shown

415093806

$14.97

990a3

Air Valve

505070398

$17.66

990a4

Screw | Not Shown

505070399

$4.00

990a5

O-Ring

505070400

$4.38

990a6

O-Ring

415093804

$4.38

990a7

Base Valve

415130165

$74.58

990b

Deep Black, Spring

505072760

$51.51

990c

Spring Stopper

503194270

$16.89

990d

Shock Adjustment Decal

516005534

$12.95

990e

Adjustment Knob

505072753

$2.08

990f

Shock Adjuster Knob

503193033

$7.58

990g

Allen Screw M3 X 0.5 X 10

250000644

$1.74

1010

Hex Screw M10 X 1.5 X 55

207005554

$6.18

1020

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

1030

Washer

503189564

$0.72

1200

Ball Joint

505073636

$49.97

1230

Washer

503192491

$4.38

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$7.02

1400

Upper Ball Joint

505072913

$69.97

1410

Circlip

293370035

$2.55

6000

Washer

503192496

$0.75

6001

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

6002

Ski Stopper

505072594

$17.66

6003

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
