Description

Price

10a

Fixed Flange Ass'y

417223232

$469.99

10b>10b2

Sliding Flange Ass'y | Includes 3 to 5

417223444

$459.99

10b1

Bushing

417223086

$36.99

10b2

Circlip

293370071

$4.09

10c

Lever | Includes 10f to 10g

417222671

$49.99

10d

Roller

417222947

$21.99

10e

Stopper Washer

417004302

$15.90

10f

Pin

417222594

$14.99

10f1

Threaded Pin, M6 | High Altitude

417222595

$23.49

10f2

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

10g

Cotter Pin

250400060

$2.00

10h

Lever Axle

417223164

$4.49

10j

Spring Seat

417222312

$9.59

10k

Spring, Violet/blue

415034900

$43.49

10k

Spring, Violet/pink

414949500

$41.49

10k

Spring, Blue/yellow | S-LEV&P-146

414689500

$46.49

10k

Spring, Blue/yellow | S-LEV&P-146

414689500

$46.49

10m>10m1

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99

10m1

Bushing

417009204

$17.49

10n

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

10p

Lock Washer 8 mm

250200009

$2.11

10q

Governor Cup Ass'y

417223666

$499.99

10r

Ramp 413 | Europe

417222508

$33.99

10r

Ramp 441 | High Altitude

417223098

$39.99

10s

Spring Pin M10 X 22

250400050

$2.99

10t

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

10u

Calibration Screw

417223501

$13.99

10v

Washer

417005600

$4.09

10w

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10x

O-Ring

732401030

$0.98

10z

Ring Gear_Starter This part replaces 417223739.

417225071

$239.99

10aa

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

10ab

Guard

417009205

$21.99

10ac

Serrated Hex. Flange Bolt M6

250000416

$4.23

10ad

Bushing

417223471

$8.14

20

Conical Spring Washer M14

250200144

$4.44

30

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$42.49

40

Decal English

516005503

Unavailable

50

RPM Sticker, English

516005507

$13.49

100a

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$499.99

100a>100a5

Fix Flange Ass'y | Includes 100a to 100a4

417127389

$539.99

100a1

Pulley Roller

417127016

$24.49

100a2

Pivot Stud

417127294

$14.49

100a3

Lock Washer 8 mm

250200009

$2.11

100a5

Spring Pin M3 X 30

250400063

$2.11

100b>100b2

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

100b1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100b2

Circlip

293370049

$4.99

100c>100c2

Cam Ass'y | Includes 100c to 100c3

417127325

$159.49

100c>100c2

Cam Ass'y | Includes 100c to 100c3

417127672

$159.49

100c1

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100c2

Circlip

293370049

$4.99

100d

Green, Spring

417127137

$41.49

100d

Blue Spring

417127118

$44.49

100d

Blue Spring

417127118

$44.49

100d

Black, Return Spring

417127039

$46.49

100d

Black, Return Spring

417127039

$46.49

100e

Swivel Abutment

417127116

$9.39

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100g

Calibration Ass'y

415129604

$21.49

100h

Socket Screw M5 X 25

205052544

$1.68

100j

Flat Washer M5

234051410

$0.53

100k

Elastic Stop Nut M5

232551414

$0.87

100m

Washer

417127155

$8.26

100n

Ball Bearing

504152574

$35.99

200

Drive Belt

417300531

$199.99

300

Belt Guard

417300357

$91.99

320

Safety Belt Guard Decal

516005509

Unavailable

330

Front Bracket

417300423

$7.29

340

Avex Rivet

390909200

$0.30

350

Guide

417300381

$11.99

360

CVT Air Duct Pulley

417300440

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

380

Stopper

417300445

$10.49

390

Avex Rivet

390909200

$0.30

400

Front Support

417300430

$14.49

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

420

Flat Washer

517225900

$0.18

450

Reinforcement Plate

417300421

$4.39

460

Avex Rivet

390909100

$0.30

500

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

510

Torx Screw M5 X 14

250000742

$1.47

520

Hair Pin

114045200

$11.11

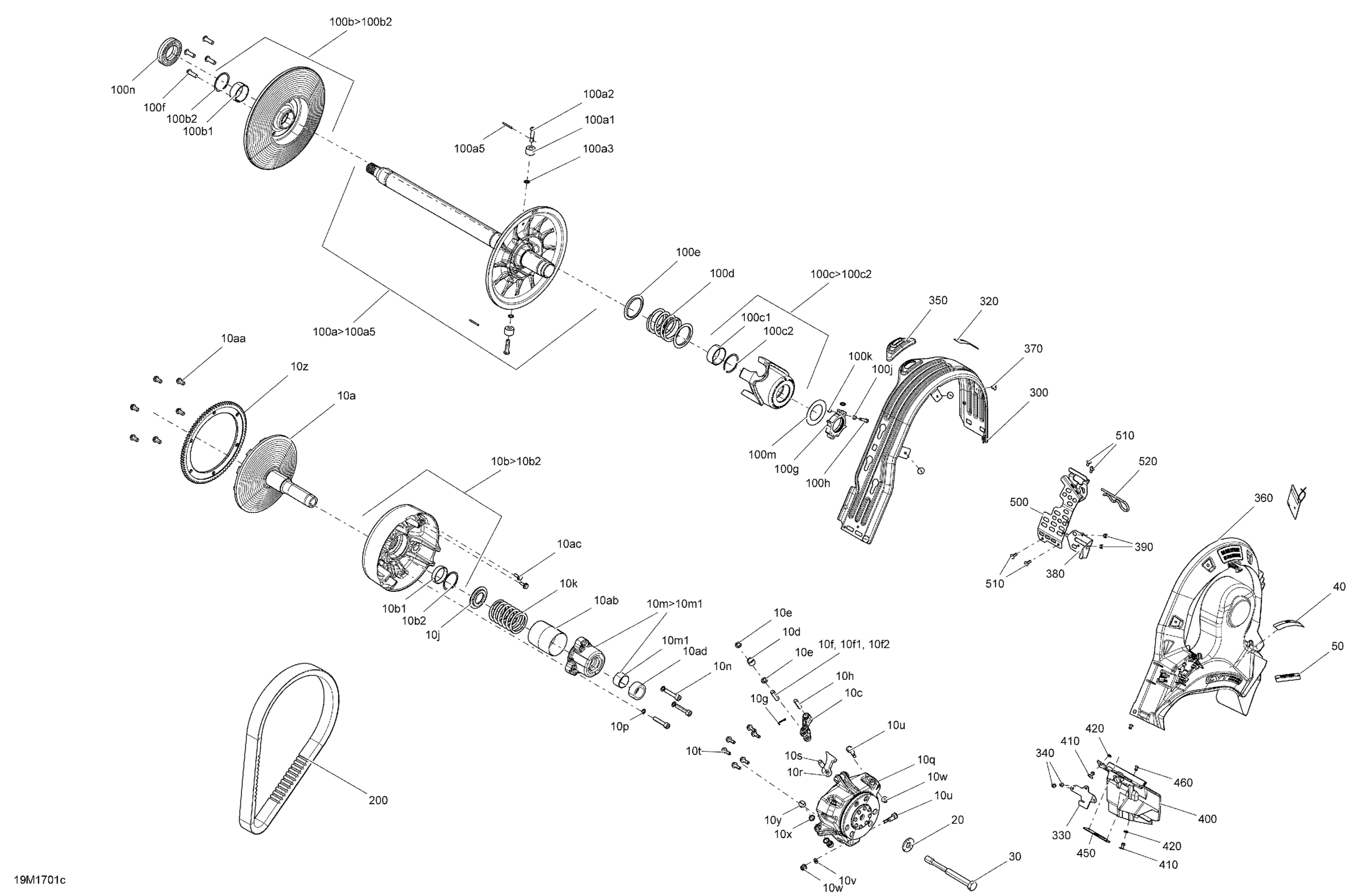

Ski-Doo FREERIDE, 2017 05- Pulley System - All Models Diagram

Fixed Flange Ass'y

Sliding Flange Ass'y | Includes 3 to 5

Bushing

Circlip

Lever | Includes 10f to 10g

Roller

Stopper Washer

Pin

Threaded Pin, M6 | High Altitude

Socket Set Screw M6 X 1.0 X 16

Cotter Pin

Lever Axle

Spring Seat

Spring, Violet/blue

Spring, Violet/pink

Spring, Blue/yellow | S-LEV&P-146

Spring, Blue/yellow | S-LEV&P-146

Spring Cover Ass'y | Includes 14 to 15

Bushing

Socket Head Screw M8 X 1.25 X 40

Lock Washer 8 mm

Governor Cup Ass'y

Ramp 413 | Europe

Ramp 441 | High Altitude

Spring Pin M10 X 22

Hex. Flange Screw M6 X 18, Scotch Grip

Calibration Screw

Washer

Hex. Flange Elastic Nut M6 x 1.0

O-Ring

Ring Gear_Starter This part replaces 417223739.

Hex. Flange Screw M8 X 1.25 X 16

Guard

Serrated Hex. Flange Bolt M6

Bushing

Conical Spring Washer M14

TRA 7 Bolt (M14 X 153.5 mm)

Decal English

RPM Sticker, English

Fix Flange Ass'y | Includes 100a to 100a4

Fix Flange Ass'y | Includes 100a to 100a4

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin M3 X 30

Sliding Flange Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Green, Spring

Blue Spring

Blue Spring

Black, Return Spring

Black, Return Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Safety Belt Guard Decal

Front Bracket

Avex Rivet

Guide

CVT Air Duct Pulley

Pop Rivet 3/16"

Stopper

Avex Rivet

Front Support

Pop Rivet 3/16" | DS 650 X

Flat Washer

Reinforcement Plate
