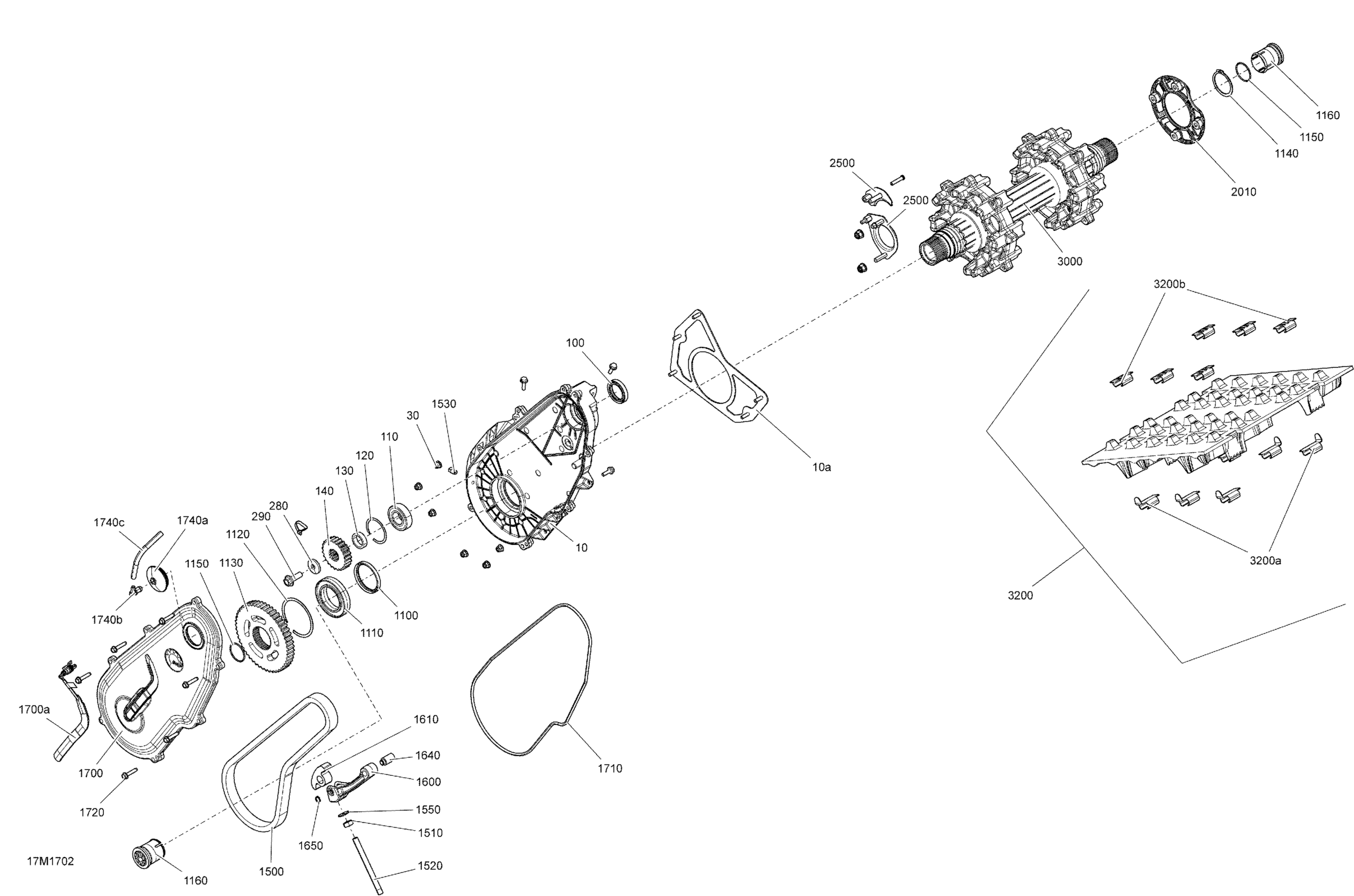

Ski-Doo FREERIDE, 2017 05- Drive System - All Models Diagram

#

Description
Price

10>10a

Chaincase | Includes 10 to 10a

504153405

$339.99

10a

Plate | Not Shown

518325816

$79.99

100

Oil Seal

293200158

$14.22

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504152628

$10.99

140

Sprocket 23 Teeth

504153911

$44.99

140

Sprocket, 21 Teeth

504096200

$93.99

140

Sprocket, 19 Teeth

504153783

$111.49

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$9.99

1130

Kit Sprocket This part replaces 504152581.

861805539

$159.99

1130

Kit Sprocket This part replaces 504152593.

861805538

$164.99

1130

Kit Sprocket This part replaces 504152971.

861805540

$159.99

1140

Circlip

504152572

$6.95

1150

O-Ring

293300122

$2.11

1160

Magnetic Cap

504152619

$23.49

1500

Drive Chain, 102 Links

504152579

$153.49

1500

Drive Chain, 104 Links

504152629

$179.99

1500

Drive Chain, 106 Links

504152630

$179.99

1500

Drive Chain, 108 Links

504152631

$153.49

1510

Hex. Nut M10 X 1.5

232006414

$1.37

1520

Adjustment Screw

504152602

$12.49

1530

Magnetic Plug 1/8 - 27 NPTF

504152854

$11.49

1550

Bonded Washer

250200100

$2.11

1600

Tensioner chain

504153429

$15.99

1610

Slider Chain

504152739

$65.99

1640

Tensioner Axle

504152841

$16.34

1650

Circlip

504152282

$3.17

1700>1700a

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$339.99

1700a

Rotation Sensor

504152896

$37.99

1710

Tight Seal

293300130

$7.51

1720

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

1740a

Cap

504152860

$20.49

1740b

Male Connector

414580700

$4.12

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

2010

Retaining Ring

504153886

$21.99

2500

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

3000

Drive Axle Ass'y

504154054

$529.99

3200>3200b

Track 16 X 146 X 2,5 | Includes 3200 to 3200b

504154403

$1.00

3200>3200b

Track Ass'y 16" X 154" X 2.50" | Includes 3200 to 3200b

504153199

$1.00

3200>3200b

Track Ass'y 16" X 137" X 2.2PSH" | TR16X137X2.2PSH

504153293

$1.00

3200>3200b

Track Ass'y 16" X 137" X 1.7" | TR16X137X1.7PSH

504153294

$1.00

3200a

Track Guide | Track Width 16''

415129528

$3.29

3200b

Cleat

504152651

$9.69
