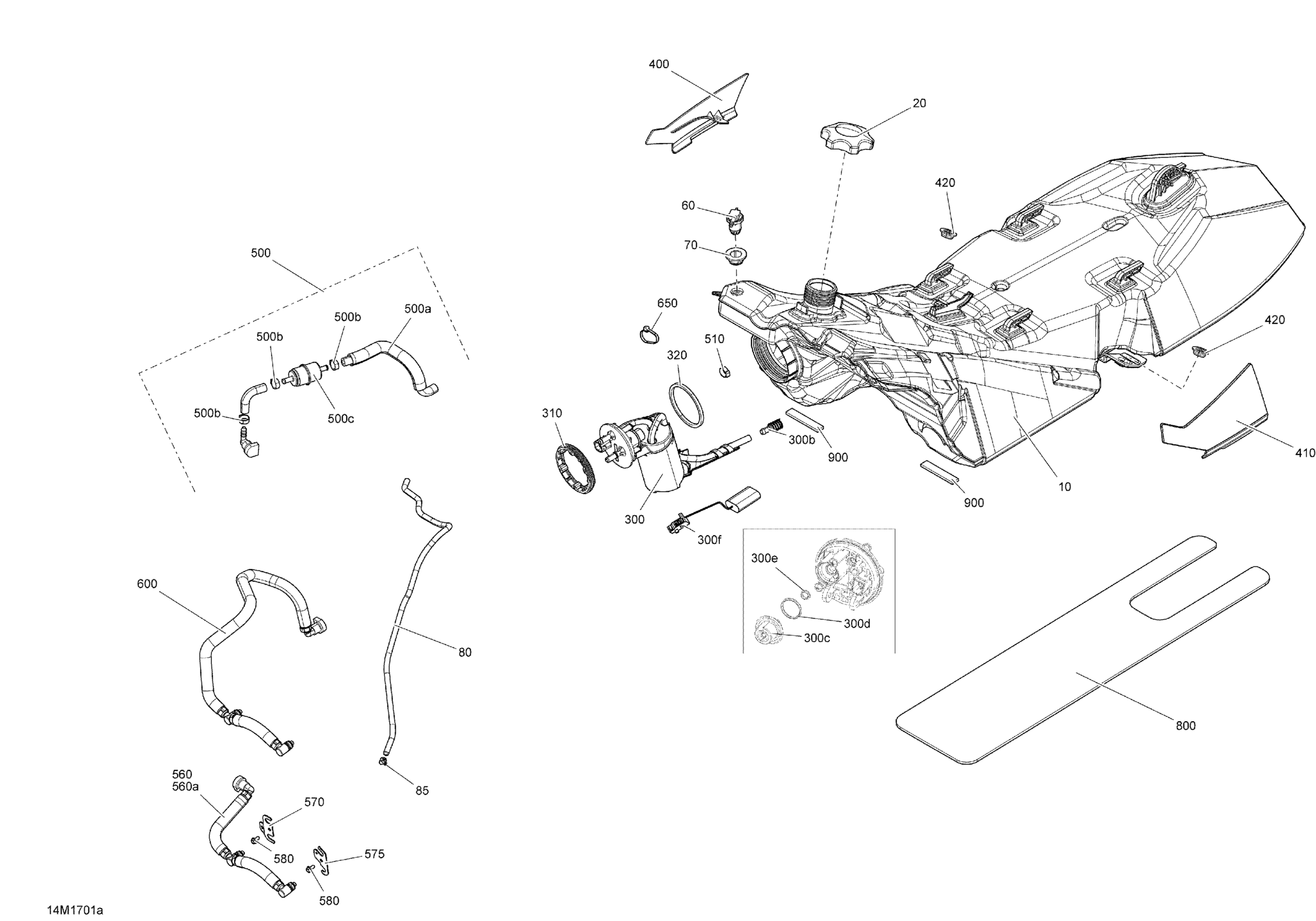

Ski-Doo FREERIDE, 2017 Fuel System - 600HO-800R E-TEC Diagram

#

Description
Price

10

Fuel Tank

513033667

$304.45

20

Fuel Tank Cap 91 Octane

513033722

$22.36

20

Fuel Tank Cap 95 Octane | Europe

513033723

$24.60

60

Check Valve

513033842

$32.81

70

Grommet

513033596

$17.88

80

Polyurethane Hose 10000Mm Long

219704410

$52.96

85

Spring Clamp

414554800

$0.81

300>300f

PUMP FUEL | Includes 300 to 300f This part replaces 513033837.

513034258

Unavailable

300a

Fuel Filter

415129451

$23.10

300b

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

300c

Regulator

415129821

$73.85

300d

O-Ring

415129822

$17.88

300e

O-Ring

415129823

$17.88

300f

Fuel Level Sensor

415130108

$136.54

310

Ring

513033180

$17.13

320

Gasket

513033334

$22.36

400

RH Cap

513033418

$12.24

410

LH Cap

513033419

$12.24

420

Shoulder Bushing

513033326

$12.24

500>500c

Hose Ass'y | Includes 500 to 500b This part replaces 513033846.

513034137

$77.58

500a

Locking Clip

513033135

$4.96

500b

Oetiker Clamp

293650125

$3.09

500c

Fuel Filter

513034047

$35.99

510

Crimp Clamp

293650053

$2.78

560>560a

Hose Ass'y | Includes 22 to 23

513033594

$79.07

560a

Locking Clip

513033135

$4.96

570

Bracket

513033542

$12.24

575

Bracket

513033593

$15.64

580

Hex. Flange Screw M5 X 10

207551044

$3.88

600

Fuel Hose Ass'y

513033648

$117.88

650

Tie-Rap 180 mm

414115200

$0.10

800

Insulating Foam

513033588

$12.24

900

Gasket

513033813

$3.19
