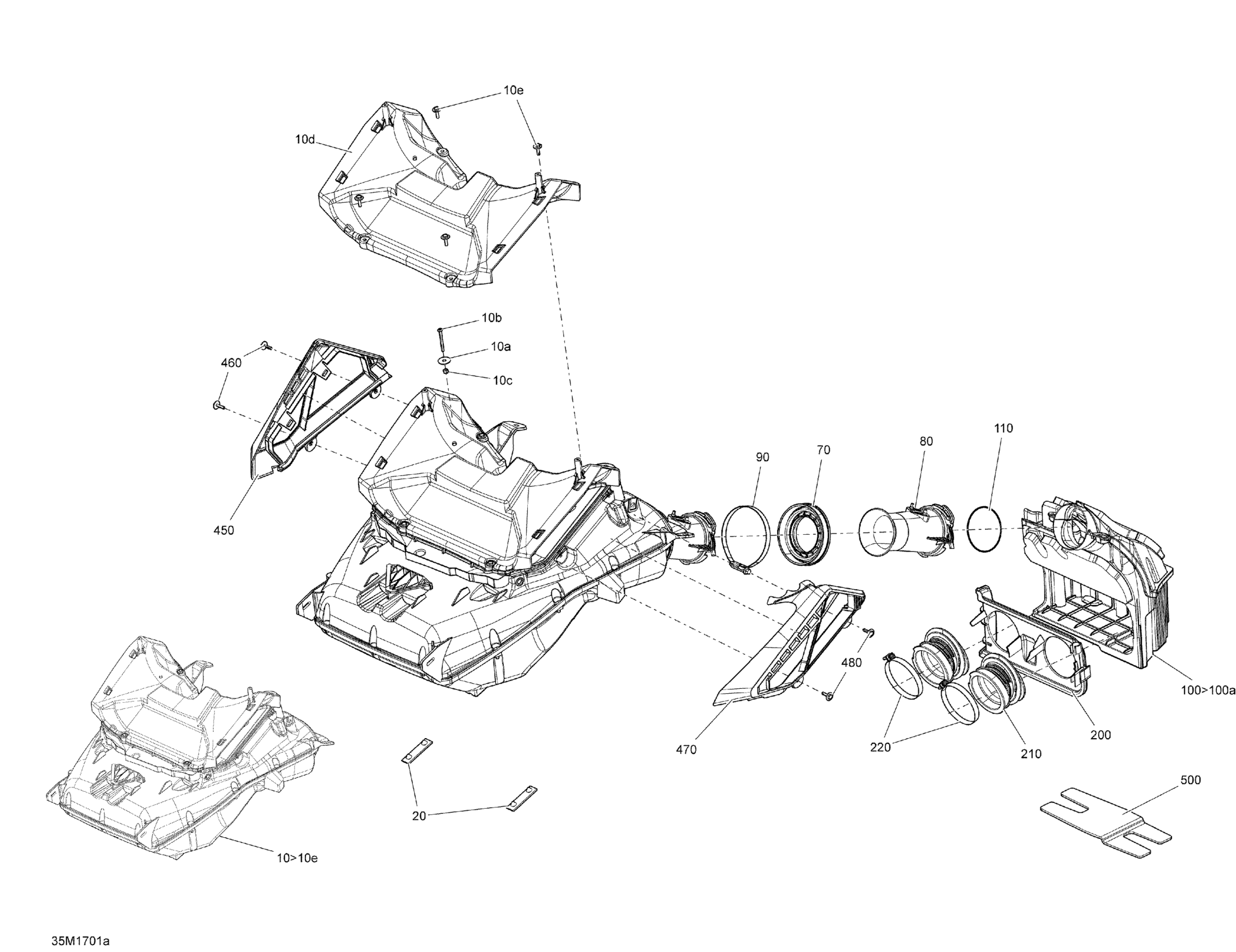

Ski-Doo FREERIDE, 2017 Air Intake System - All Models Diagram

Description

Price

Secondary Chamber Ass'y | Includes 10 to 10e

508000722

$150.72

10a

Flat Washer

224060201

$1.12

10b

Socket Head Screw M4 X 40

205444056

$2.00

10c

Elastic Stop Nut M4

232541414

$0.55

10d

Air Duct

508000732

$44.00

10e

Screw M4 X 16

250000725

$3.30

Stopper

508000744

$2.01

Boot

508000567

$16.39

Flute

508000662

$13.24

Norma Clamp

514052924

$12.15

100

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$79.07

100a

Notice Decal, Air Intake Silencer

516005876

$4.00

110

O-Ring

293300115

$3.01

200

Plate Adapter

508000613

$17.88

210

Air Intake Adapter

508000614

$17.88

220

Gemi Clamp

508000346

$9.03

450

RH Air Filter

508000730

$39.52

460

Screw M4 X 16

250000725

$3.30

470

LH Air Filter

508000731

$39.52

480

Screw M4 X 16

250000725

$3.30

500

Insulated Foam

508000739

$8.13
