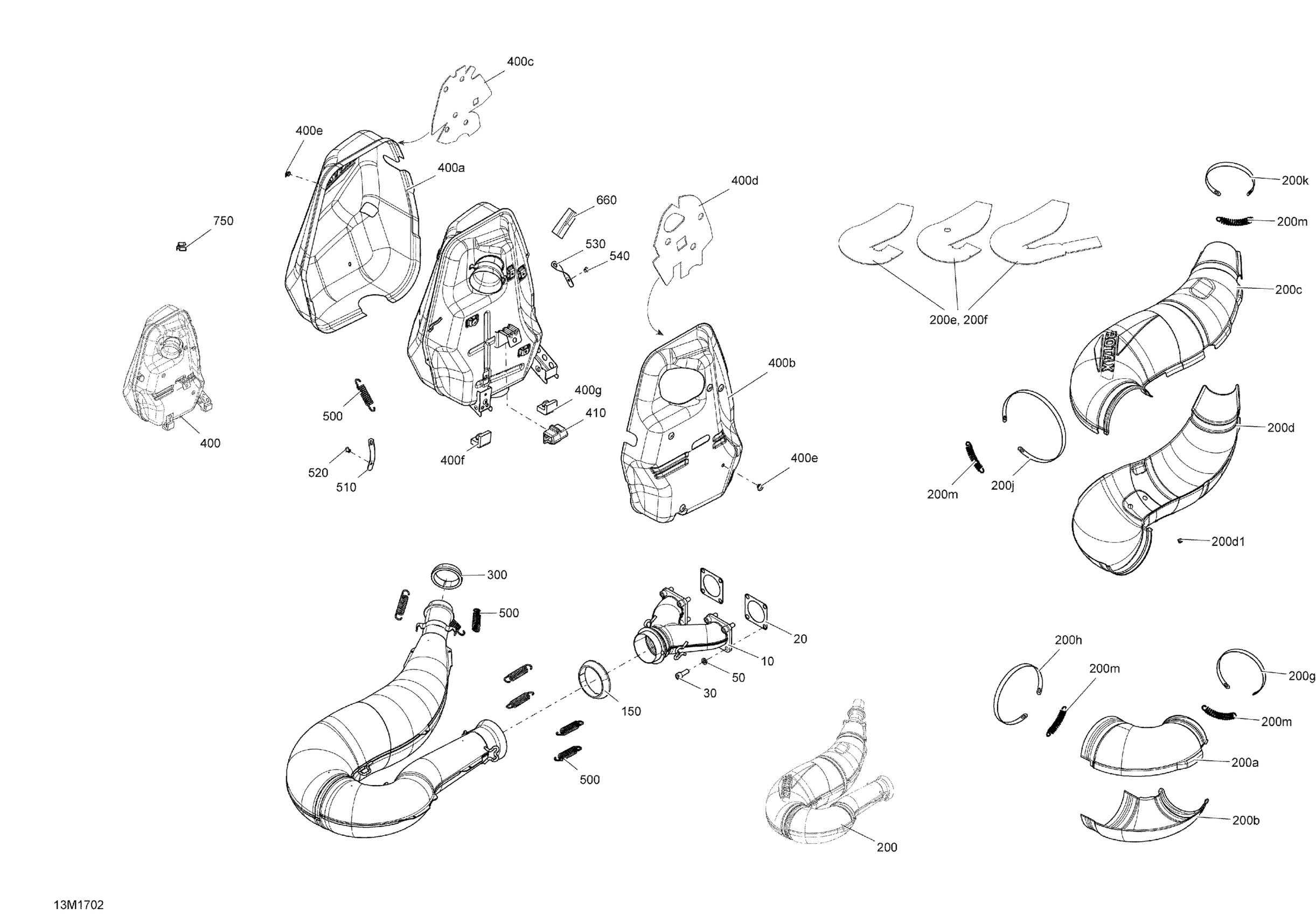

Ski-Doo FREERIDE, 2017 Exhaust System - All Models Diagram

#

Description
Price

10

Exhaust Manifold This part replaces 420673373.

420673374

$279.97

20

Gasket

420430482

$8.23

30

Socket Head Screw M8 X 22

250000414

$2.06

50

Washer

250200111

$1.74

150

Exhaust Gasket

514053487

$26.12

200>200m

Exhaust Tuned Pipe | Includes 200 to 200m

514055062

$664.58

200a

Front Upper Half Enveloppe

514054992

$38.43

200b

Front Lower Half Enveloppe

514054993

$38.43

200c

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

Unavailable

200d>200d1

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

200d1

Henrob Rivet

293150091

$0.75

200e

Insulating Wool

514054487

$19.20

200f

INSULATING WOOL - Call your local BRP dealership

514054553

Unavailable

200g

Retaining Strap

514054408

$10.55

200h

Retaining Strap

514054409

$10.55

200j

Retaining Strap

514054410

$10.55

200k

Retaining Strap

514053499

$8.35

200m

Spring

514053643

$6.20

300

Exhaust Gasket

514054174

$27.66

400>400g

Muffler Ass'y | Includes 400 to 400g

514055083

$738.43

400a

RH DEFLECTOR - Call your local BRP dealership

514054986

$49.20

400b

LH Deflector

514054967

$54.58

400c

RH Insulating Wool

514054711

$18.43

400d

LH Insulating Wool

514054299

$19.20

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Lower Stopper

514054274

$19.20

400g

Lower Stopper

514054496

$26.12

410

Upper Stopper

514054606

$14.92

500

Spring

415107100

$6.20

510

Spring Bracket, 5mm hole

514054974

$6.28

520

Stavex Rivet

293150144

$0.77

530

Spring Bracket, 5mm hole

514054974

$6.28

540

Avex Rivet

390909200

$0.29

660

Heat Shield (Rectangle)

514054987

Unavailable

750

Clip

414227300

$1.45
