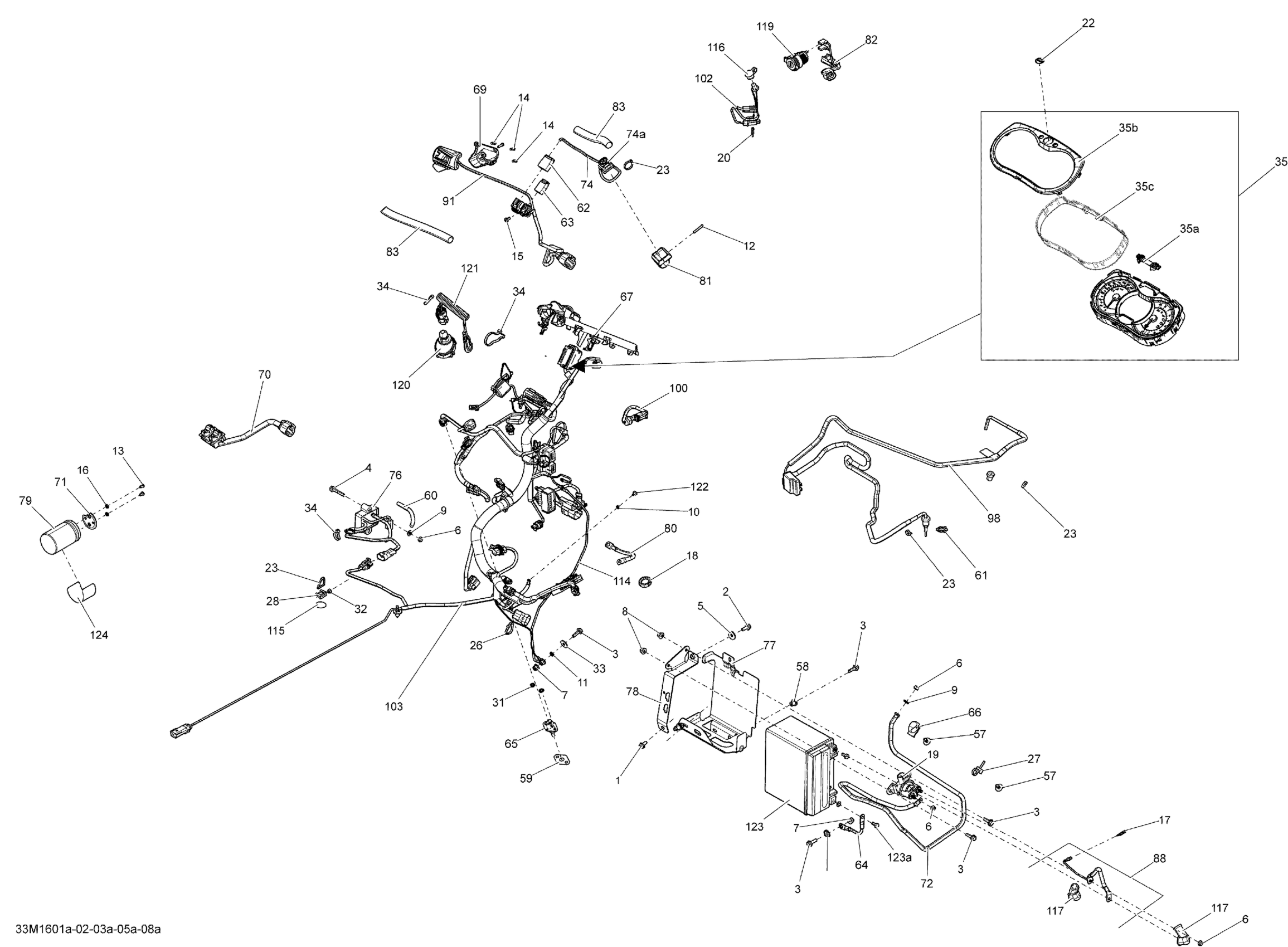

Ski-Doo FREERIDE, 2016 10- Electrical System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

207661244

$2.11

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 35

207663544

$0.90

5

Flat Washer

224061201

$1.37

6

Elastic Stop Nut M6

232561414

$0.55

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Elastic Flange Nut M6 X 1.0

233261416

$2.11

9

Flat Washer 6 mm

234061410

$1.36

10

Lock Washer 4 mm

234141601

$1.15

11

External Serrated Lock Washer 6 mm

234461608

$1.15

12

Torx Screw #8-18

250000263

$1.04

13

Socket Head Screw M10 X 32

250000462

$2.11

14

Torx Screw

250000671

$1.01

15

Pan Screw Forming, 7500C

250000690

$2.11

16

Lock washer | Quest XT 650.

250200026

$1.90

17

Fuse, 25 Amperes

278001443

$3.28

18

Safety Nut (DESS Switch)

278002963

$3.28

19

Starter Relay

278003012

$42.49

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

23

Tie Wrap 142 mm

293750002

$1.25

26

Tie Wrap 368 mm

293750008

$1.04

27

Tie-Rap 173 mm

293750009

$1.04

28

Tie Rap Mount (screwable)

515176795

$5.39

31

Push Nut

389804300

$0.53

32

Avex Rivet

390909200

$0.30

33

Flat Washer

250200082

$0.42

34

Tie-Rap 180 mm

414115200

$0.11

35

Speedometer | Includes 10 to 10c

515177910

$659.99

35a

Speedometer Button | XTP

415129355

$15.80

35b

Gauge Ring

415129348

$13.99

35c

Lens | XTP

415129349

$24.49

57

Black, Dart

414644300

$0.98

58

Insert

293450275

$12.99

59

Seal

508000769

$6.39

60

Tubing 6 Mm 3000Mm Long

219704425

$13.75

61

Tab Lock

514055100

$8.45

62

Male Terminal Housing, 6 Circuits

515175662

$8.79

63

Male Terminal Housing, 4 Circuits

515175846

$8.79

64

Ground Wire

515176358

$27.99

65

Air Temperature Sensor

515176366

$19.99

66

Clip

515177066

$4.29

67

Connector Plate

515177134

$17.30

69

LH Switch Housing Plate

515177149

$18.49

70

Double Switch Module

515177154

$77.49

71

Cap

515177193

$4.69

72

Battery/Starter Wire

515177208

$30.99

74

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

74a

Male Terminal

515175232

$1.58

76

Compressor Module

515177234

$409.99

77

Battery Support

515177264

$31.99

78

Battery Strip

515177266

$19.99

79

Capacitor

515177272

$90.99

80

Ground Wire

515177289

$26.99

81

Emergency Stop Switch Support

515177310

$9.19

82

12 Volts Outlet Harness

515177400

$33.99

83

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

88

Fuse Battery Wire

515177576

$16.63

91

LH Switch Housing

515178305

$249.99

98

Dual Thermocouple Module This part replaces 515177758.

415129998

$269.99

100

Temperature Sensor This part replaces 420664508.

420664509

$149.99

102

Visor Harness

515177837

$33.99

103

Main Harness

515177984

$379.99

103

Main Harness | Includes 1 To VSS

515177985

$539.99

114

Ground Wire

515178052

$27.99

115

Adhesive Patch

518325560

$4.69

116

Cap

572103300

$10.49

117

Protector Cap

710000495

$10.99

119

DC Outlet

710001248

$37.99

120

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

121

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

122

Screw-Torx Button Head M4 X 8

250000741

$1.15

123

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

123a

Battery Bolt Kit

250000282

$7.29

124

Capacitor Decal

516006206

$1.19
