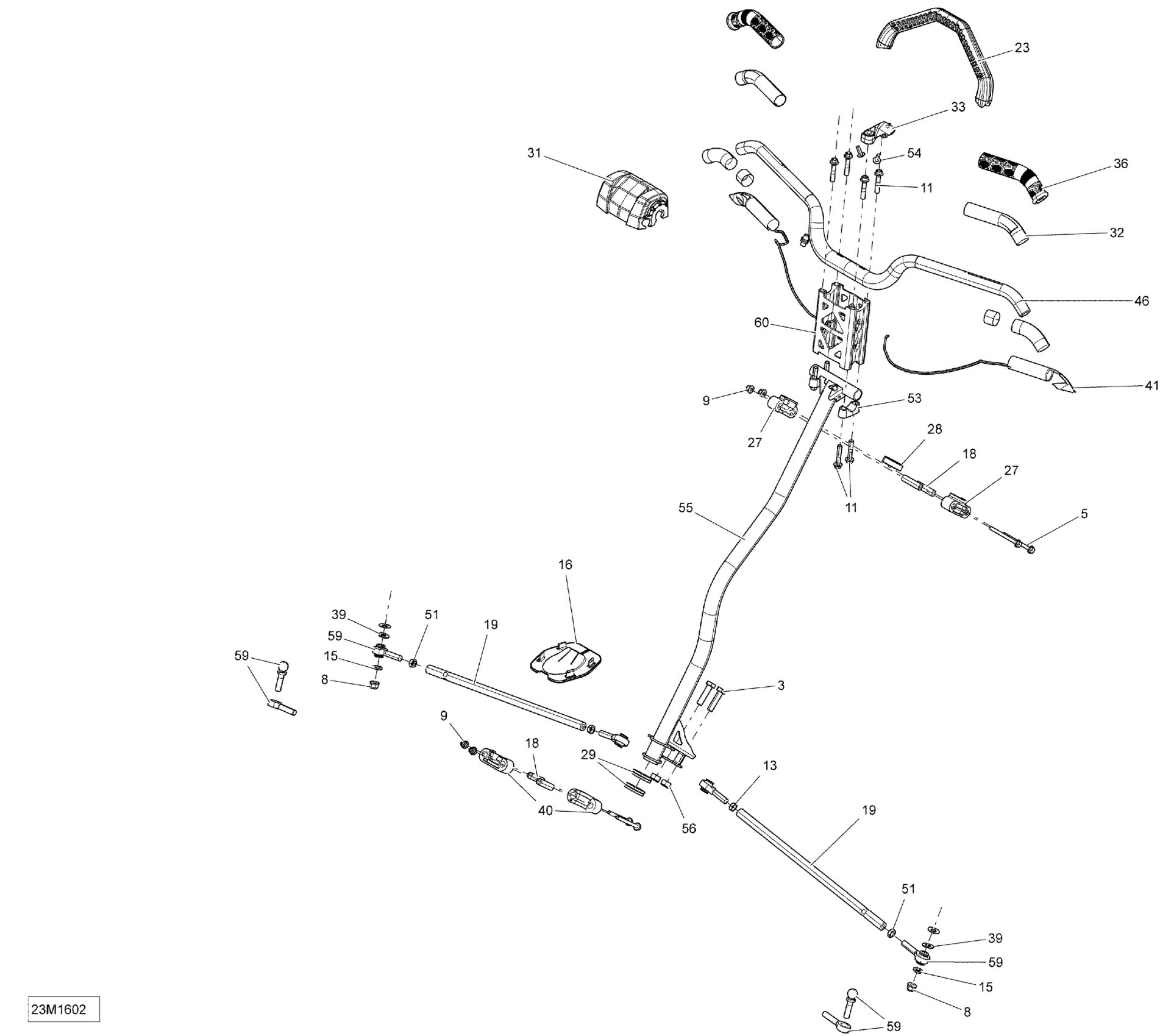

Ski-Doo FREERIDE, 2016 Steering Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

5

Hex. Flange Screw M6 X 70

207667056

$3.61

5

Hex. Flange Screw M6 X 70

207667056

$3.61

5

Hex. Flange Screw M6 X 70

207667056

$3.61

5

Hex. Flange Screw M6 X 70

207667056

$3.61

8

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

9

Elastic Flange Nut M6 X 1.0

233261416

$1.74

11

Hex. Flange Screw M8 X 40

250000352

$3.26

11

Hex. Flange Screw M8 X 40

250000352

$3.26

13

LH Threaded Hex. Jam Nut M10

250100016

$0.72

15

Washer

503192496

$0.75

16

Plate

506152163

$10.23

18

Housing Bushing

506152297

$10.23

18

Housing Bushing

506152297

$10.23

18

Housing Bushing

506152297

$10.23

18

Housing Bushing

506152297

$10.23

19

Tie-Rod

506152498

$36.89

23

Moulding Strap

506152460

$69.99

27

Upper Half-Housing

506152508

$7.40

28

Upper Anti-Vibration Gasket

506152509

$4.52

29

Lower Vibration Ring

506152518

$4.52

31

Steering Pad | Package Extreme

506152717

$72.28

32

Thermal Insulation

506153176

$5.71

33

Steering Support

506152555

$35.35

33

Steering Support

506152556

$35.35

36

Grip 148mm

506152560

$16.12

39

Washer

506152582

$4.42

40

Lower Half-Housing | Package XRS

506152588

$9.98

41

Heating Element 32 Watt 3 Wires

506152798

$49.20

46

Manta Green Handle Bar

506152802

$114.99

51

RH Threaded Hex. Jam Nut M10

732610010

$0.72

53

Steering Support | Model-Extreme

548873704

$12.69

53

Steering Support | Includes 40 to 40a

506152751

$10.09

54

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

55

Steering Column

506152962

$189.20

56

Elastic Locking Nut M10

233601466

$1.74

59

LH Thread Ball Joint

506152081

$39.97

59

RH Threaded Ball Joint

506152684

$42.28

60

Handlebar Extension | Includes 400 to 400a

506152806

$139.97
