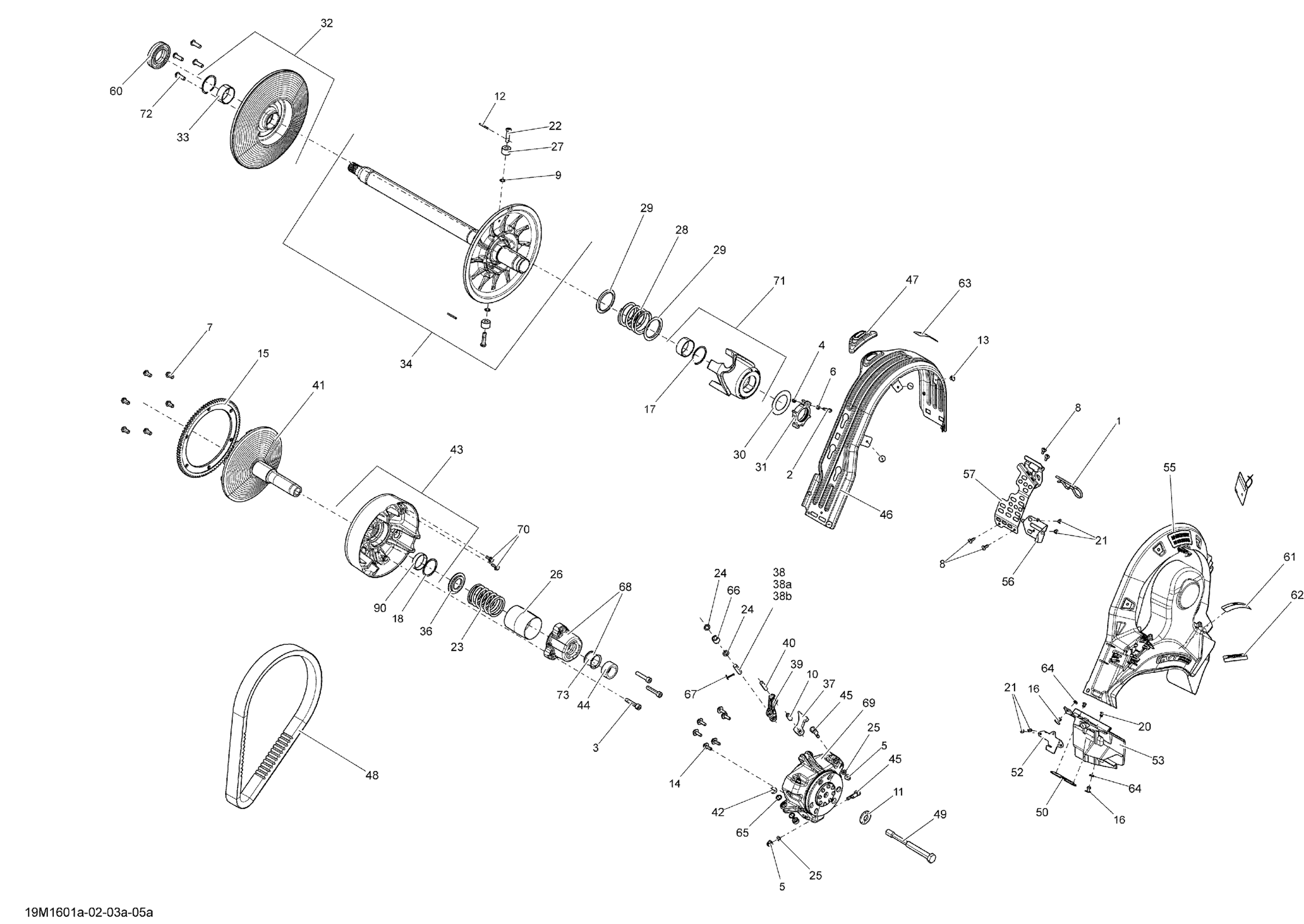

Ski-Doo FREERIDE, 2016 05- Pulley System Diagram

#

Description
Price

1

Hair Pin

114045200

$11.11

2

Socket Screw M5 X 25

205052544

$1.68

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

4

Elastic Stop Nut M5

232551414

$0.87

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Flat Washer M5

234051410

$0.53

7

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

8

Torx Screw M5 X 14

250000742

$1.47

9

Lock Washer 8 mm

250200009

$2.11

10

Spring Pin M10 X 22

250400050

$2.99

11

Conical Spring Washer M14

250200144

$4.44

12

Spring Pin M3 X 30

250400063

$2.11

13

Pop Rivet 3/16"

293150103

$0.55

14

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

15

Ring Gear_Starter This part replaces 417223739.

417225071

$239.99

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Circlip

293370049

$4.99

18

Circlip

293370071

$4.09

20

Avex Rivet

390909100

$0.30

21

Avex Rivet

390909200

$0.30

22

Pivot Stud

417127294

$14.49

23

Spring, Violet/blue

415034900

$43.49

23

Spring, Violet/pink

414949500

$41.49

23

Spring, Blue/yellow | S-LEV&P-146

414689500

$46.49

24

Stopper Washer

417004302

$15.90

25

Washer

417005600

$4.09

26

Guard

417009205

$21.99

27

Pulley Roller

417127016

$24.49

28

Green, Spring

417127137

$41.49

28

Blue Spring

417127118

$44.49

28

Black, Return Spring

417127039

$46.49

29

Swivel Abutment

417127116

$9.39

30

Washer

417127155

$8.26

31

Calibration Ass'y

415129604

$21.49

32

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

33

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

34

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$499.99

34

Fix Flange Ass'y | Includes 100a to 100a4

417127389

$539.99

36

Spring Seat

417222312

$9.59

37

Ramp 413 | Europe

417222508

$33.99

37

Ramp 441 | High Altitude

417223098

$39.99

37

Ramp 441 | High Altitude

417223098

$39.99

37

Ramp 413 | Europe

417222508

$33.99

37

Ramp 413 | Europe

417222508

$33.99

38

Pin

417222594

$14.99

38a

Threaded Pin, M6 | High Altitude

417222595

$23.49

38b

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

39

Lever | Includes 10f to 10g

417222671

$49.99

40

Lever Axle

417223164

$4.49

41

Fixed Flange Ass'y

417223232

$469.99

42

Slider Shoe

417223271

$8.26

43

Sliding Flange Ass'y | Includes 3 to 5

417223444

$459.99

44

Bushing

417223471

$8.14

45

Calibration Screw

417223501

$13.99

46

Belt Guard

417300357

$91.99

47

Guide

417300381

$11.99

48

Drive Belt

417300531

$199.99

49

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$42.49

50

Reinforcement Plate

417300421

$4.39

52

Front Bracket

417300423

$7.29

53

Front Support

417300430

$14.49

55

CVT Air Duct Pulley

417300440

$28.99

56

Stopper

417300445

$10.49

57

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

60

Ball Bearing

504152574

$35.99

61

Decal English

516005503

Unavailable

62

RPM Sticker, English

516005507

$13.49

63

Safety Belt Guard Decal

516005509

Unavailable

64

Flat Washer

517225900

$0.18

65

O-Ring

732401030

$0.98

66

Roller

417222947

$21.99

67

Cotter Pin

250400060

$2.00

68

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99

69

Governor Cup Ass'y

417223666

$499.99

70

Serrated Hex. Flange Bolt M6

250000416

$4.23

71

Cam Ass'y | Includes 100c to 100c3

417127325

$159.49

71

Cam Ass'y | Includes 100c to 100c3

417127672

$159.49

72

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

73

Bushing

417009204

$17.49

90

Bushing

417223086

$36.99
